Home › Toyota › 2009 › Matrix S, AWD › Repair and Diagnosis › Transmission › Automatic Transmission - U140F › Oil Pump › Components

Oil Pump: Components

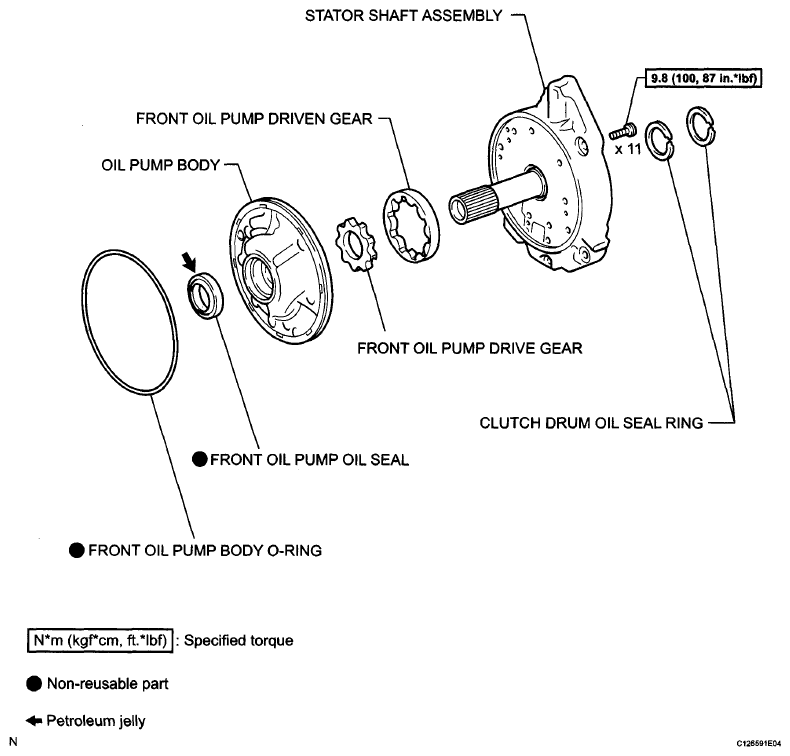

Fig 1: Oil Pump Replacement Components With Torque Specifications
G06043626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
