Parts Location

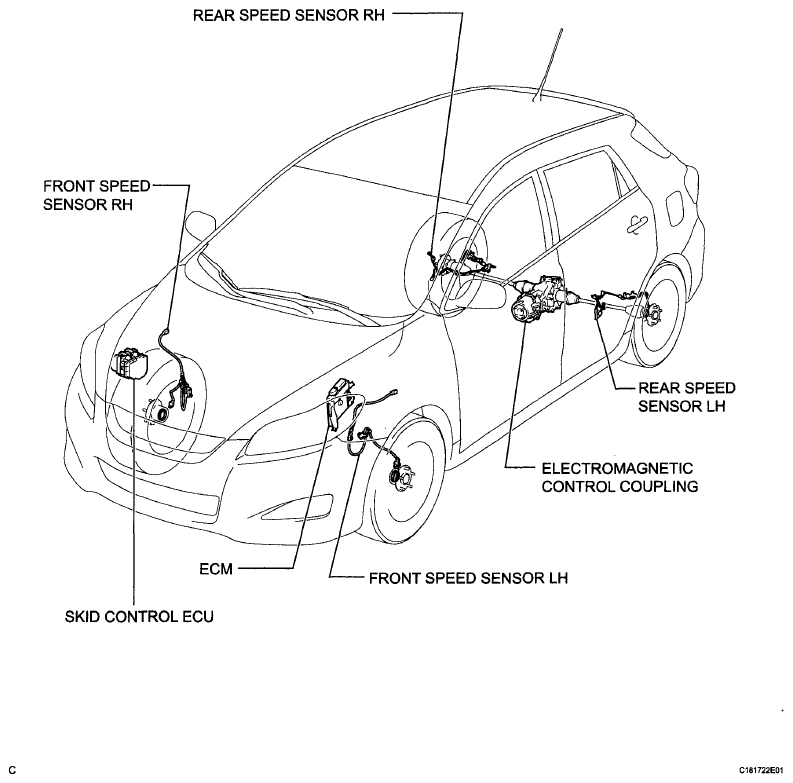

Fig 1: Identifying Active Torque Control 4WD System Parts Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

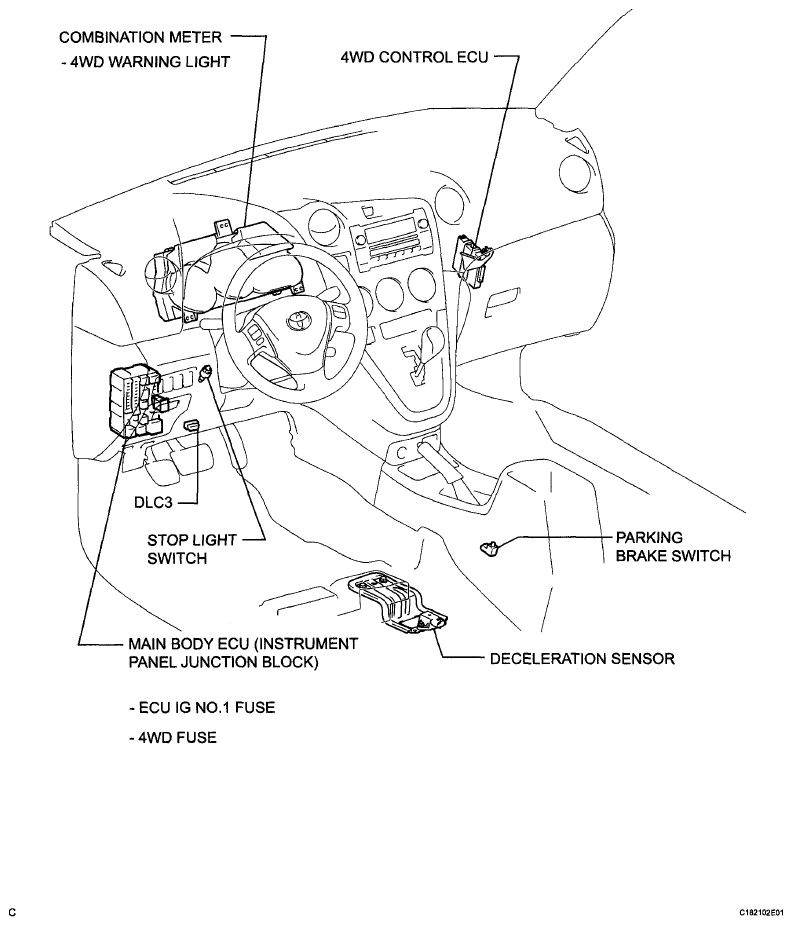

Fig 2: Identifying Active Torque Control 4WD System Parts Location (2 Of 2)
