Section 12 (Charging System (2ZR-FE))
›
Charging System
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

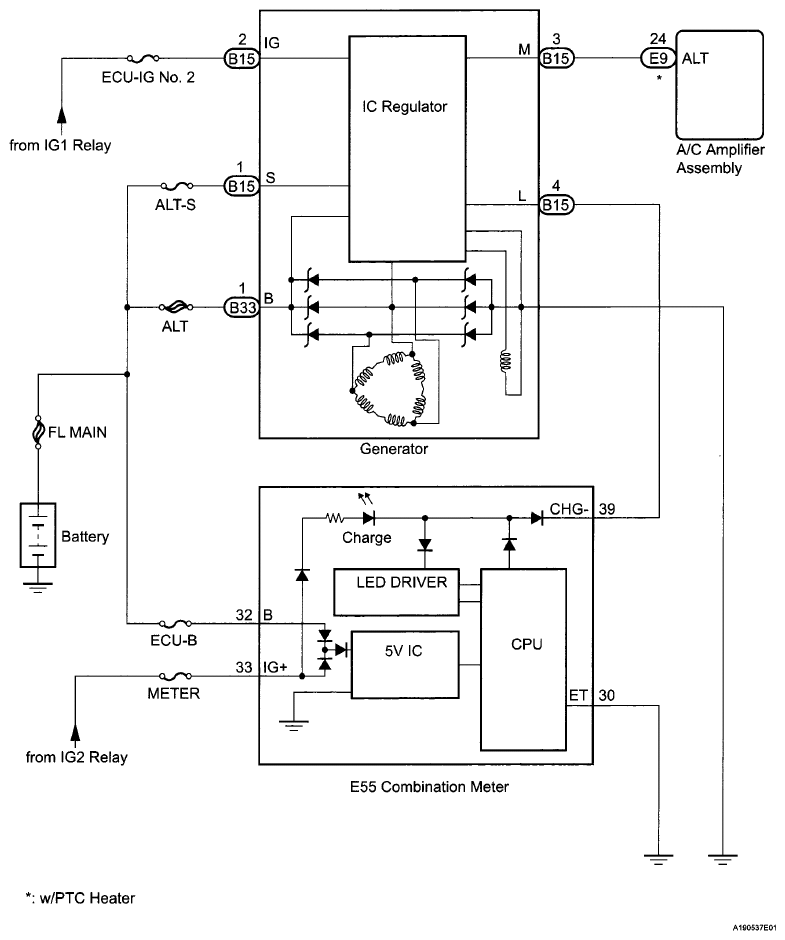

Fig 1: Charging System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
