Section 4 (Starting System (2ZR-FE)): Starter: Components

WARNING: This page is about a different variant/trim than selected.

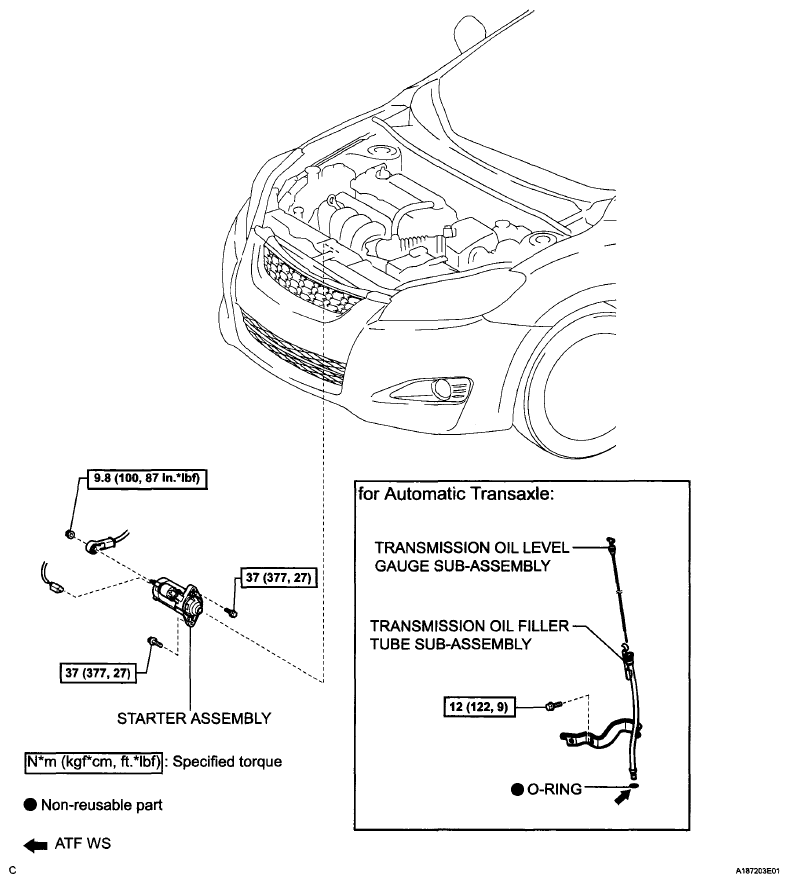

Fig 1: Starter Replacement Components With Torque Specifications
G06042963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

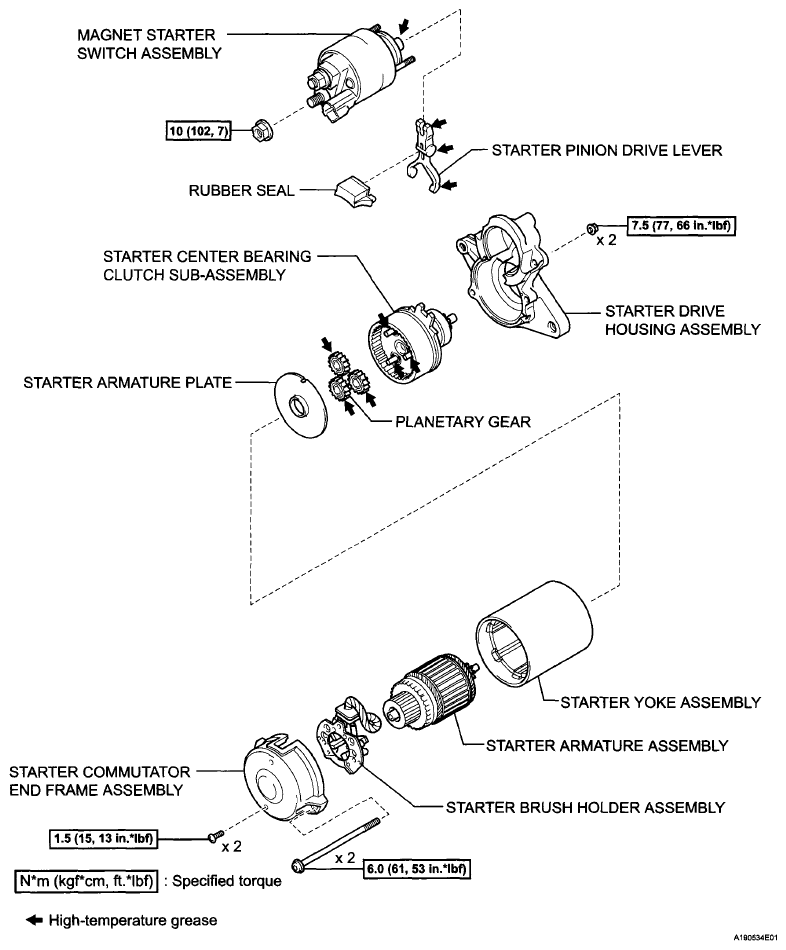

Fig 2: Exploded View Of Starter With Torque Specifications
G06042964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
