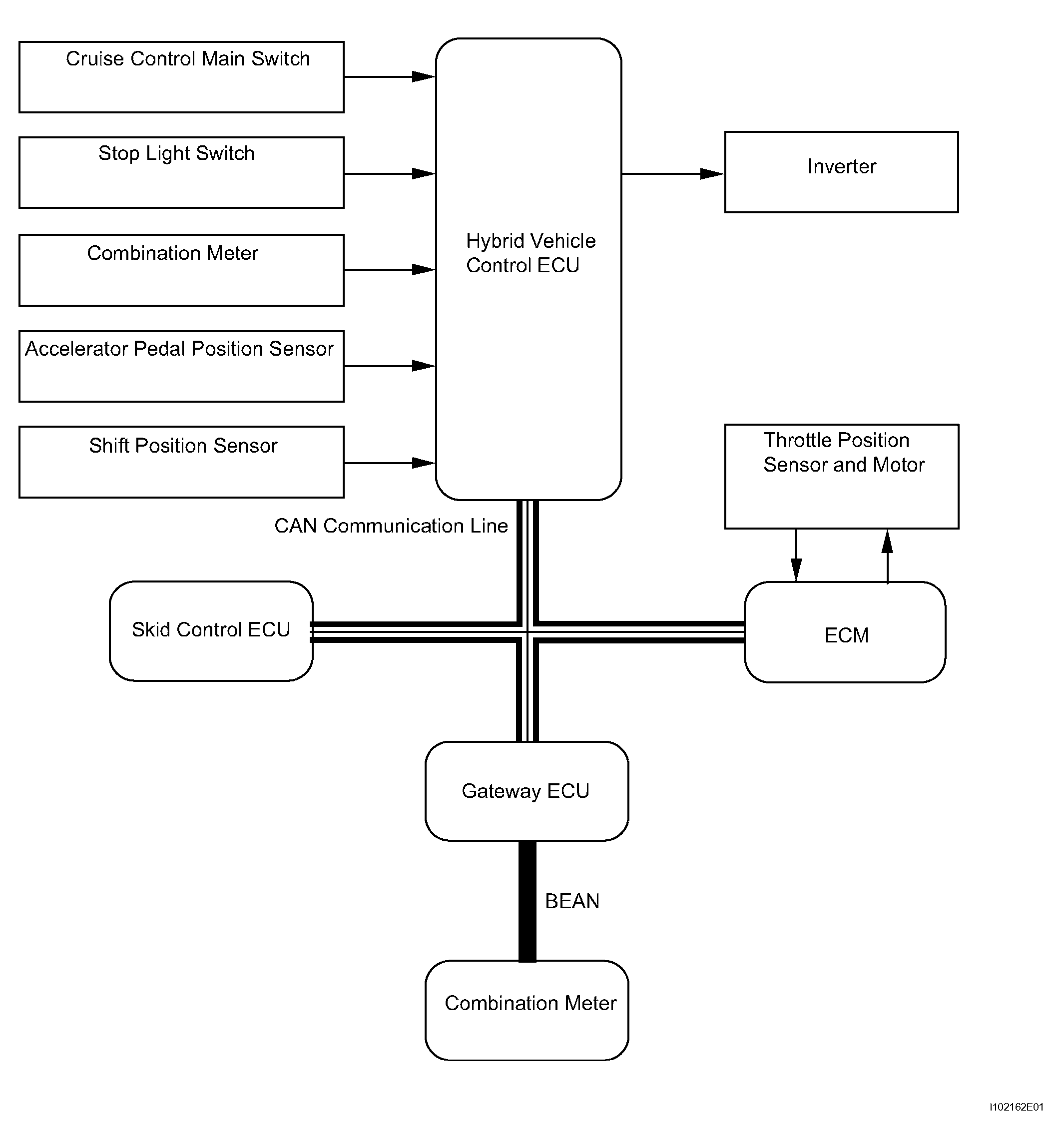

System Diagram
Communication method
COMMUNICATION METHOD CHART
| Transmitting ECU | Receiver | Signals | Communication Method |
|---|---|---|---|
| Hybrid Vehicle Control ECU | ECM | Engine torque demand signal | CAN |
| Combination Meter |
|
|
|
| Skid Control ECU | Hybrid Vehicle Control ECU | Cruise control cancel signal | CAN |
