Prius Base
›
Repair and Diagnosis
›
Accessories & Equipment
›
Infotainment
›
Navigation
›
Navigation System
›
Parts Location
Parts Location

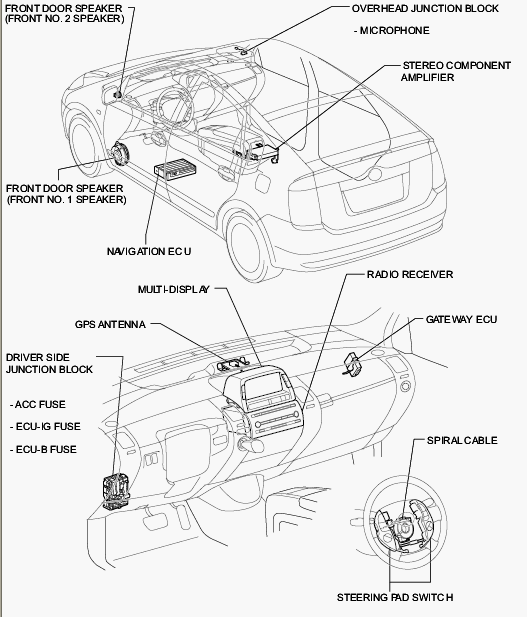

Fig 1: Navigation System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Navigation System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
