Front Fog Light: Notes

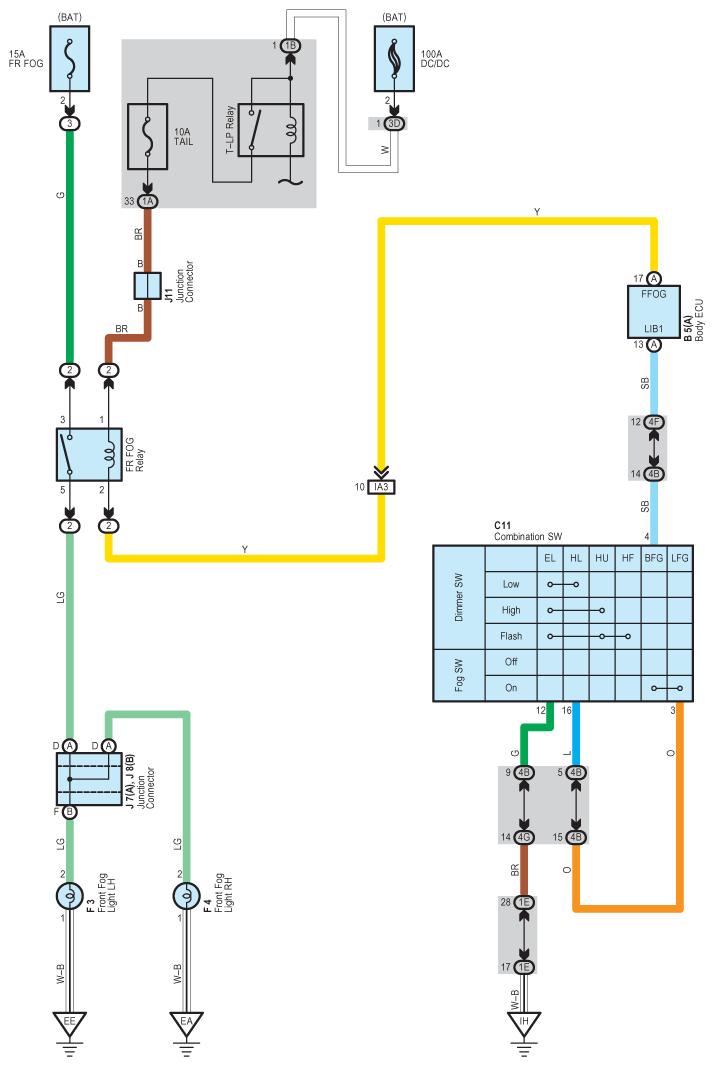

Fig 1: Front Fog Light - Circuit Diagram

G07610977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
