Radiator Fan and Condenser Fan: Notes

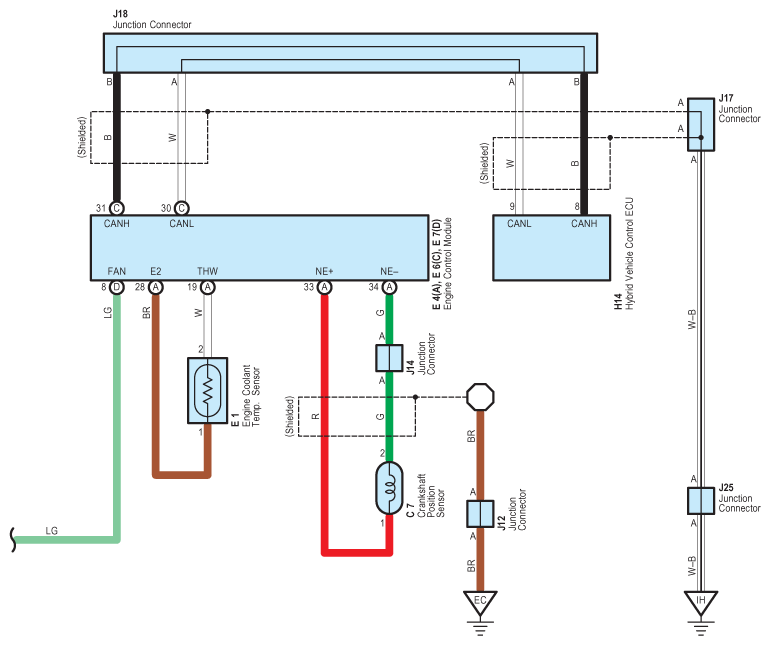

Fig 1: Radiator Fan And Condenser Fan - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

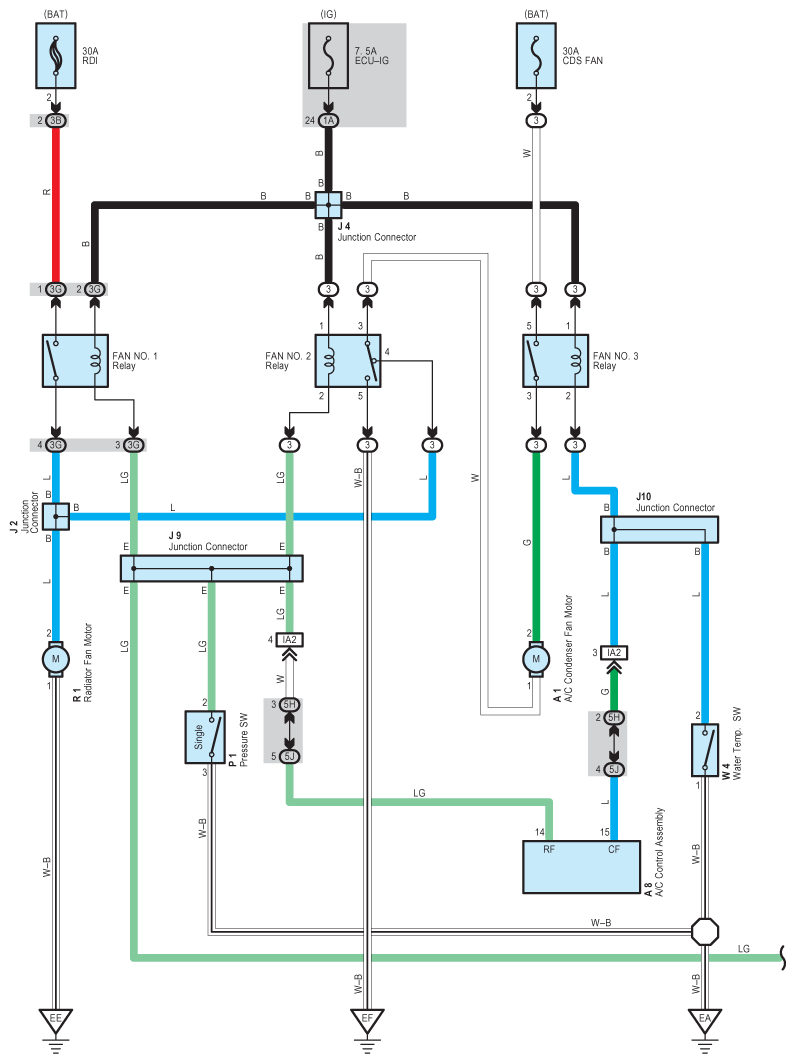

Fig 2: Radiator Fan And Condenser Fan - Circuit Diagram (2 Of 2)
