Seat Beat Warning: Notes

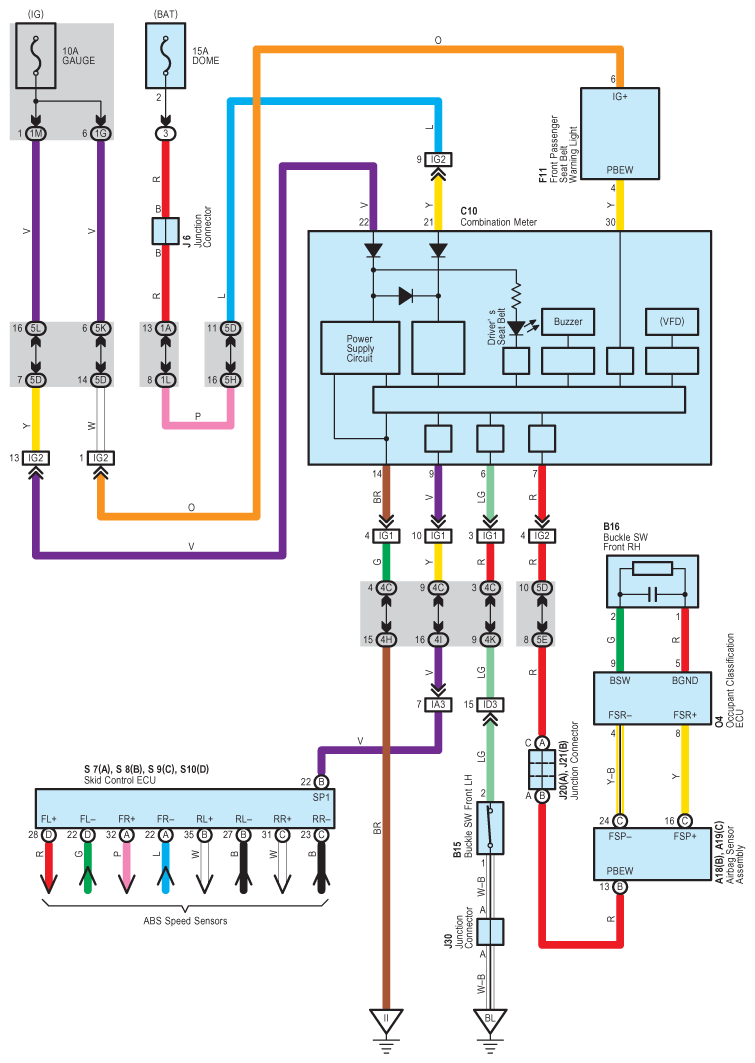

Fig 1: Seat Beat Warning - Circuit Diagram
G07610996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
