DTC P0335 Crankshaft Position Sensor "A" Circuit
›
Wiring Diagram
DTC P0335 Crankshaft Position Sensor "A" Circuit: Wiring Diagram

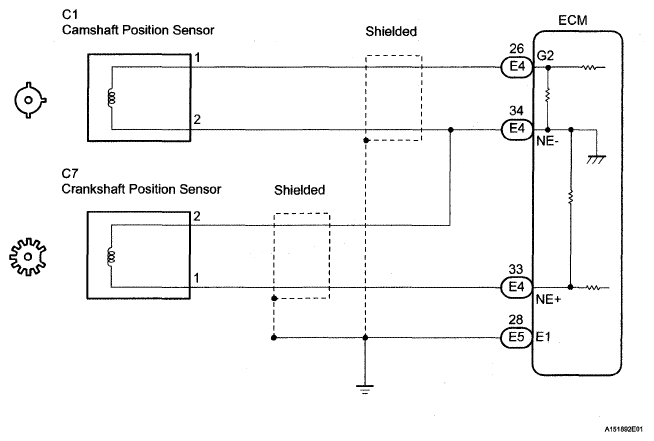

Fig 1: Crankshaft Position Sensor And ECM - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
