System Main Resistor: Components

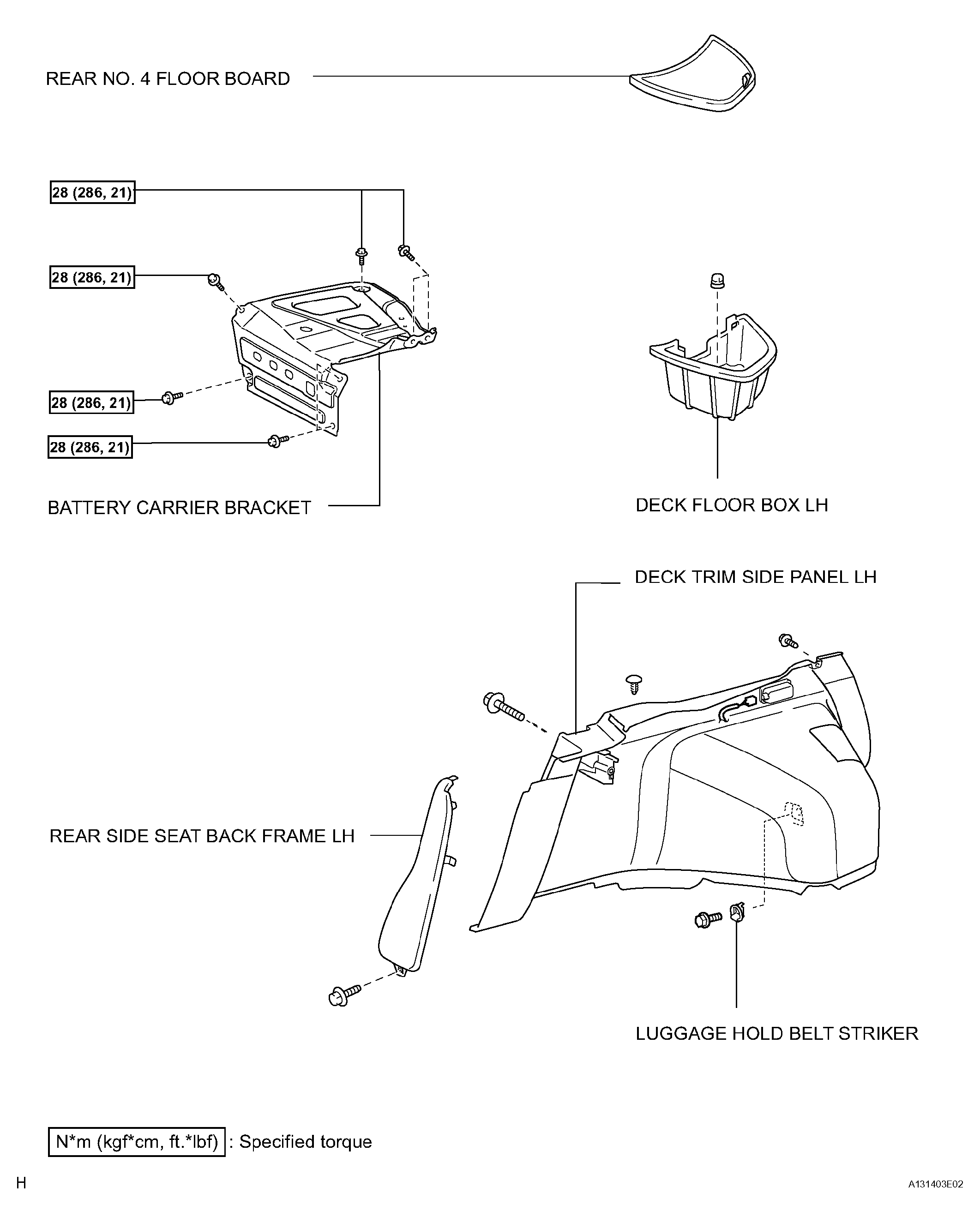

Fig 1: Identifying System Main Resistor Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

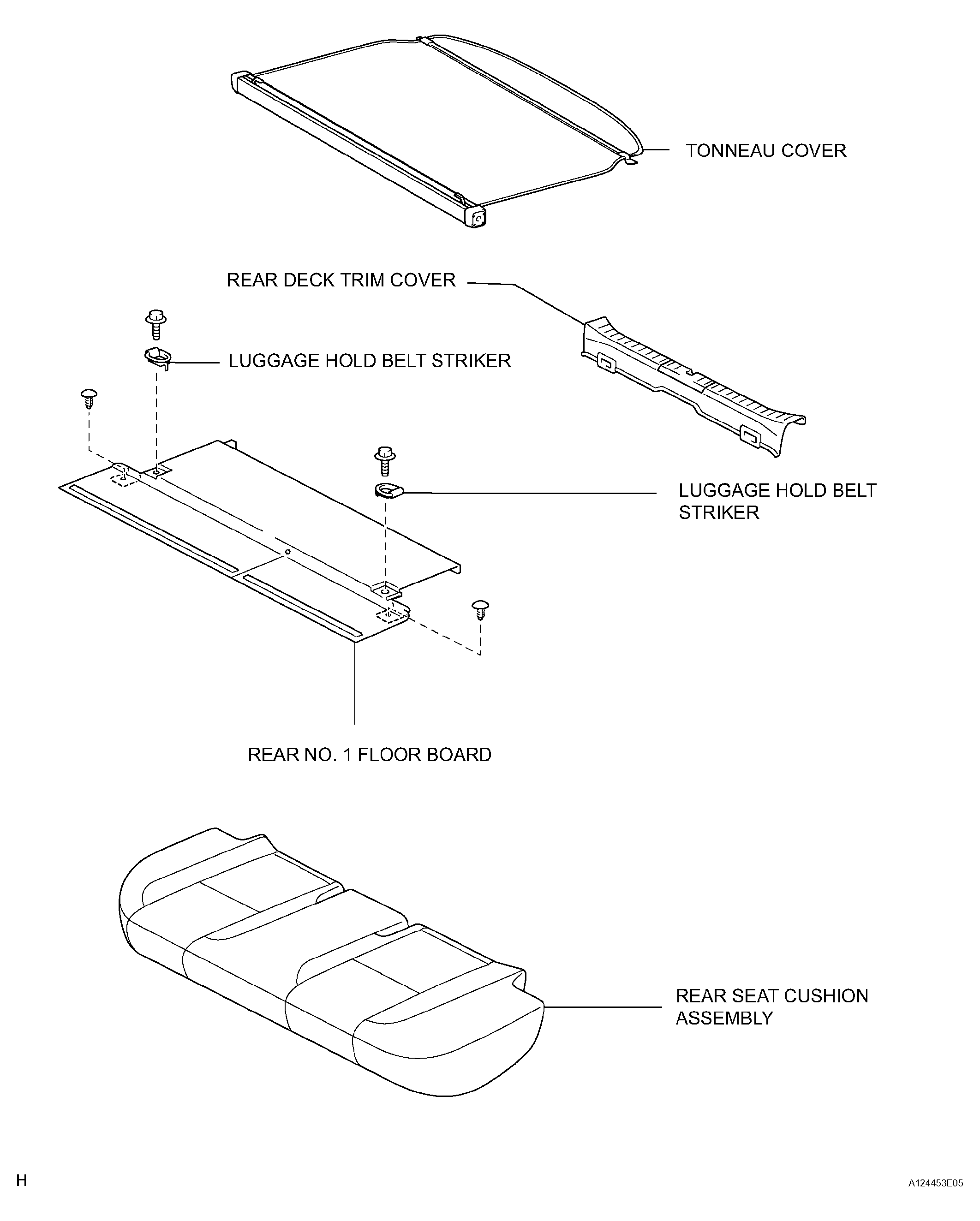

Fig 2: Identifying System Main Resistor Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

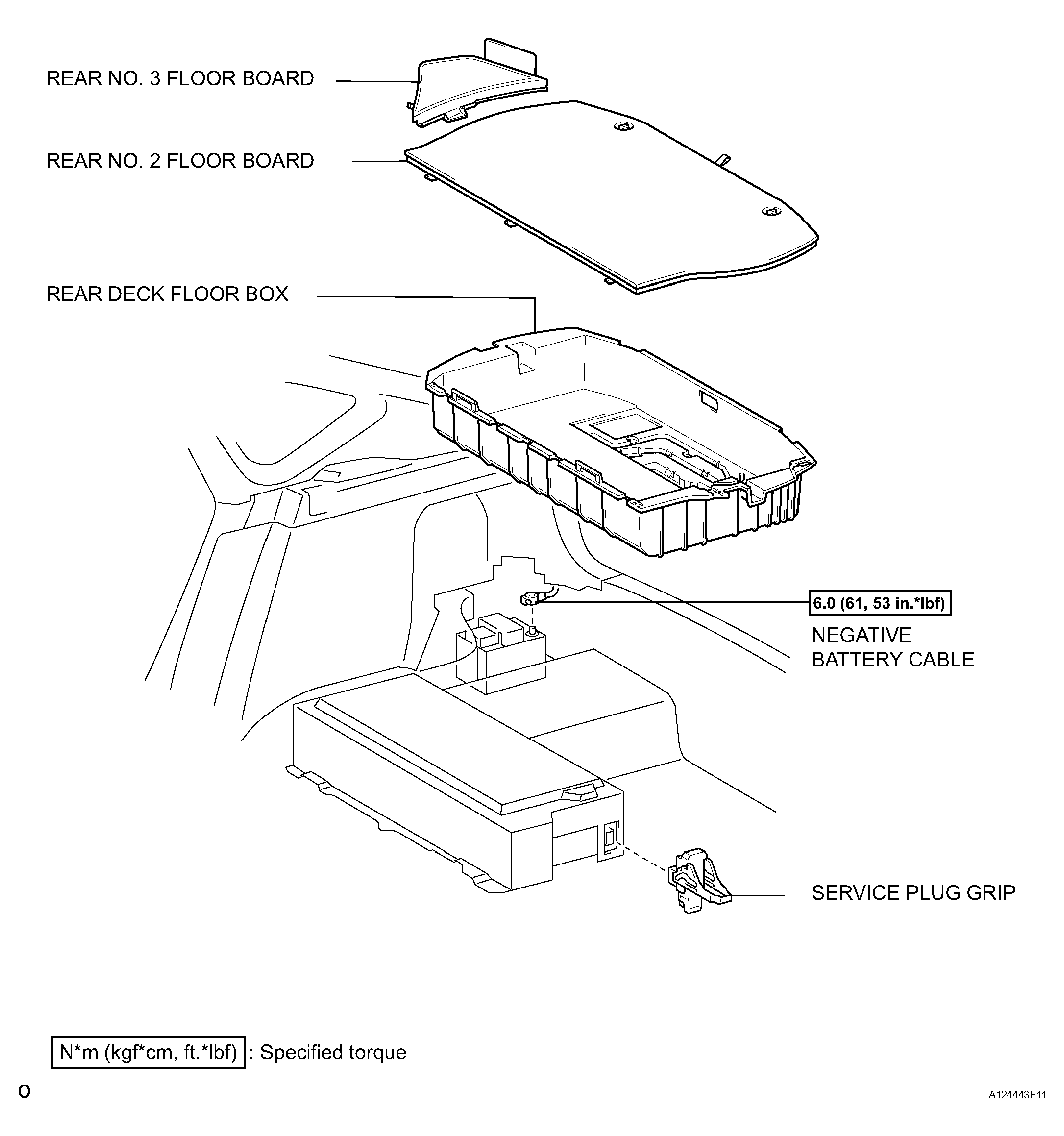

Fig 3: Identifying System Main Resistor Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

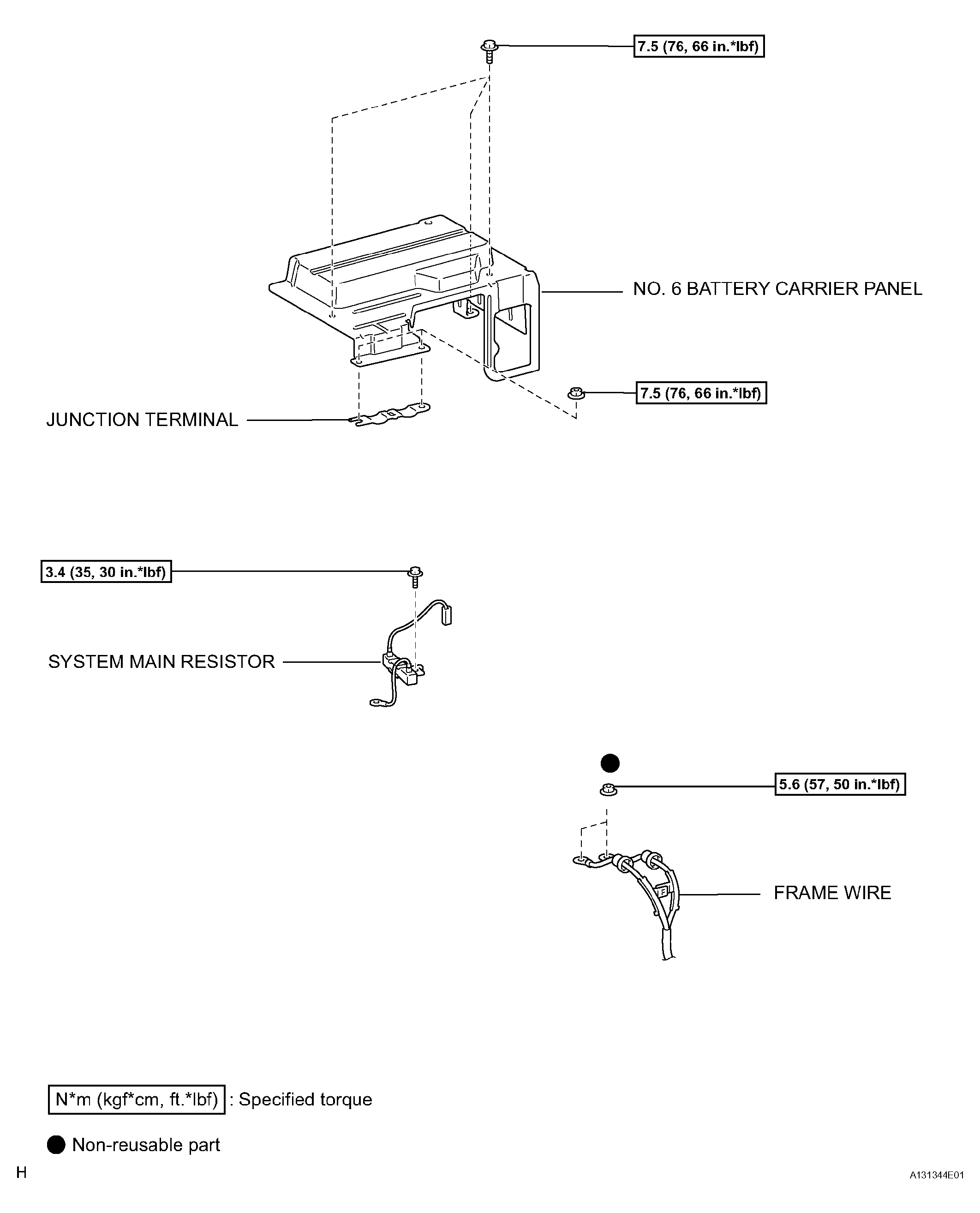

Fig 4: Identifying System Main Resistor Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
