Frame Wire: Components — 2009 Toyota Prius Base Service Manual ~ FixVault

Fig 1: Identifying Frame Wire Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Frame Wire Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Frame Wire Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Frame Wire Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Frame Wire Components (5 Of 6)

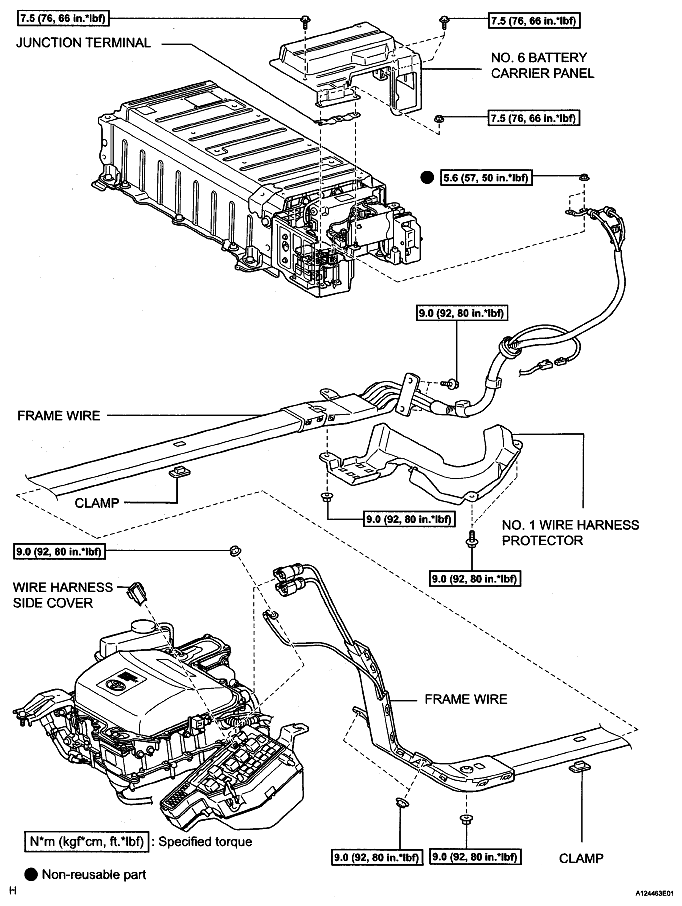

Fig 6: Identifying Frame Wire Components (6 Of 6)
