Hybrid Vehicle Control Ecu: Components

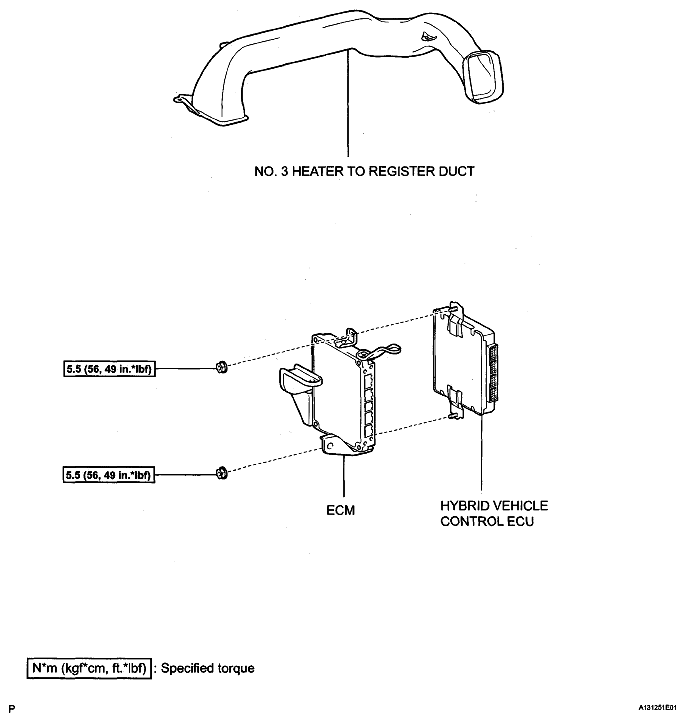

Fig 1: Identifying Hybrid Vehicle Control ECU Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Hybrid Vehicle Control ECU Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

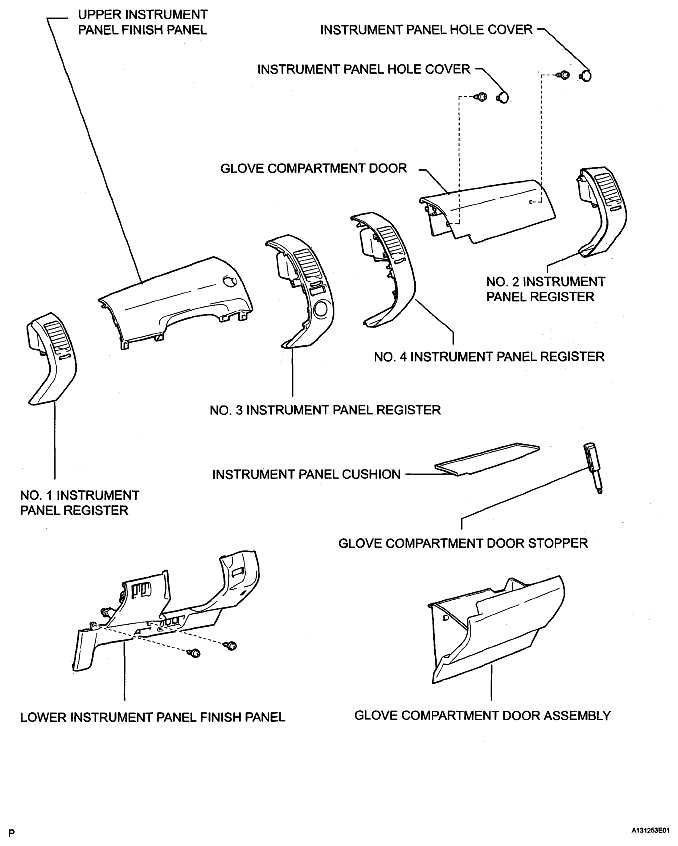

Fig 3: Identifying Hybrid Vehicle Control ECU Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
