Steering Gear: Components

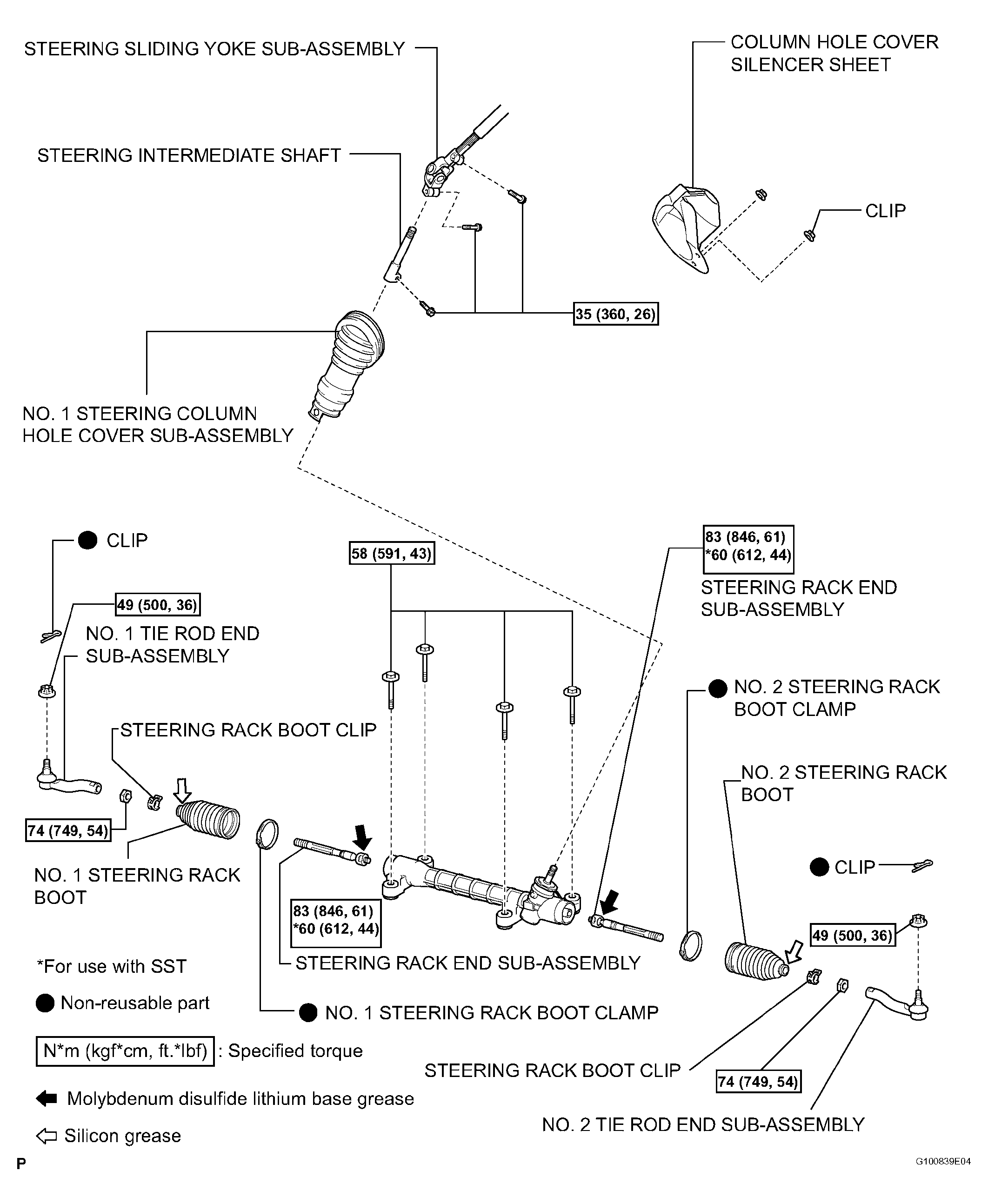

Fig 1: Steering Gear Replacement Components -- With Torque Specification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Steering Gear Replacement Components -- With Torque Specification (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
