Steering Gear: Disassembly

1. Using SST wrapped with protective tape, secure the steering gear in a vise.

   SST 09612-00012

   HINT:

   Remove and reinstall the SST as needed.

   Fig 1: Securing Steering Gear In Vise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put matchmarks on the tie rod end LH and rack end.
2. Remove the tie rod end LH and lock nut.

HINT:

Use the same procedure described for the LH.

1. Using pliers, remove the 2 rack boot clips (for RH and LH).
   Fig 2: Identifying Matchmarks On Tie Rod End LH And Rack End

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, unstake and remove the clamp.
   NOTE: Do not damage the boot.

HINT:

Use the same procedures described for the No. 2 rack boot clamp.

Fig 3: Removing Steering Rack Boot Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using 2 SST, remove the rack end (for LH side).

   SST 09922-10010

   NOTE:

   • Use SST in the correct direction as shown in the illustration.
   • Securely hold the steering rack.

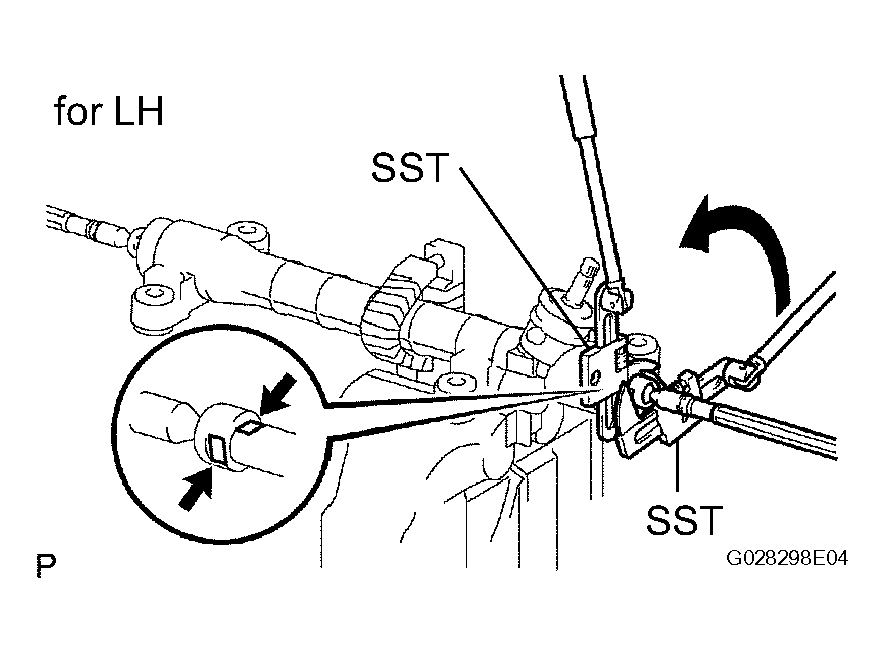

     Fig 4: Removing Rack End (LH Side)

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using 2 SST, hold the steering rack LH side and remove the rack end (for RH side).

   SST 09922-10010

   NOTE:

   • Use SST in the correct direction as shown in Fig 5.
   • Securely hold the steering rack.

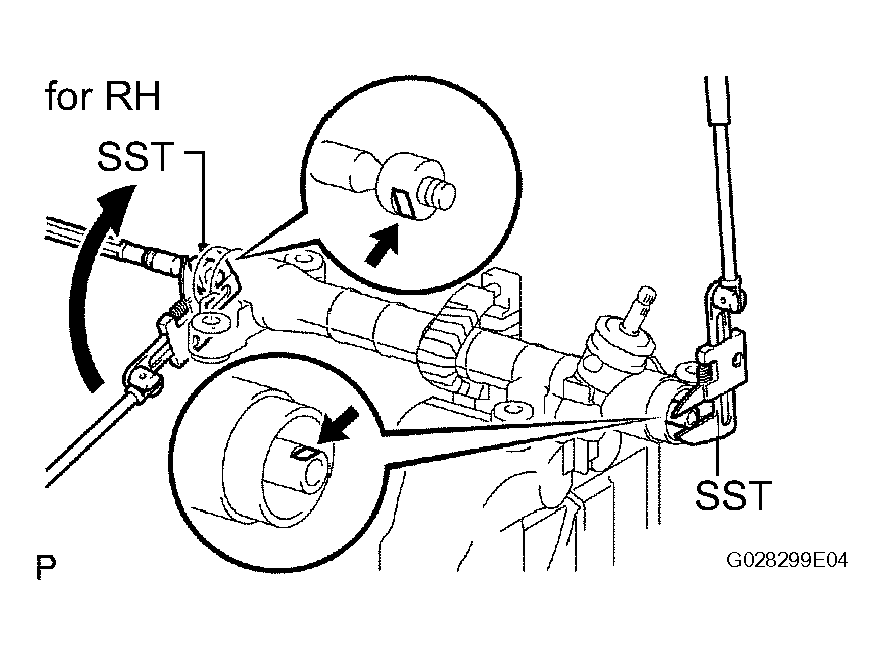

     Fig 5: Removing Rack End (RH Side)

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
