Steering Column Assembly: Components

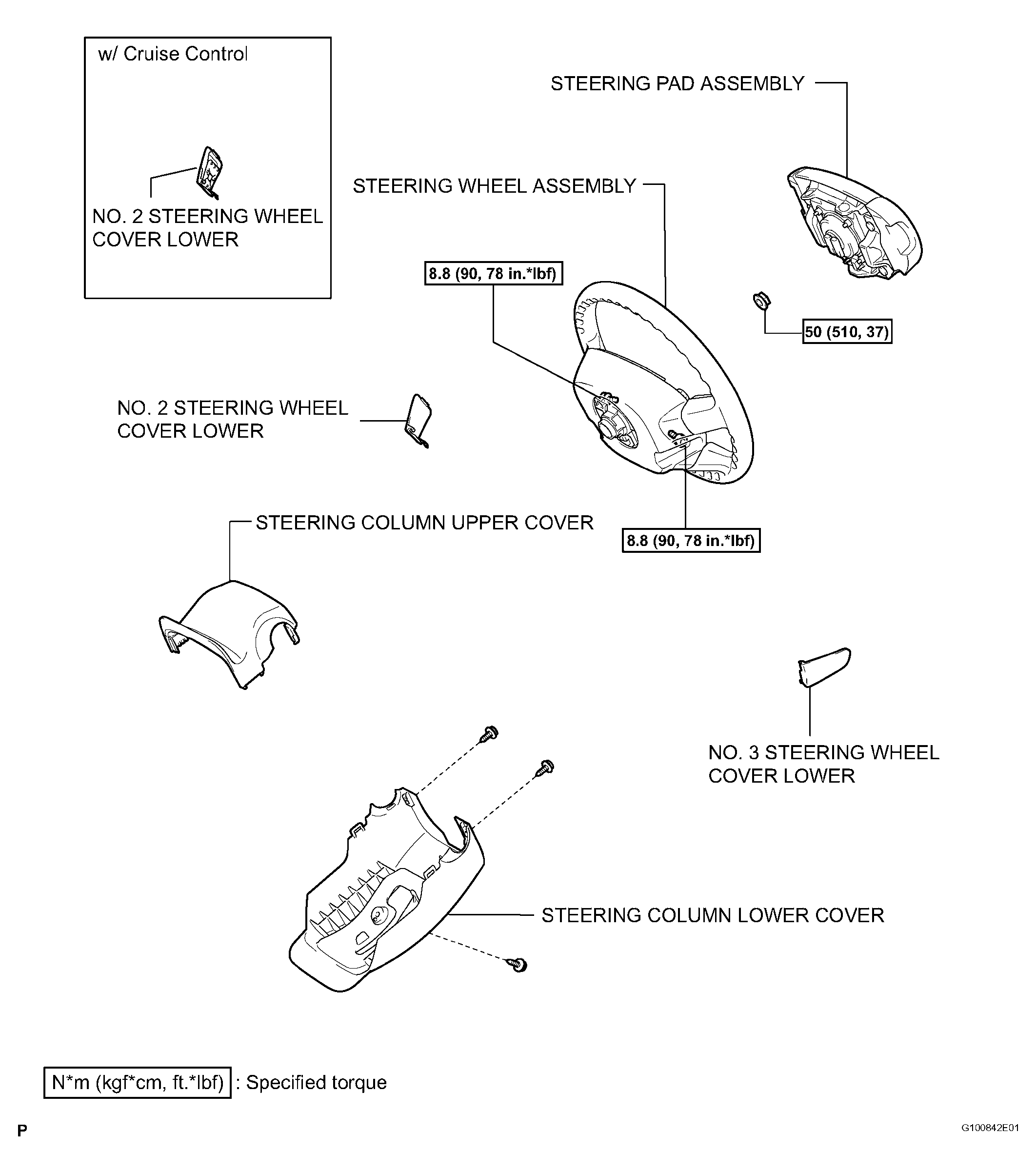

Fig 1: Steering Column Assembly Replacement Components -- With Torque Specification (1 Of 3)
G04474915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

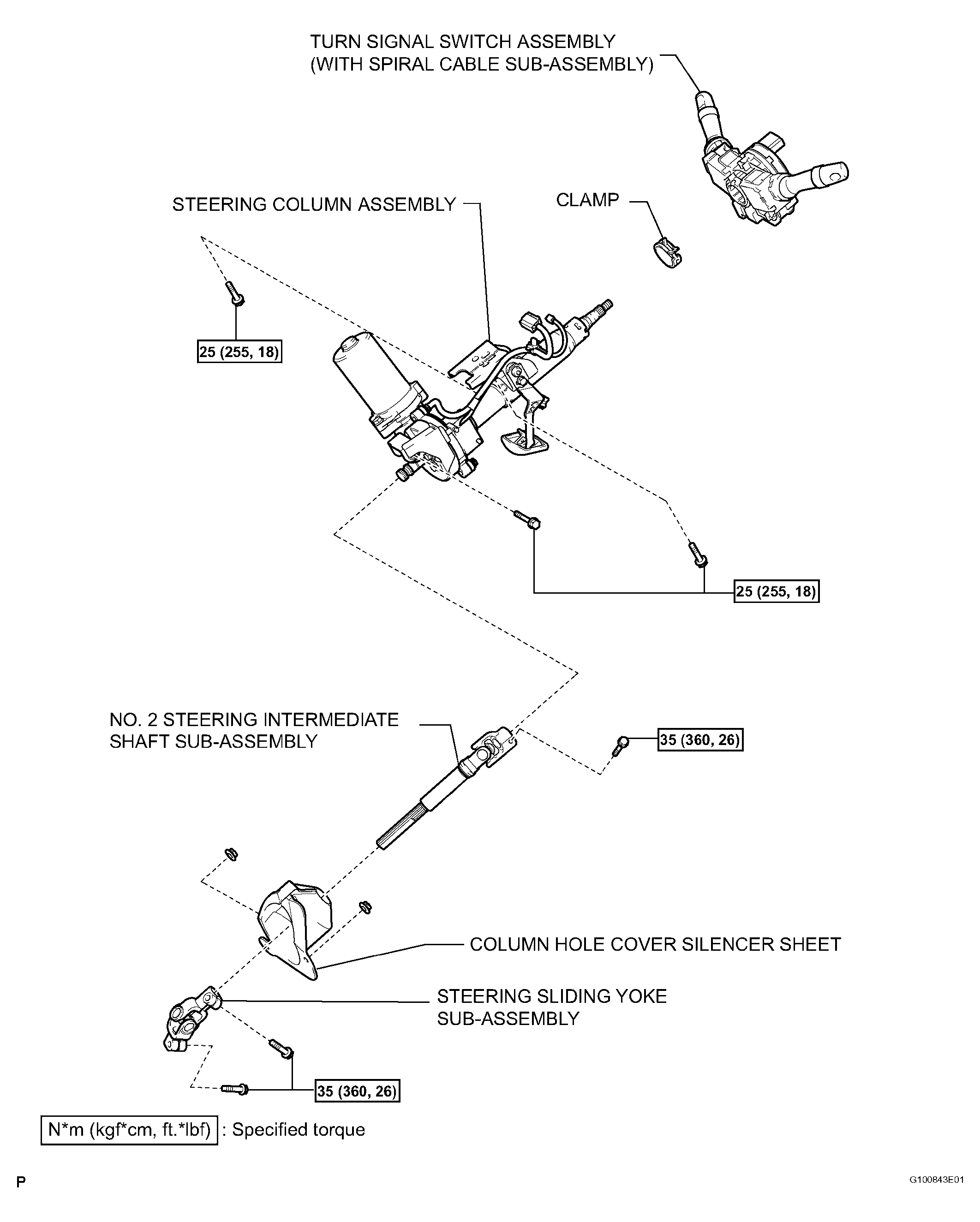

Fig 2: Steering Column Assembly Replacement Components -- With Torque Specification (2 Of 3)
G04474916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

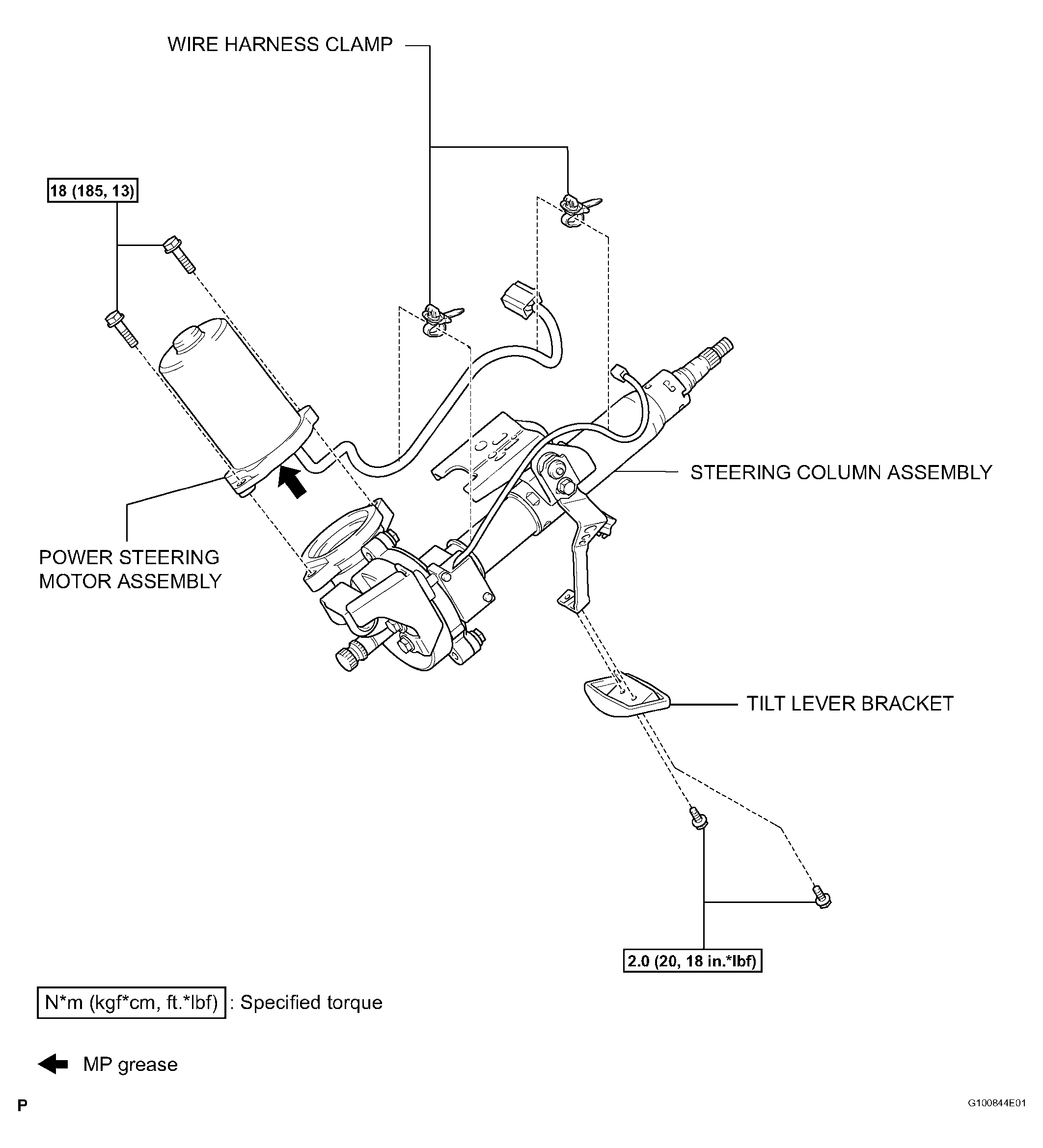

Fig 3: Steering Column Assembly Replacement Components -- With Torque Specification (3 Of 3)
G04474917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
