Home › Toyota › 2009 › Prius Base › Repair and Diagnosis › Transmission › Automatic Transmission Hybrid › Differential Case › Components

Differential Case: Components

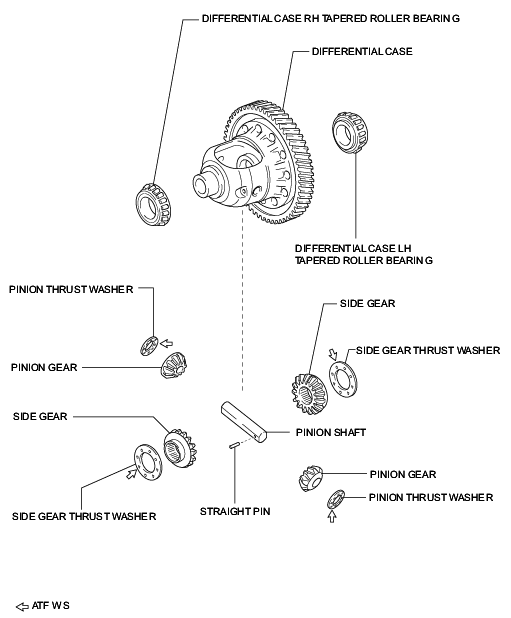

Fig 1: Identifying Differential Case Components
G00468241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
