Inner Rear View Mirror: Removal

REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
1. for TMC made:
  1. Pinch the cover and detach the 2 claws. Then remove the cover.

    Fig 1: Removing Inner Rear View Mirror Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Push the lever, and then slide and remove the inner rear view mirror.

    Fig 2: Removing Inner Rear View Mirror
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for TMMC made:
  1. Using a T20 "TORX" socket wrench, remove the screw.
  2. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove it.
REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)
1. Detach the 2 claws and remove the inner rear view mirror stay holder cover as shown in the illustration.
Fig 4: Removing Inner Rear View Mirror Stay Holder Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
1. Disconnect the connector.
2. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.
Fig 5: Locating Inner Rear View Mirror Connector And Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

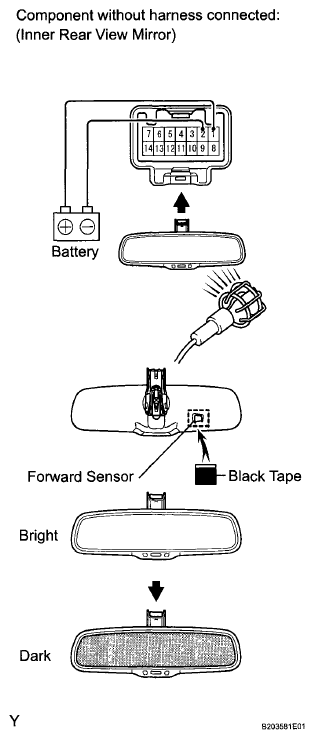

Fig 6: Inspecting Inner Rear View Mirror Assembly (W/ EC Mirror)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
