Outer Rear View Mirror: Installation

INSTALL OUTER MIRROR COVER LOWER LH (for TMC Made)
1. Attach the 6 claws to install the mirror cover lower.

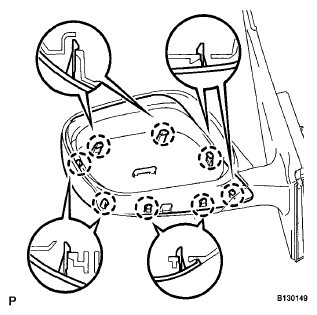

Fig 1: Identifying Outer Mirror Cover Lower LH Claws (For TMC Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER MIRROR COVER LH
1. Attach the 8 claws to install the mirror cover.
2. Check that there is no gap between the cover and mirror body.
  HINT:

  If there is a gap between the cover and body, noise will occur during driving.
Fig 2: Identifying Mirror Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH
1. w/ Mirror Heater:
  1. Connect the 2 connectors.
  2. Attach the 4 claws to install the mirror.
  Fig 3: Identifying Rear View Mirror Claws (W/ Mirror Heater)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Mirror Heater:
  Attach the 4 claws to install the mirror.
Fig 4: Identifying Rear View Mirror Claws (W/O Mirror Heater)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
1. Pass the connector labeled A and wire harness of the mirror through the wire harness hole.
2. Temporarily install the mirror by inserting the bosses on the mirror into the holes on the vehicle and temporarily installing the 3 screws.
3. Tighten the 3 screws in the sequence shown in the illustration to install the mirror.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
4. Connect the connector labeled A.

  Fig 5: Identifying Outer Rear View Mirror Assembly (LH) Screws Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (See REAR DOOR )
INSTALL FRONT UPPER ARMREST BASE PANEL LH (See REAR DOOR )
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See REAR DOOR )

Fig 6: Inspecting Outer Mirror Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
