RAV4 Base, 2.5 F, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Front Power Seat Control System
›
System Diagram
System Diagram

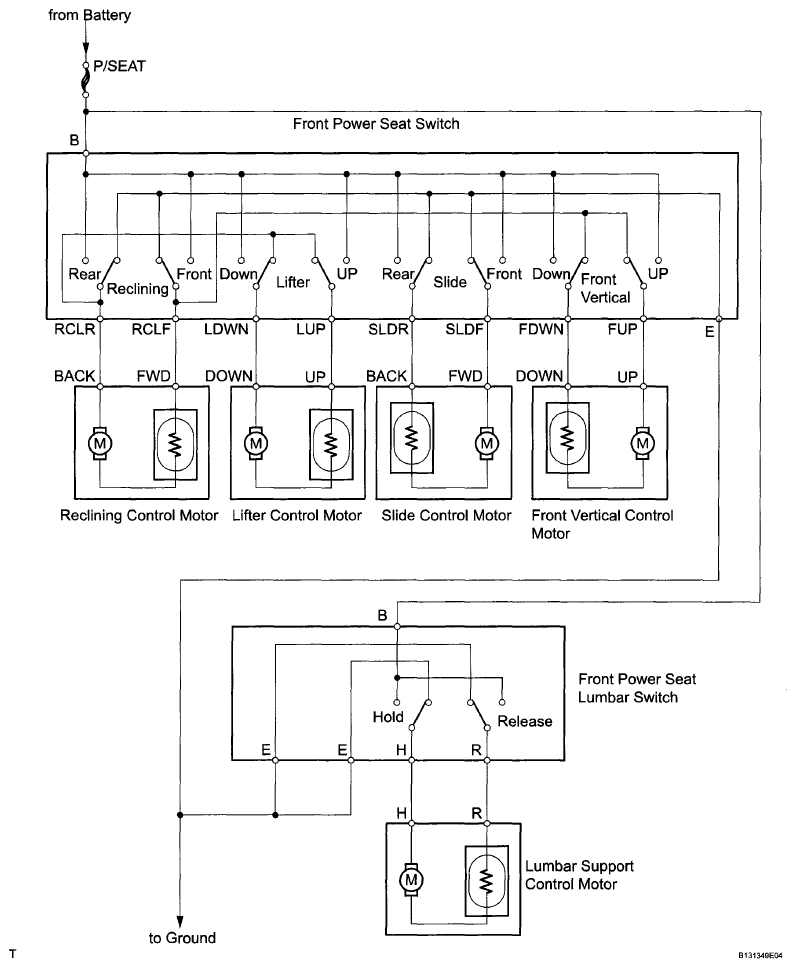

Fig 1: Front Power Seat Control System Diagram
