Upper Instrument Panel: Components

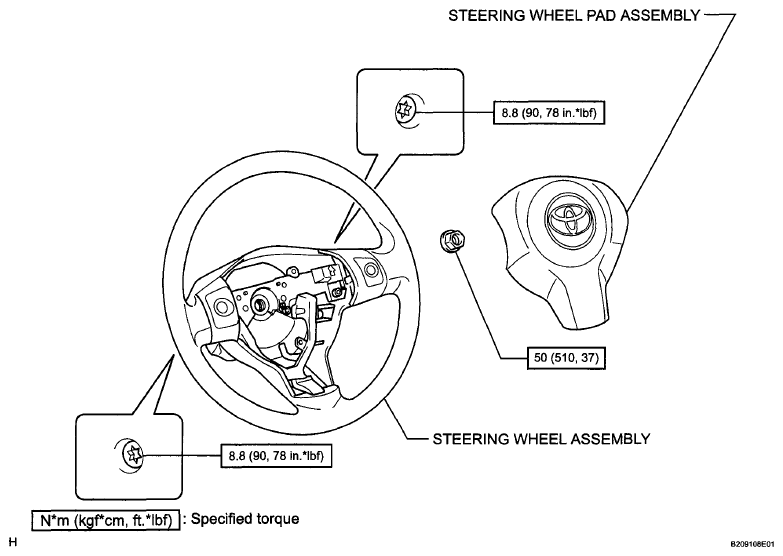

Fig 1: Steering Wheel Replacement Components With Torque Specifications
G06000705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

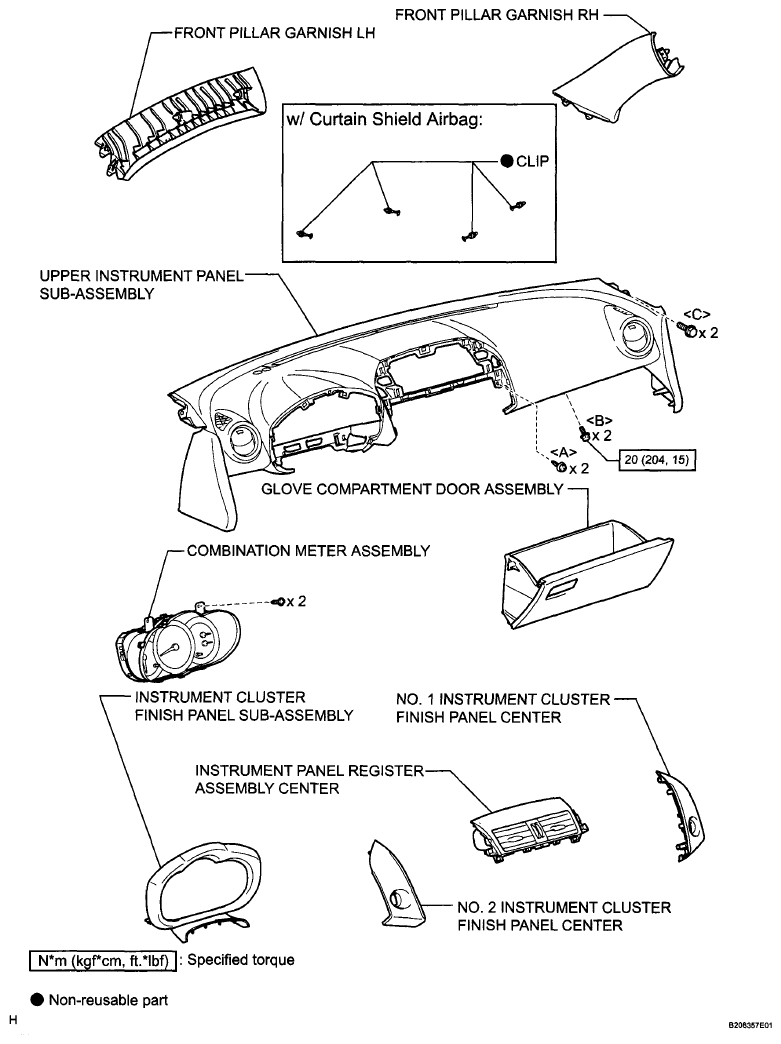

Fig 2: Instrument Panel Replacement Components With Torque Specifications
G06000706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

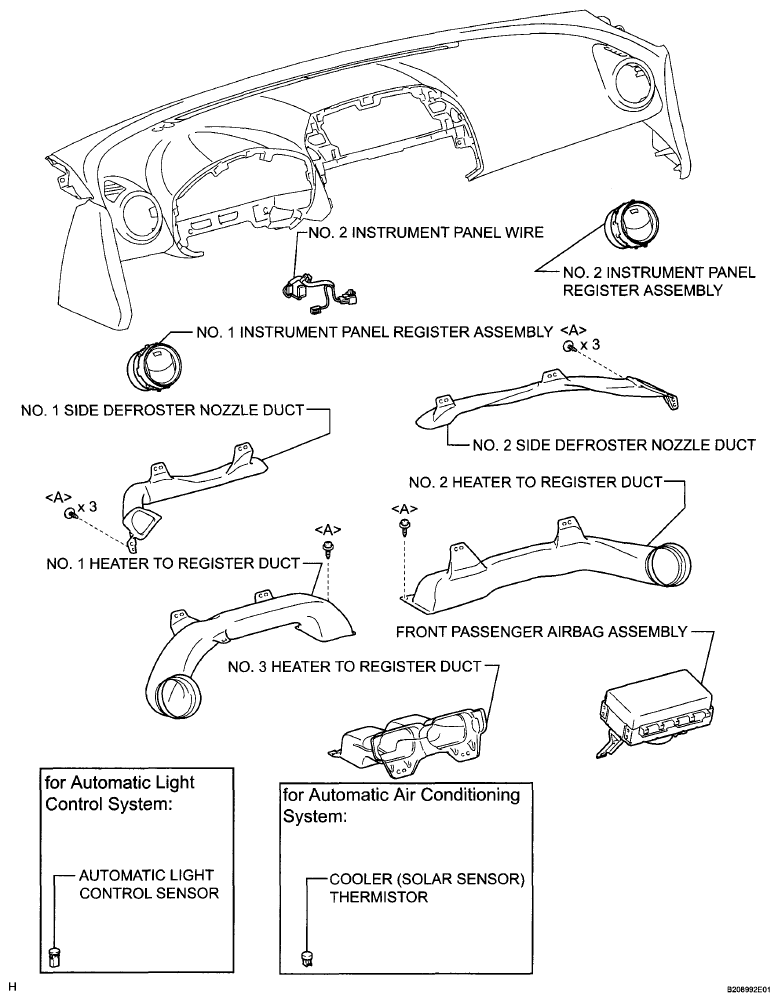

Fig 3: Air Conditioning System Replacement Components With Torque Specifications
G06000707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

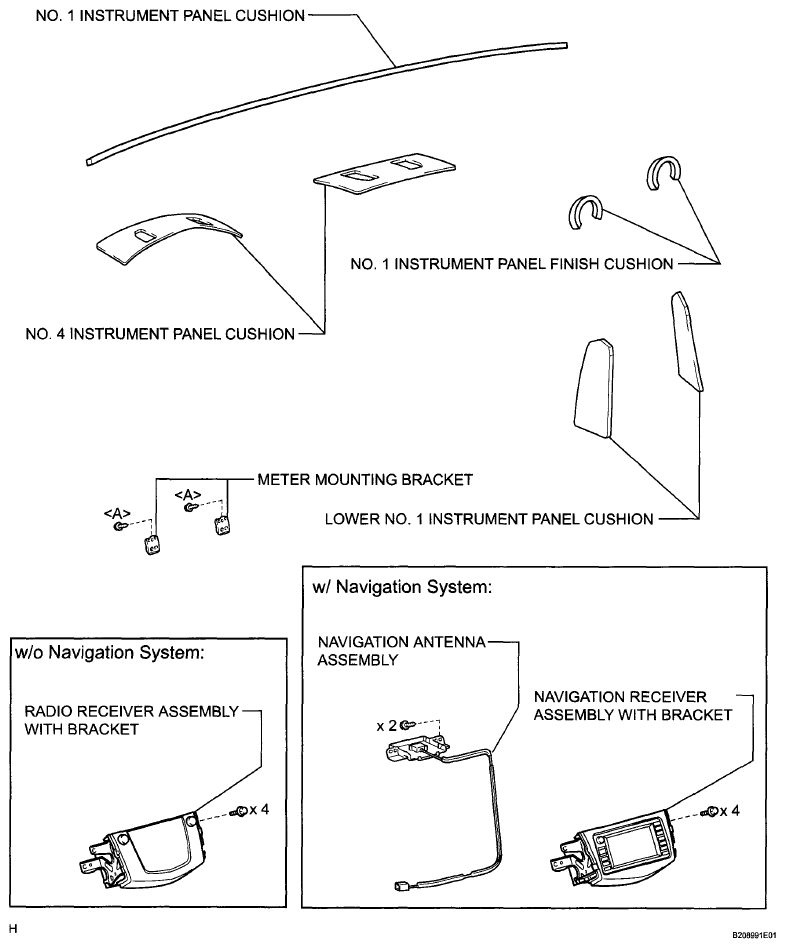

Fig 4: Instrument Panel Replacement Components With Torque Specifications
G06000708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
