Engine Control System (2AR-FE) - Service Information & Circuit Tests
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

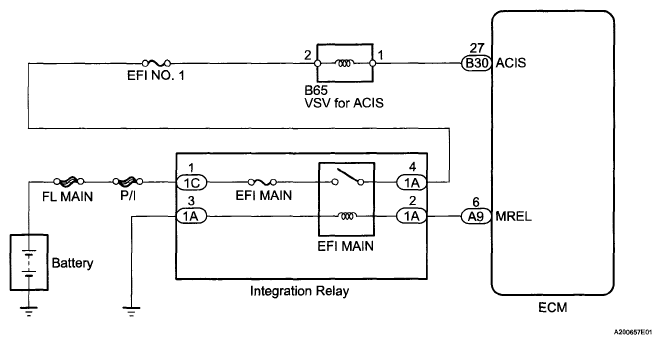

Fig 1: ACIS Control Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
