Engine Control System (2AR-FE) - Service Information & Circuit Tests
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

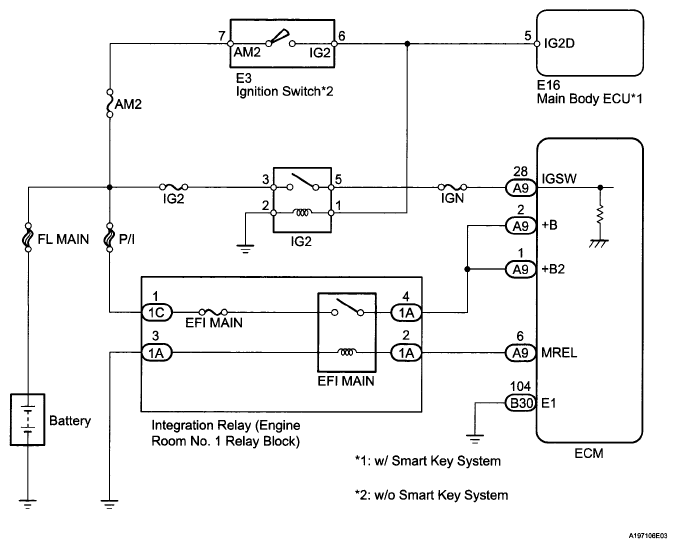

Fig 1: ECM Power Source Circuit - Wiring Diagram
