Power Steering Ecu: Installation

INSTALL POWER STEERING ECU
1. Install the power steering ECU with the 3 nuts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
2. Connect the 4 connectors.
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER
1. Install the instrument panel (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

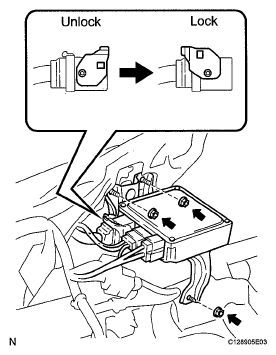

Fig 1: Installing Power Steering ECU Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
