Steering Column Assembly: Components

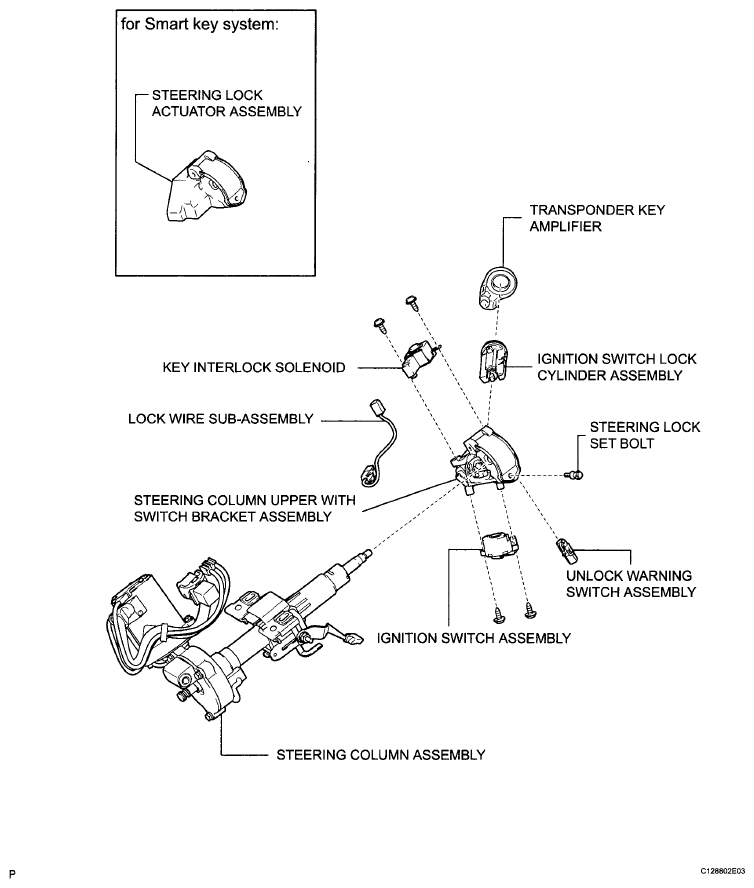

Fig 1: Steering Column Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

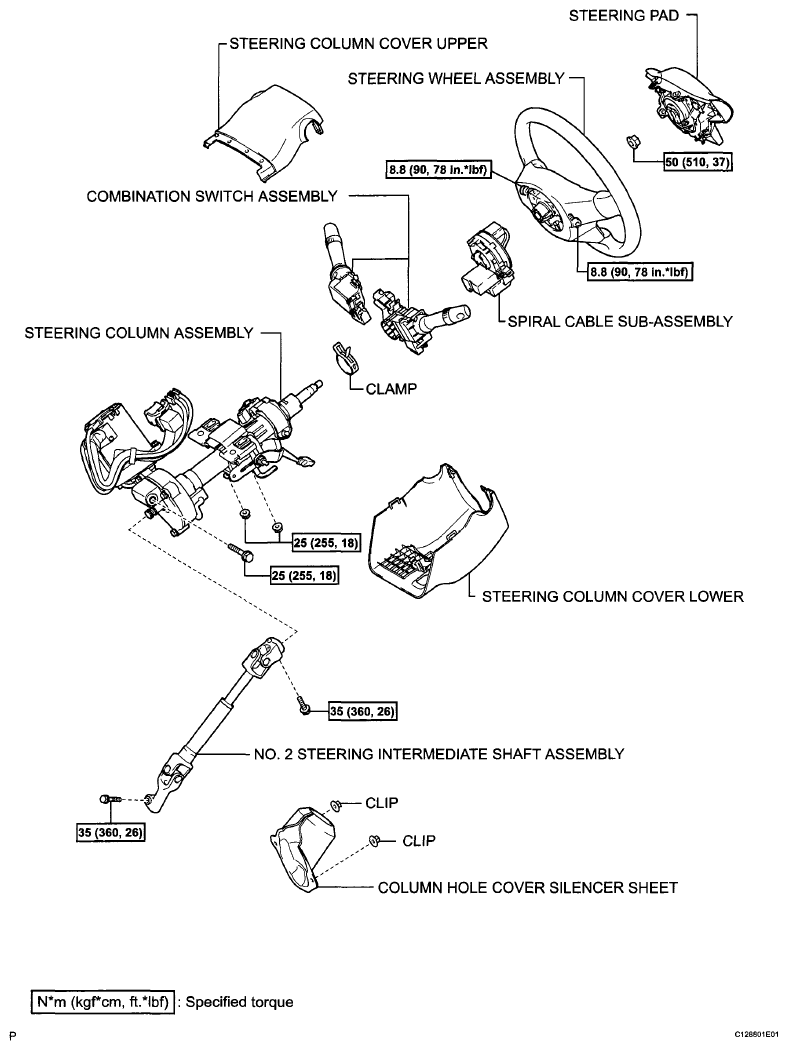

Fig 2: Steering Column Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Steering Column Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Steering Column Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Steering Column Replacement Components With Torque Specifications (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Steering Column Replacement Components With Torque Specifications (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
