RAV4 Base, 2.5 F, AWD
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering Lock System
›
Parts Location
Parts Location

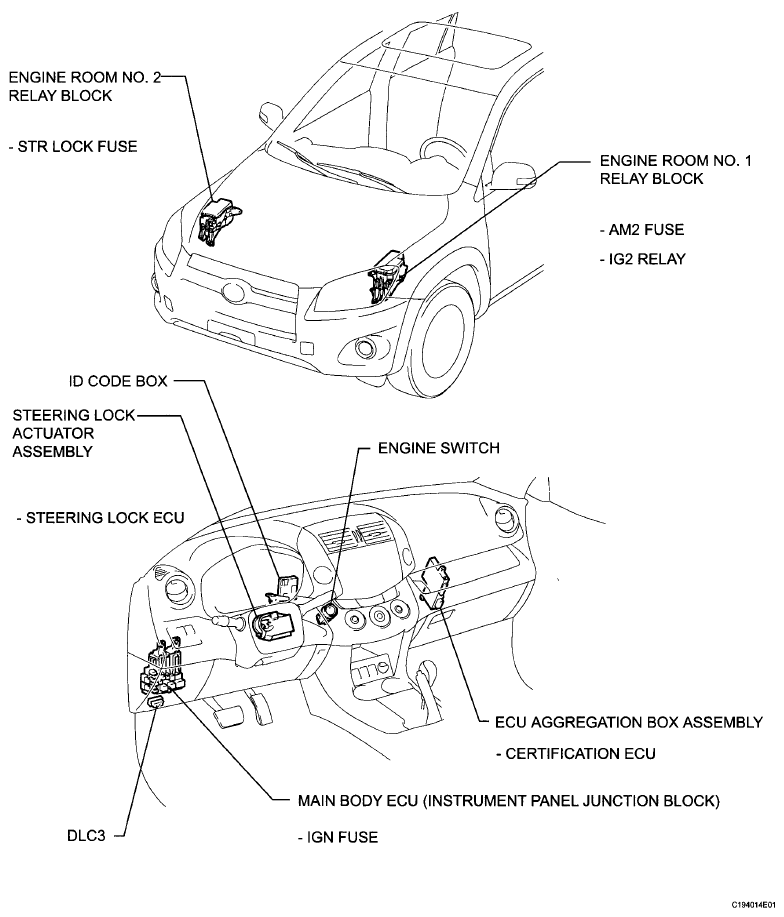

Fig 1: Identifying Steering Lock System Part Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
