Radio Receiver: Installation

INSTALL NO. 1 RADIO BRACKET
1. Install the radio receiver bracket to the radio receiver with the 4 bolts.
Fig 1: Locating NO. 1 Radio Receiver Bracket Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RADIO BRACKET
1. Install the radio receiver bracket to the radio receiver with the 4 bolts.
INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
1. Connect all the connectors.
2. Attach the 4 claws to install the radio receiver.
3. Install the 4 bolts.
Torque: 12.8 N*m (130 kgf*cm, 9 ft.*lbf)

Fig 2: Locating NO. 2 Radio Receiver Bracket Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

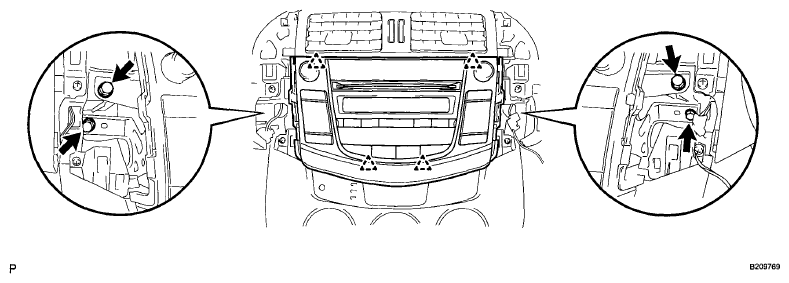

Fig 3: Locating Radio Receiver Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See LOWER INSTRUMENT PANEL )
INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See LOWER INSTRUMENT PANEL )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
