Seat Heater Switch: Components

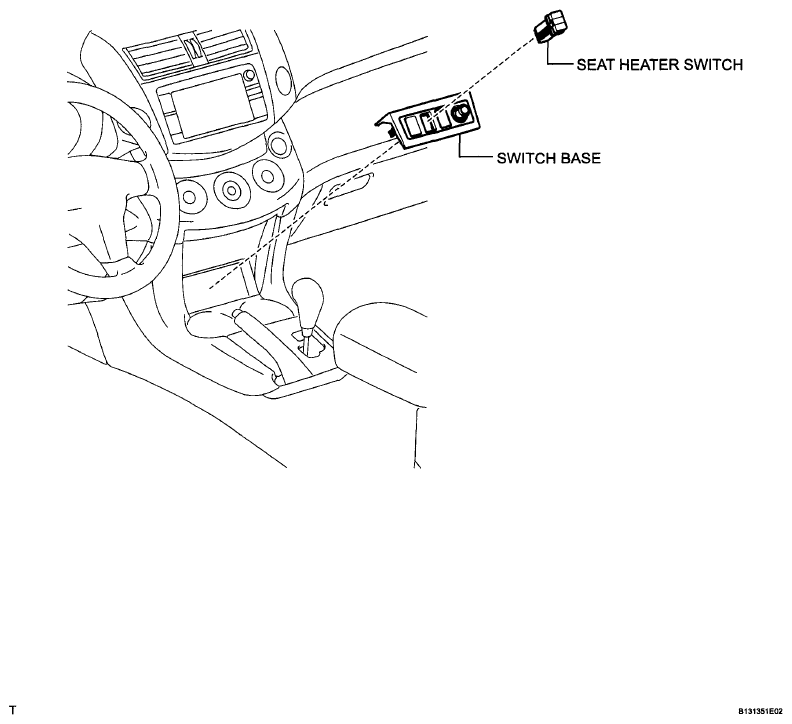

Fig 1: Identifying Seat Heater Switch And Switch Cable

G06001223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
