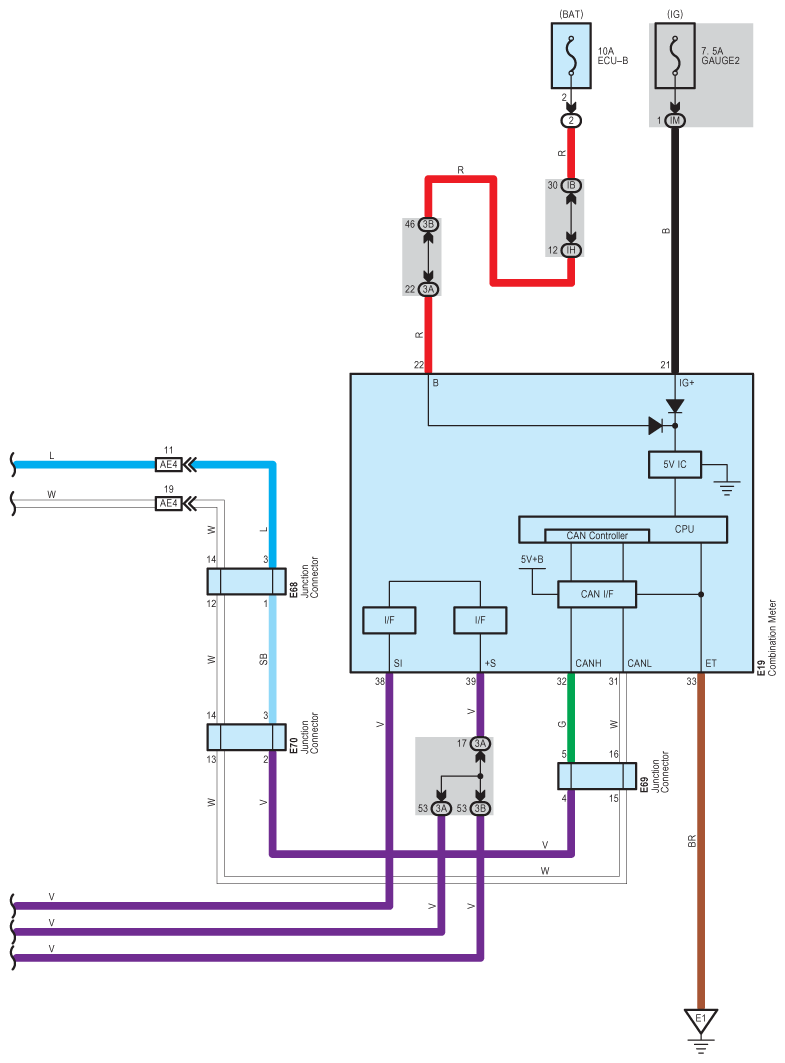

Fig 1: Audio System (JBL) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

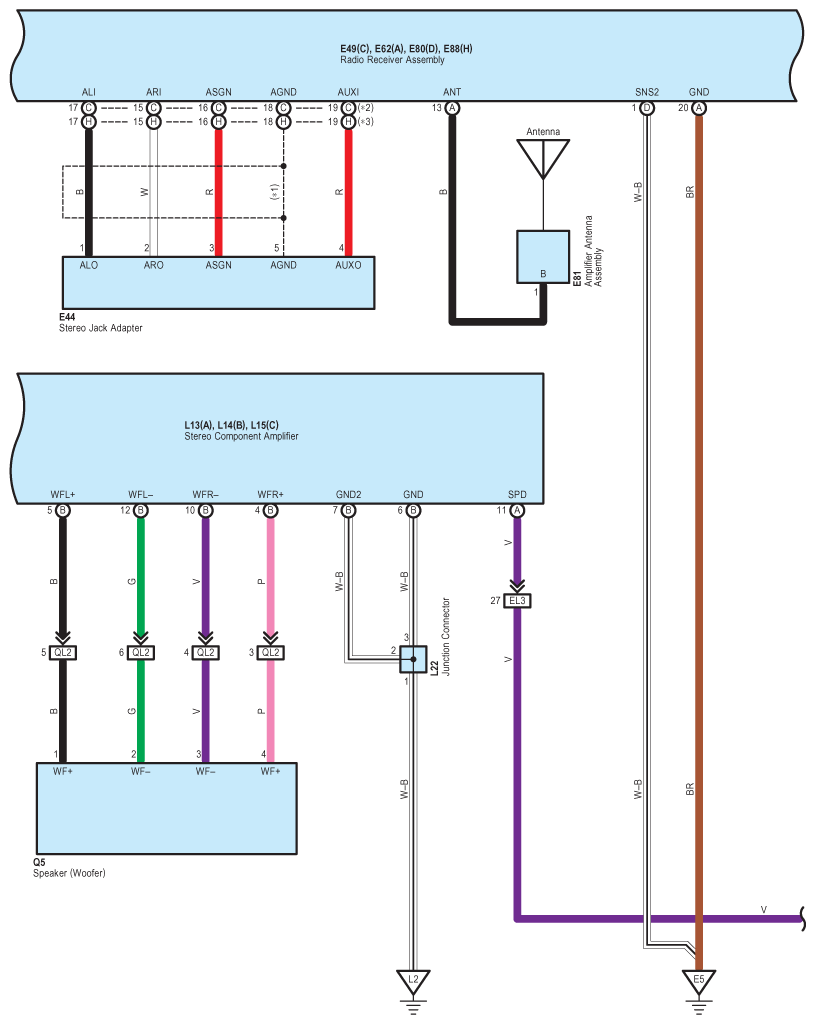

Fig 2: Audio System (JBL) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

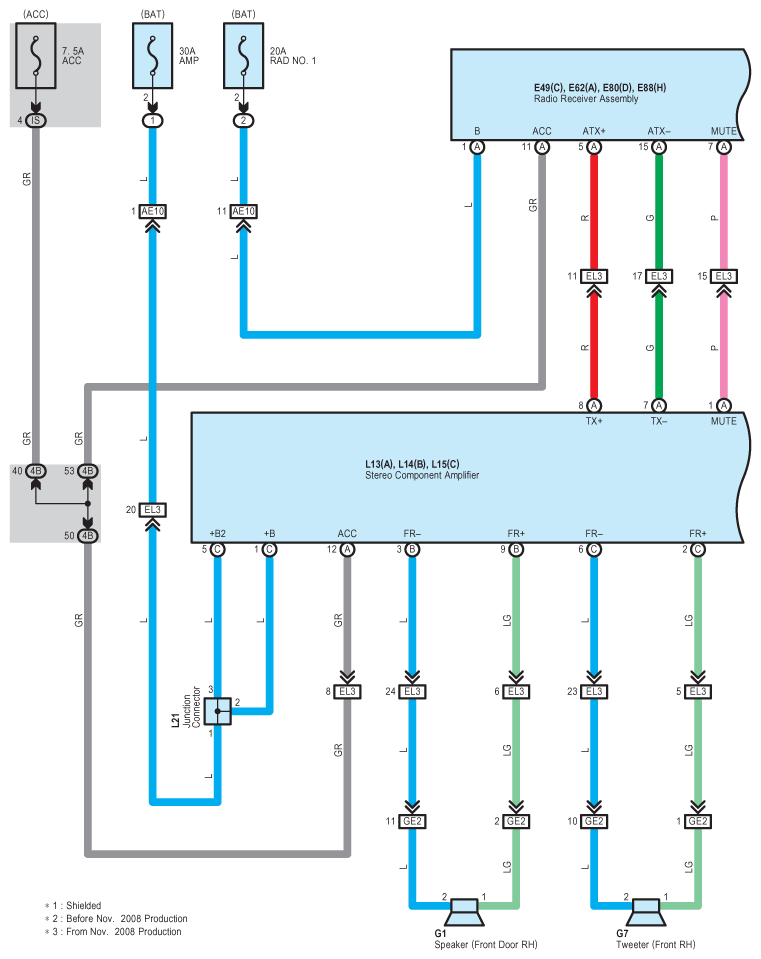

Fig 3: Audio System (JBL) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

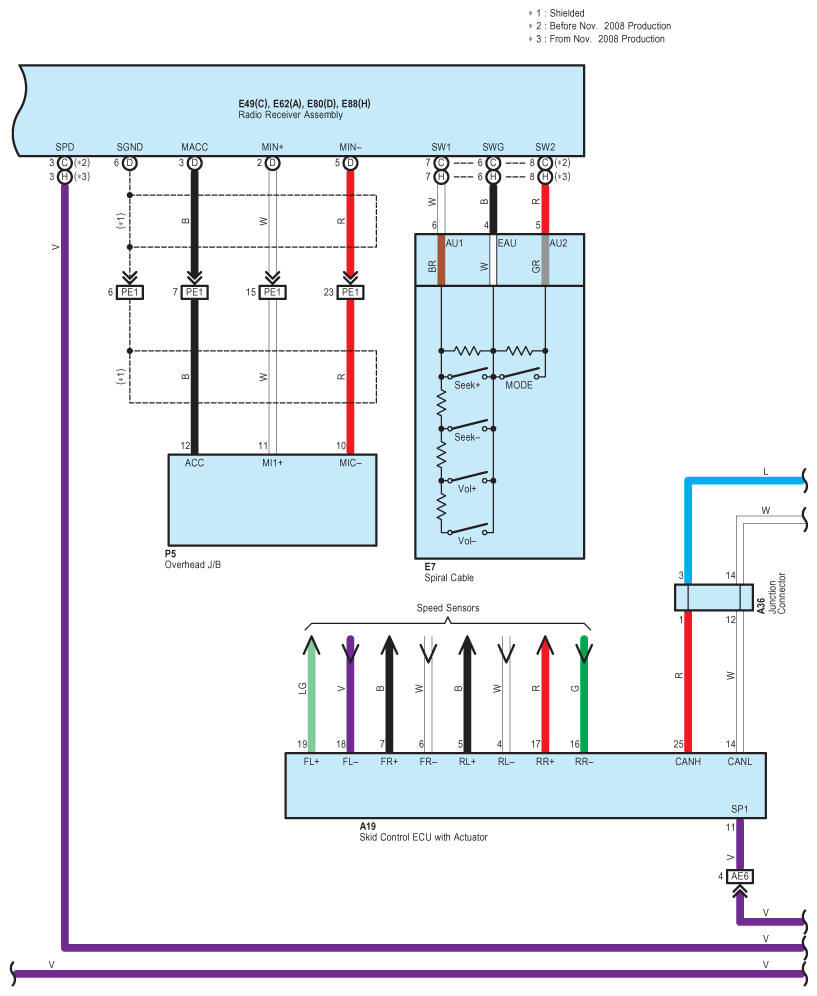

Fig 4: Audio System (JBL) - Circuit Diagram (4 Of 5)

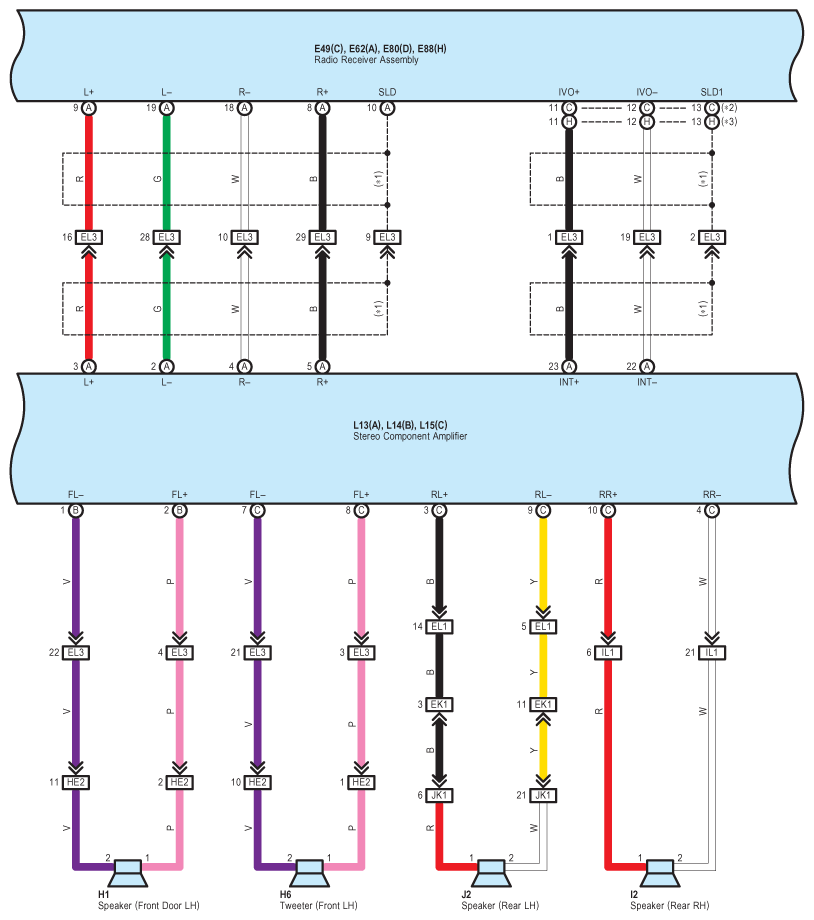

Fig 5: Audio System (JBL) - Circuit Diagram (5 Of 5)
