Seat Heater: Notes

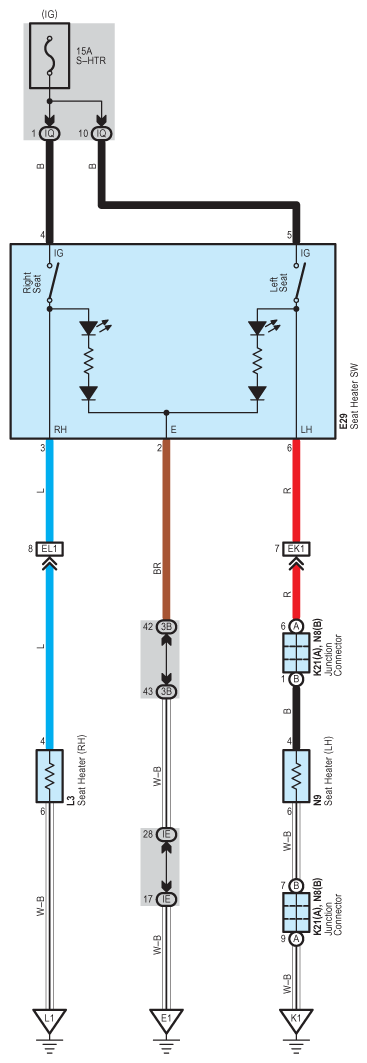

Fig 1: Seat Heater - Circuit Diagram

G07611645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
