RAV4 Base, 3.5 K, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Ignition System (2GR-FE)
›
Ignition System
›
Parts Location
Parts Location

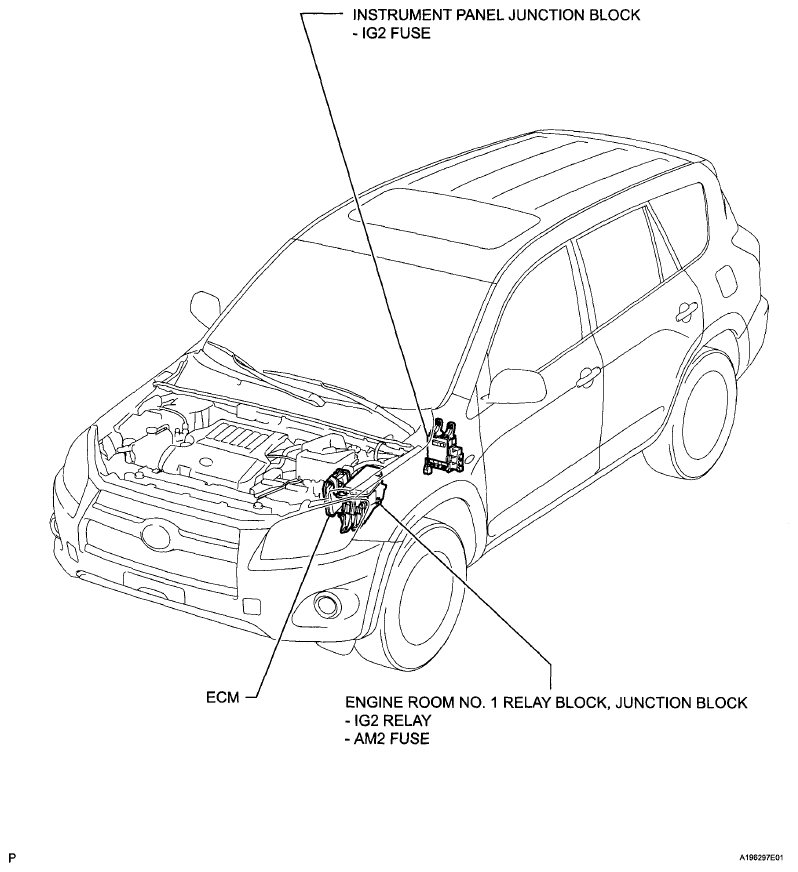

Fig 1: Identifying Ignition System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

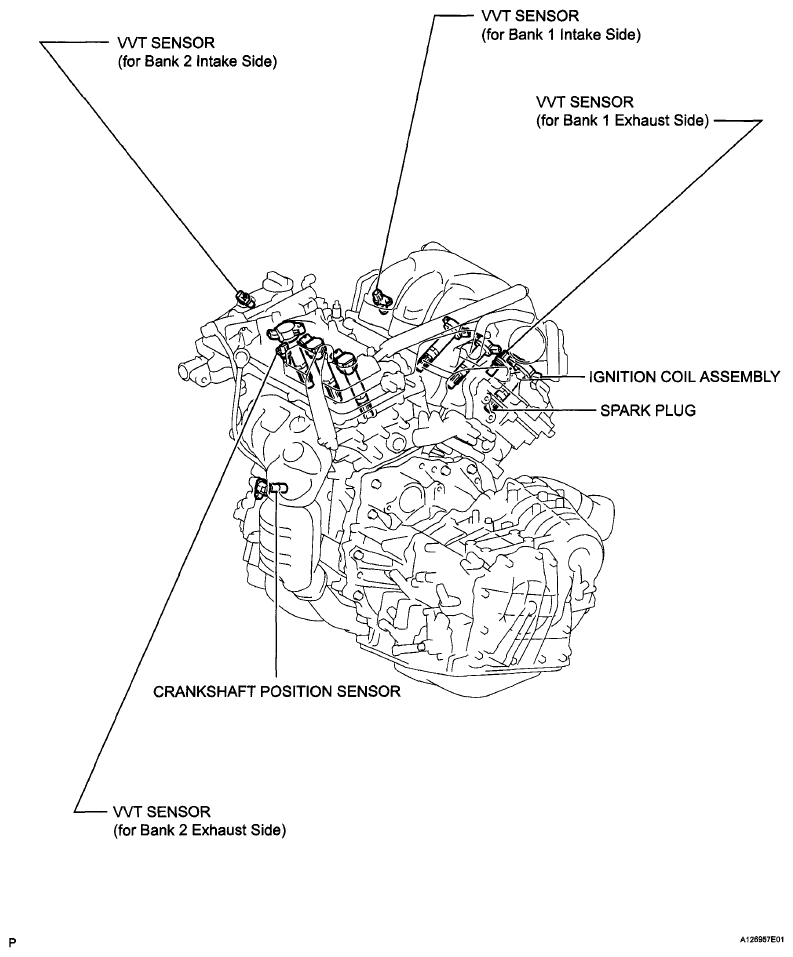

Fig 2: Identifying Ignition System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
