Engine Fuel System (2GR-FE)
›
Fuel System
›
System Diagram
System Diagram
FUEL FLOW DIAGRAM

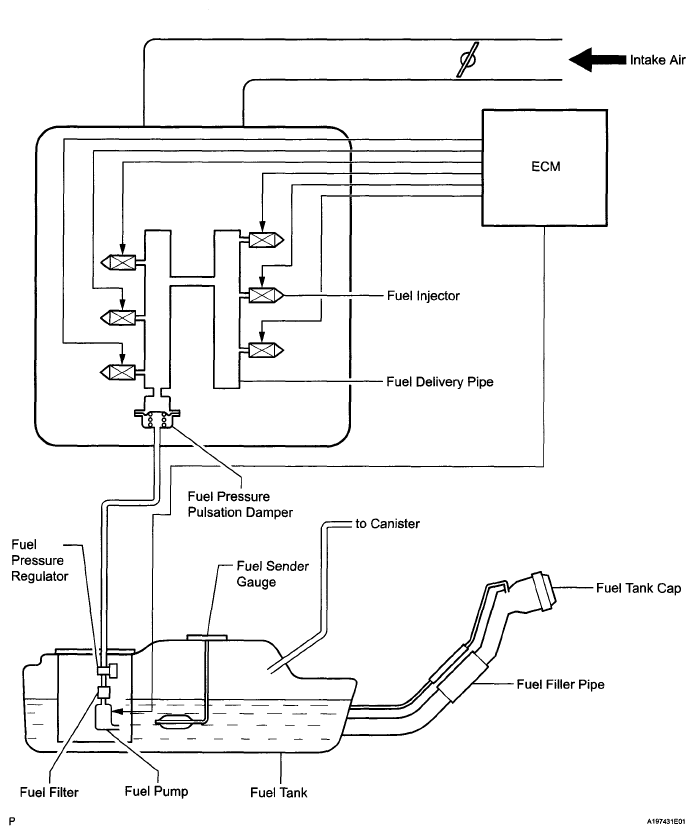

Fig 1: Fuel Flow Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUEL SYSTEM WIRING DIAGRAM

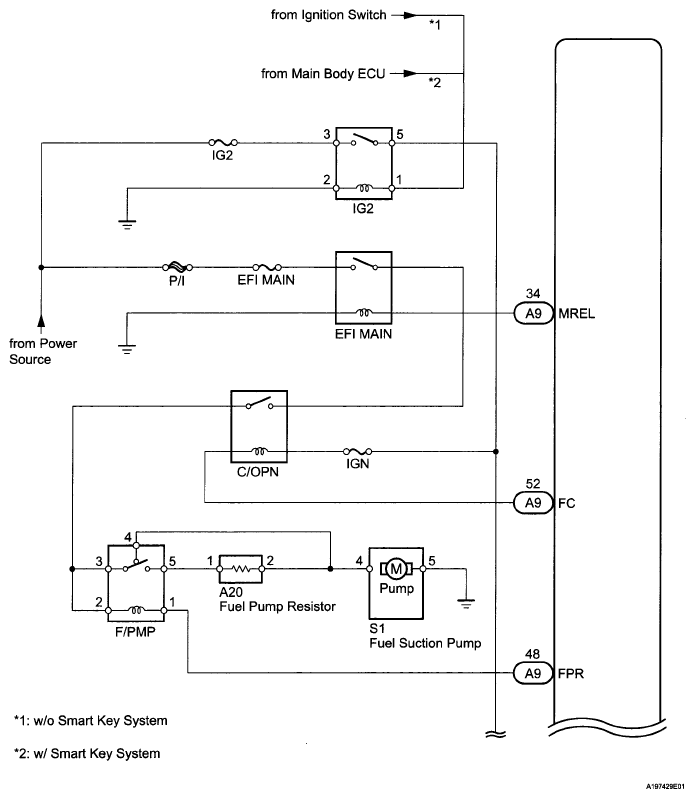

Fig 2: Fuel System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

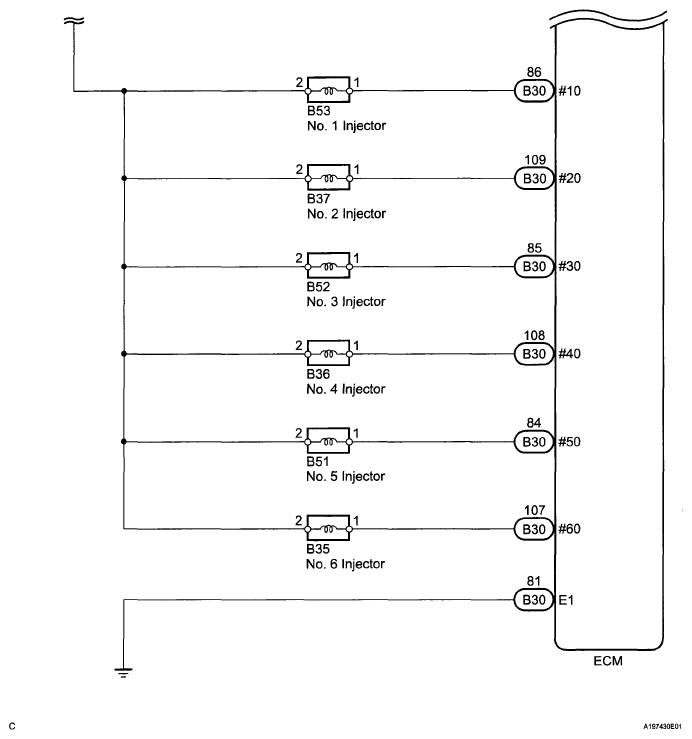

Fig 3: Fuel System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
