Engine Control System (2GR-FE) - Component And System Testing, Removal, Inspection & Installation
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

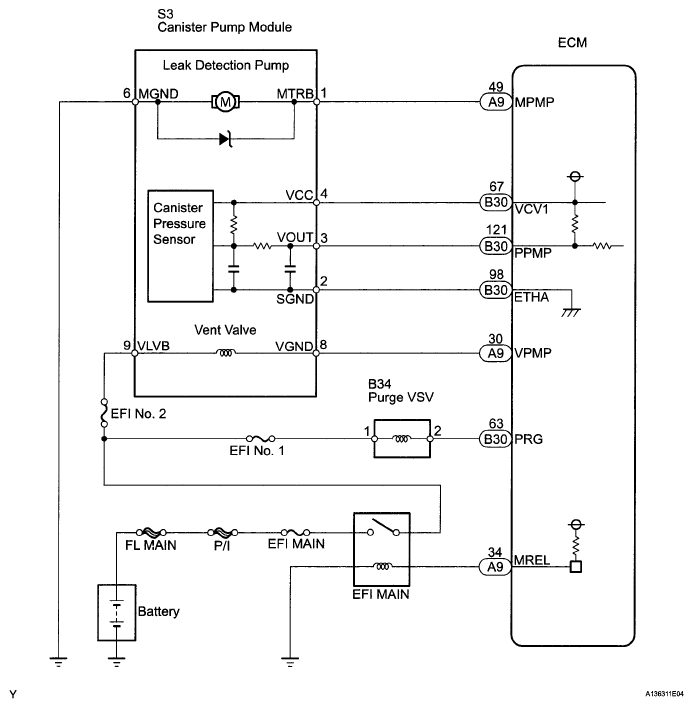

Fig 1: Evaporative Emission Control System Pressure Sensor - Wiring Diagram
