Front Fog Light: Notes

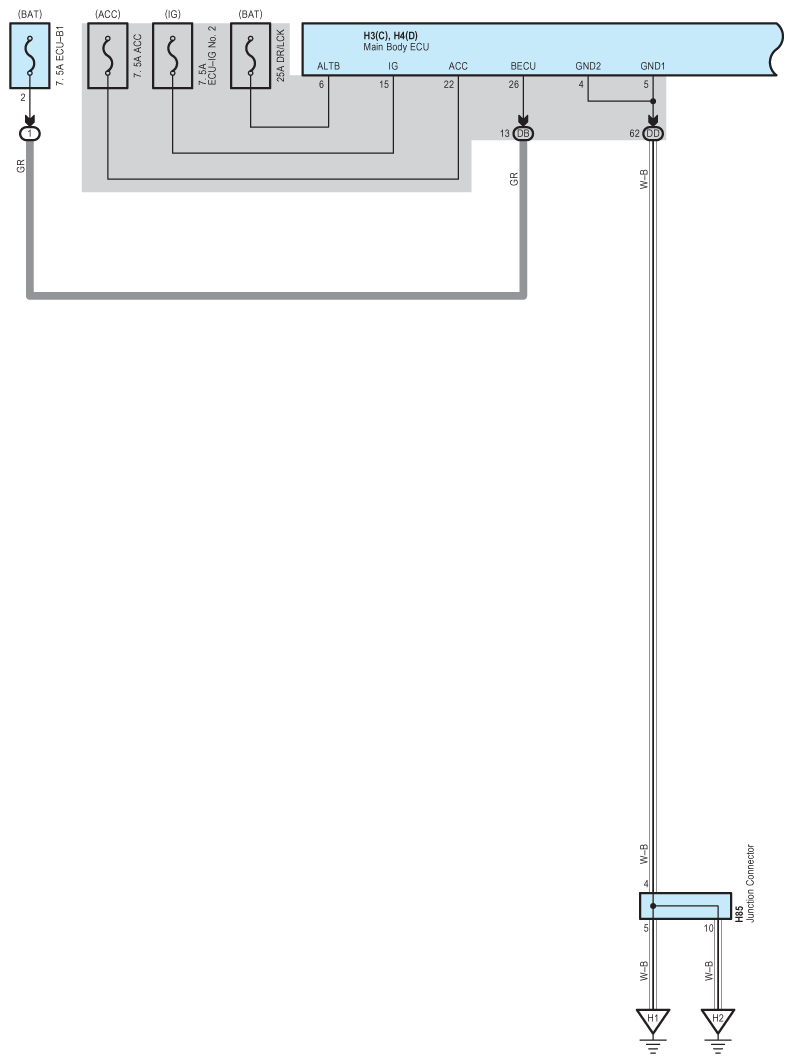

Fig 1: Front Fog Light - Circuit Diagram (1 Of 3)
G07608896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

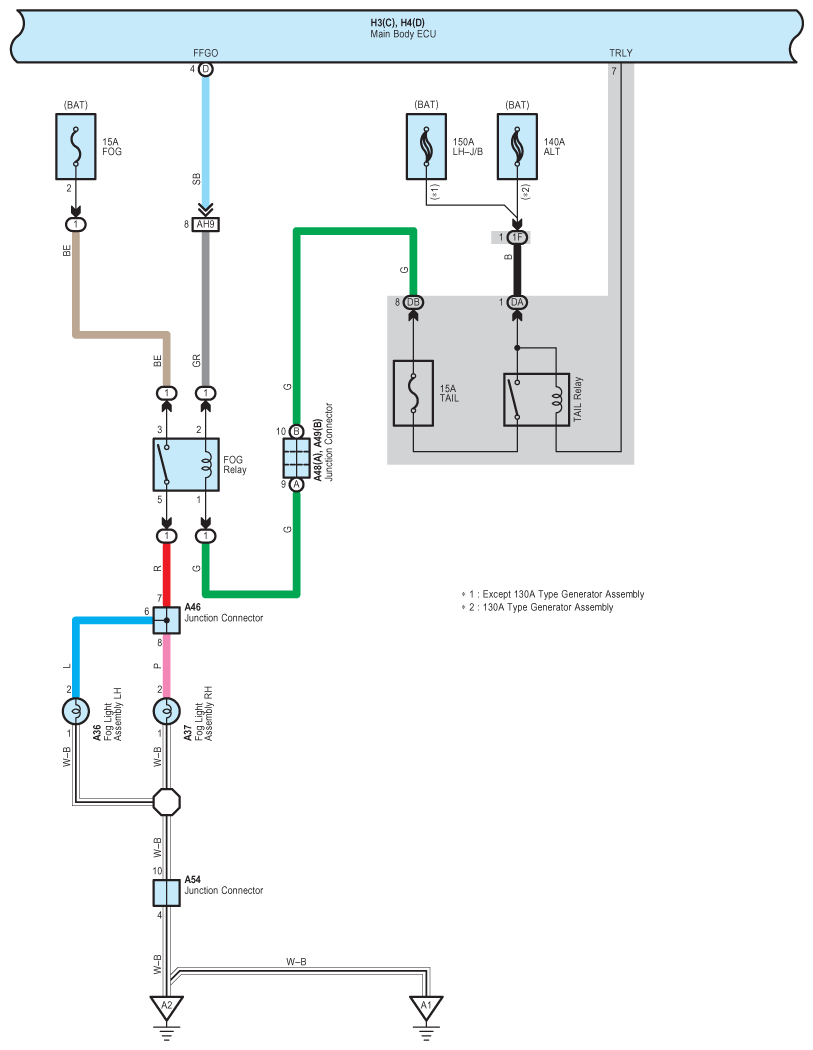

Fig 2: Front Fog Light - Circuit Diagram (2 Of 3)
G07608897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

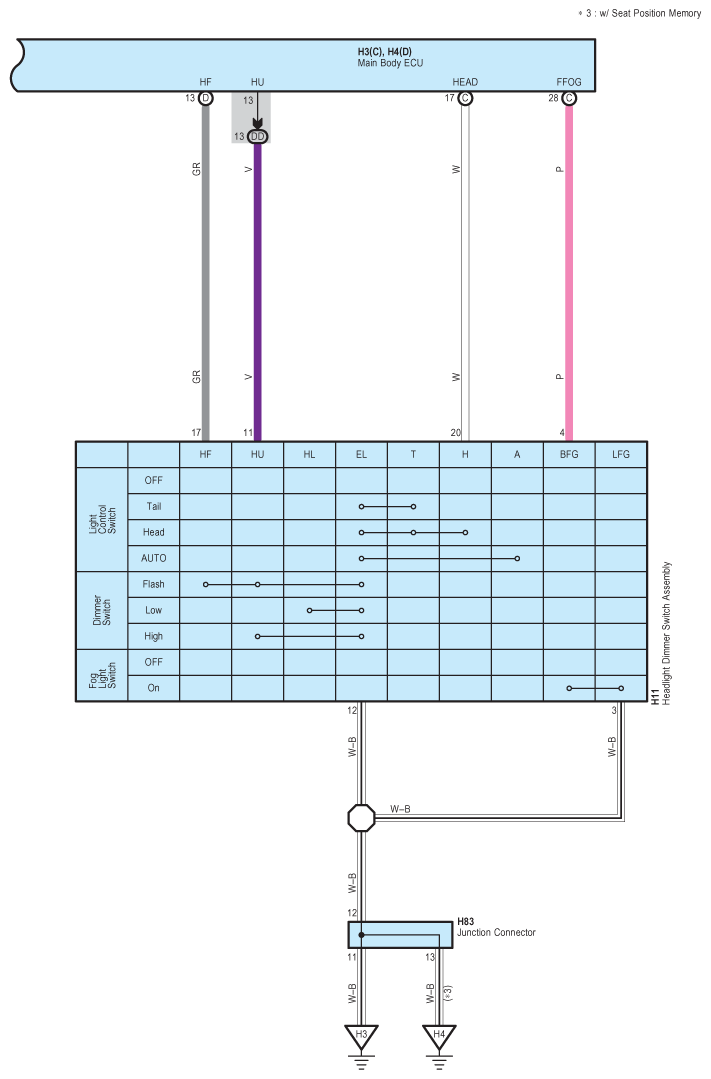

Fig 3: Front Fog Light - Circuit Diagram (3 Of 3)
G07608898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
