OEM System Circuits: Illumination: Notes

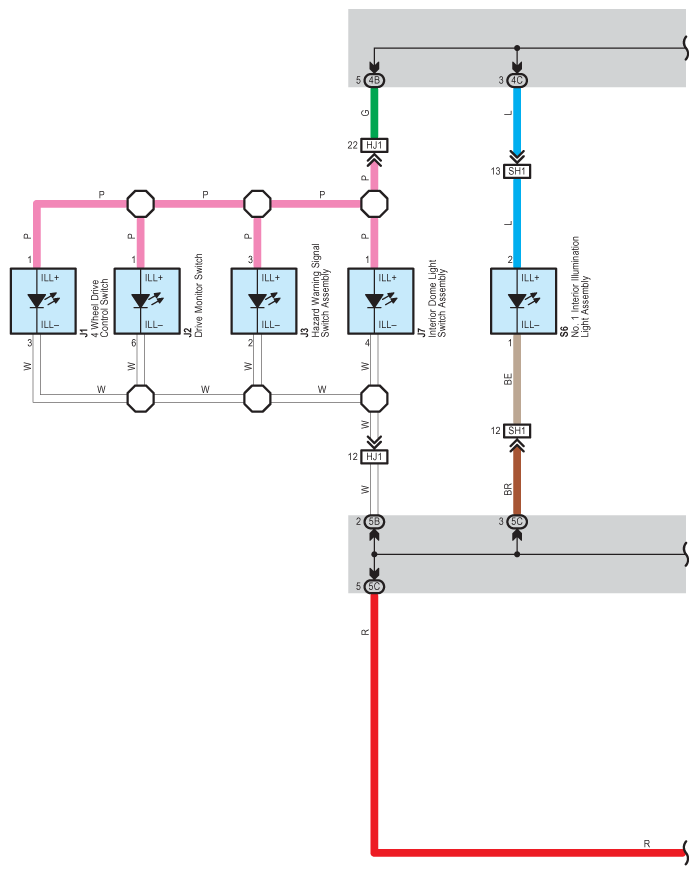

Fig 1: Illumination - Circuit Diagram (1 Of 9)

G07608903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

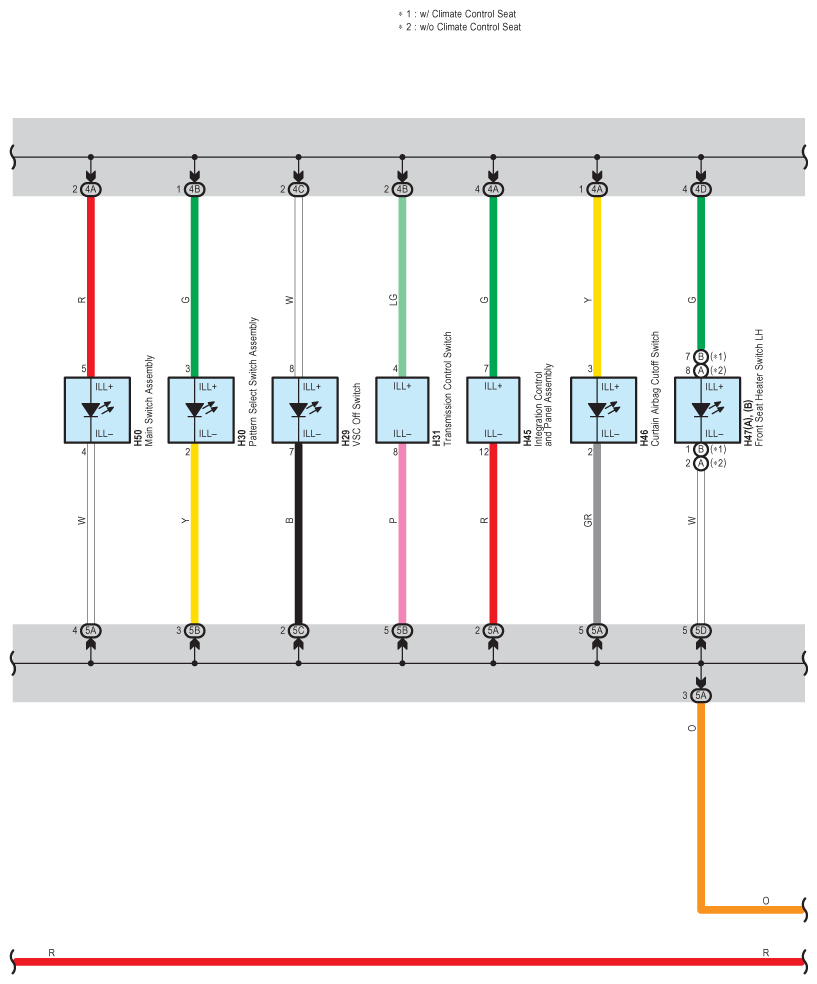

Fig 2: Illumination - Circuit Diagram (2 Of 9)

G07608904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

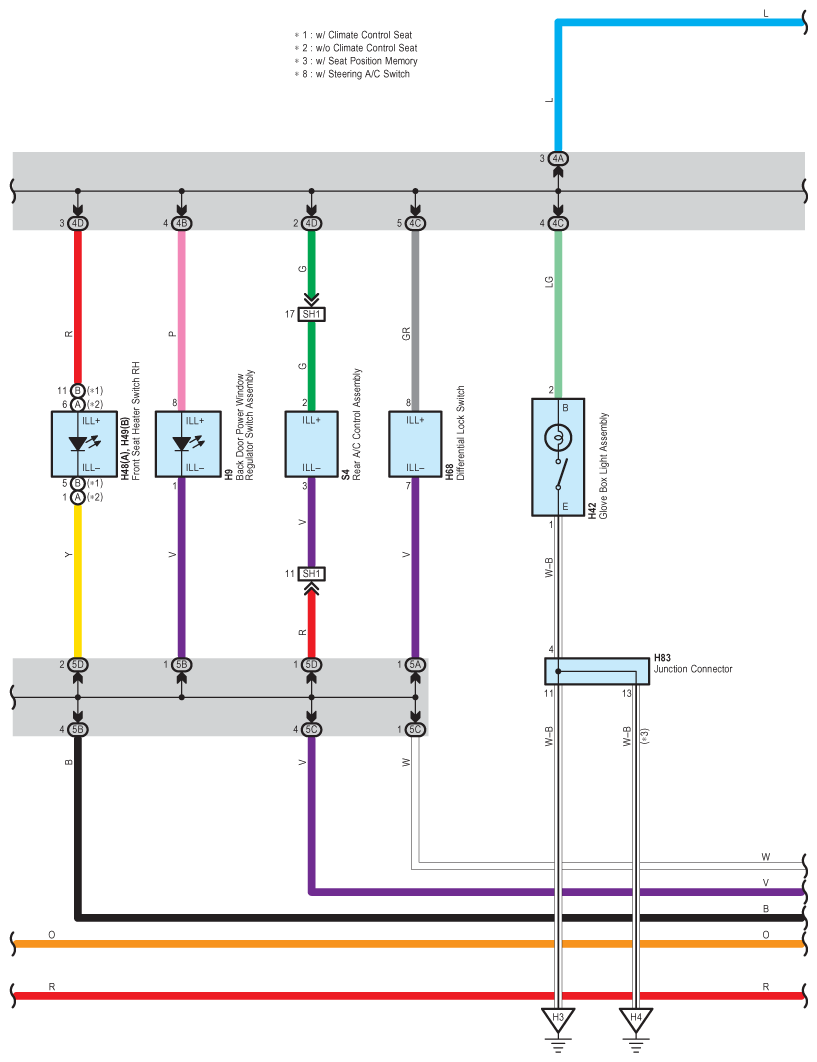

Fig 3: Illumination - Circuit Diagram (3 Of 9)

G07608905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

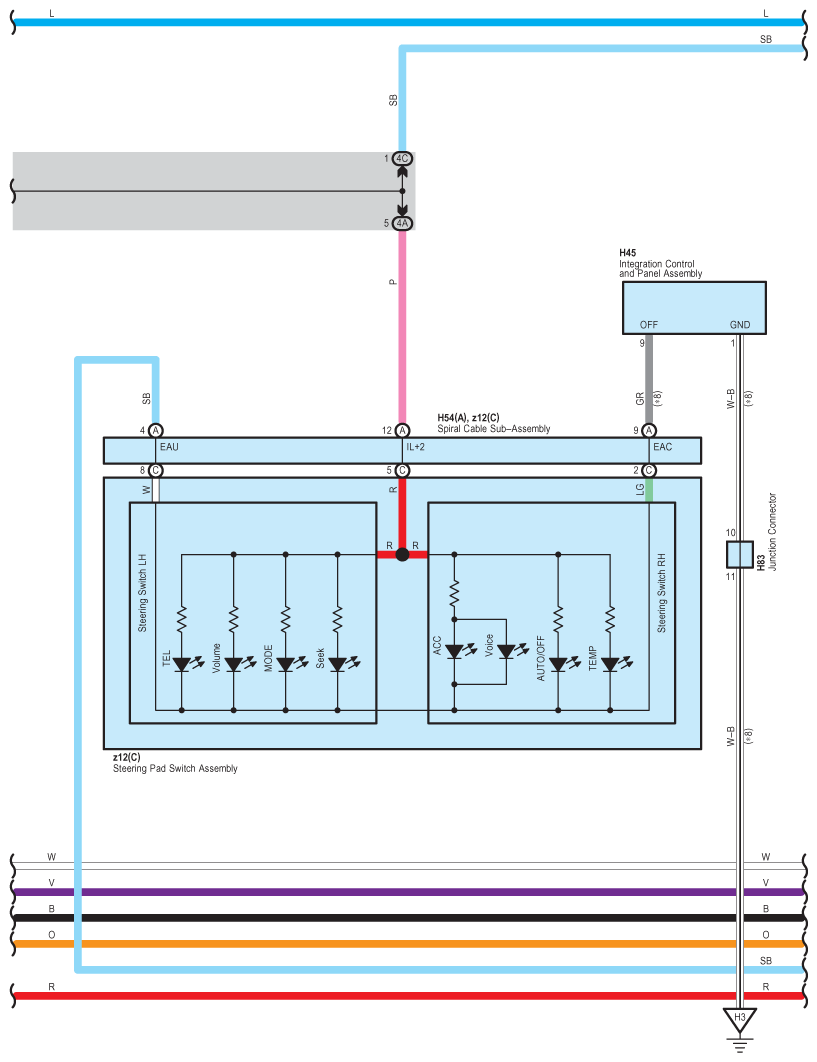

Fig 4: Illumination - Circuit Diagram (4 Of 9)

G07608906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

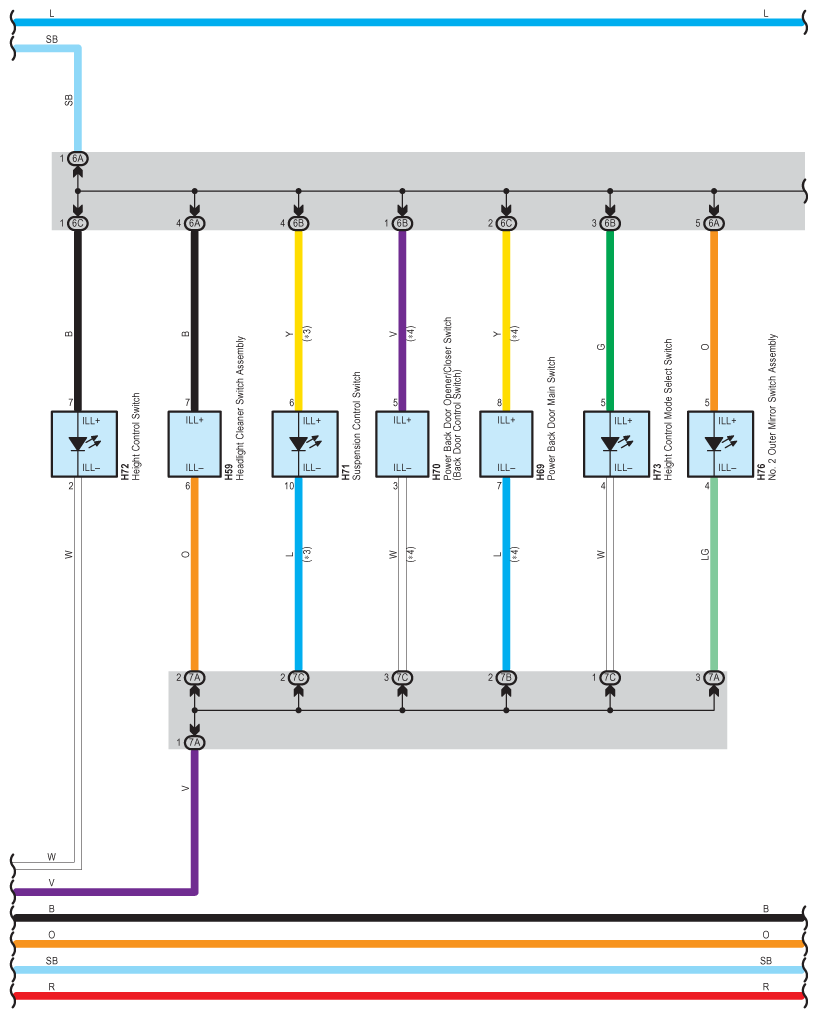

Fig 5: Illumination - Circuit Diagram (5 Of 9)

G07608907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

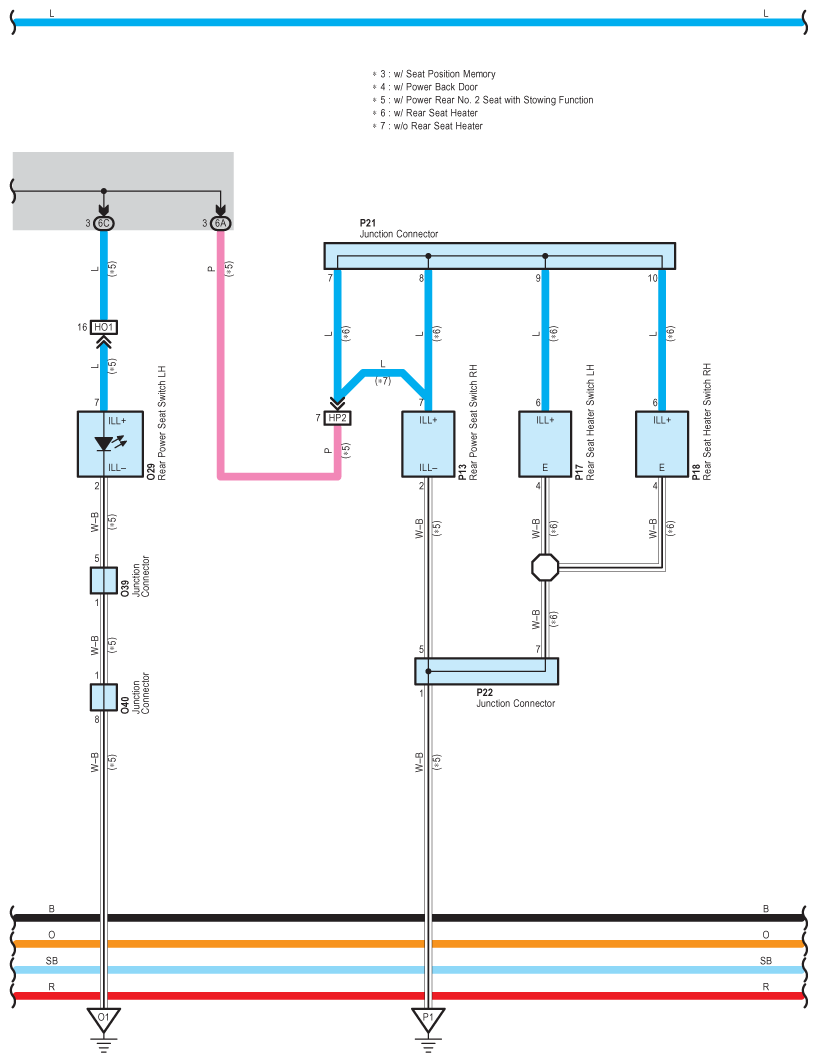

Fig 6: Illumination - Circuit Diagram (6 Of 9)

G07608908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

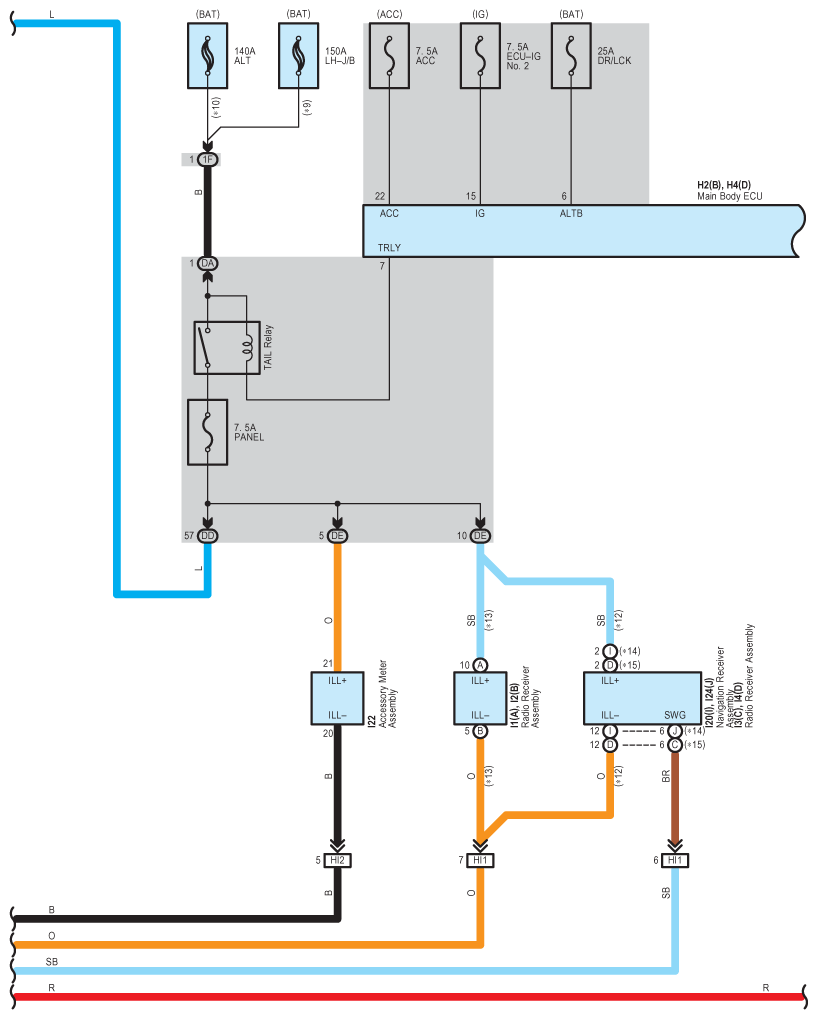

Fig 7: Illumination - Circuit Diagram (7 Of 9)

G07608909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

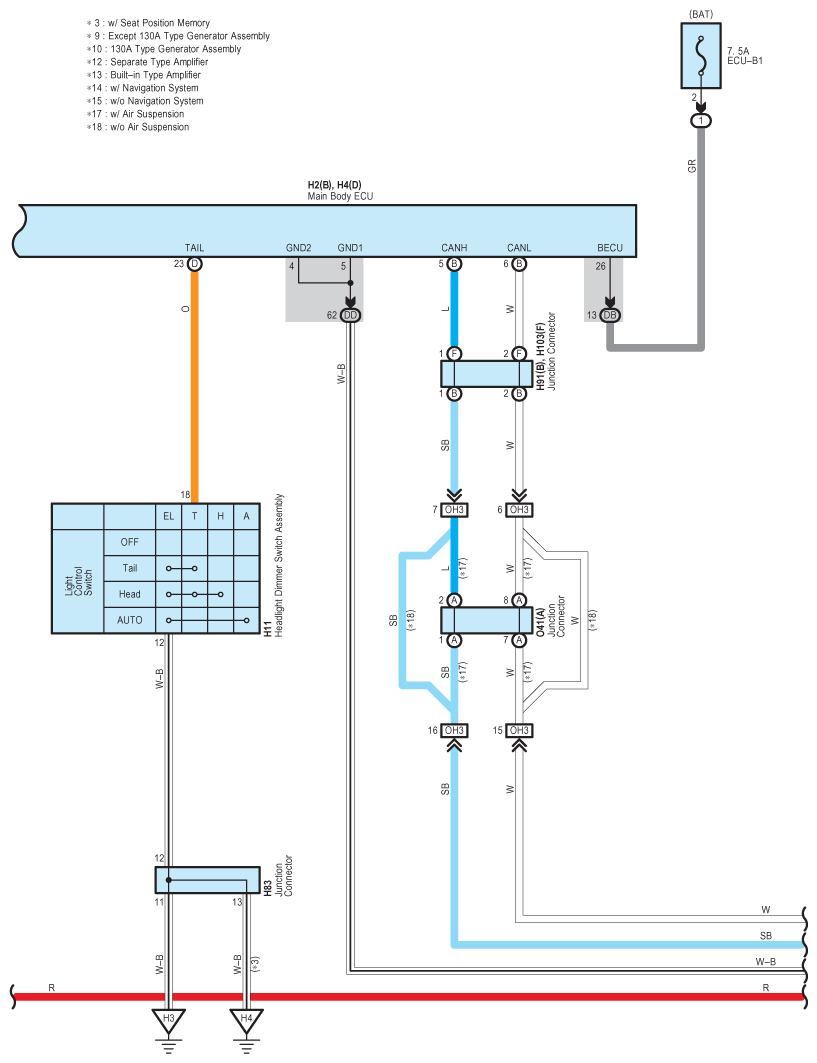

Fig 8: Illumination - Circuit Diagram (8 Of 9)

G07608910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

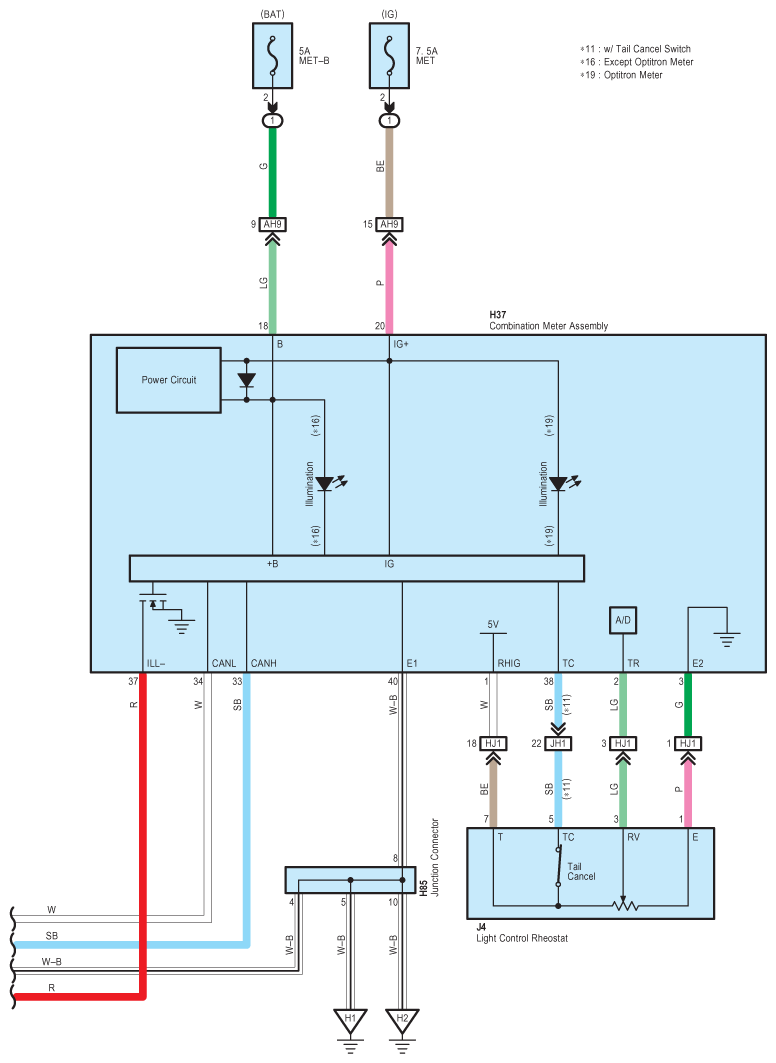

Fig 9: Illumination - Circuit Diagram (9 Of 9)

G07608911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
