Multi Mode 4WD: Notes

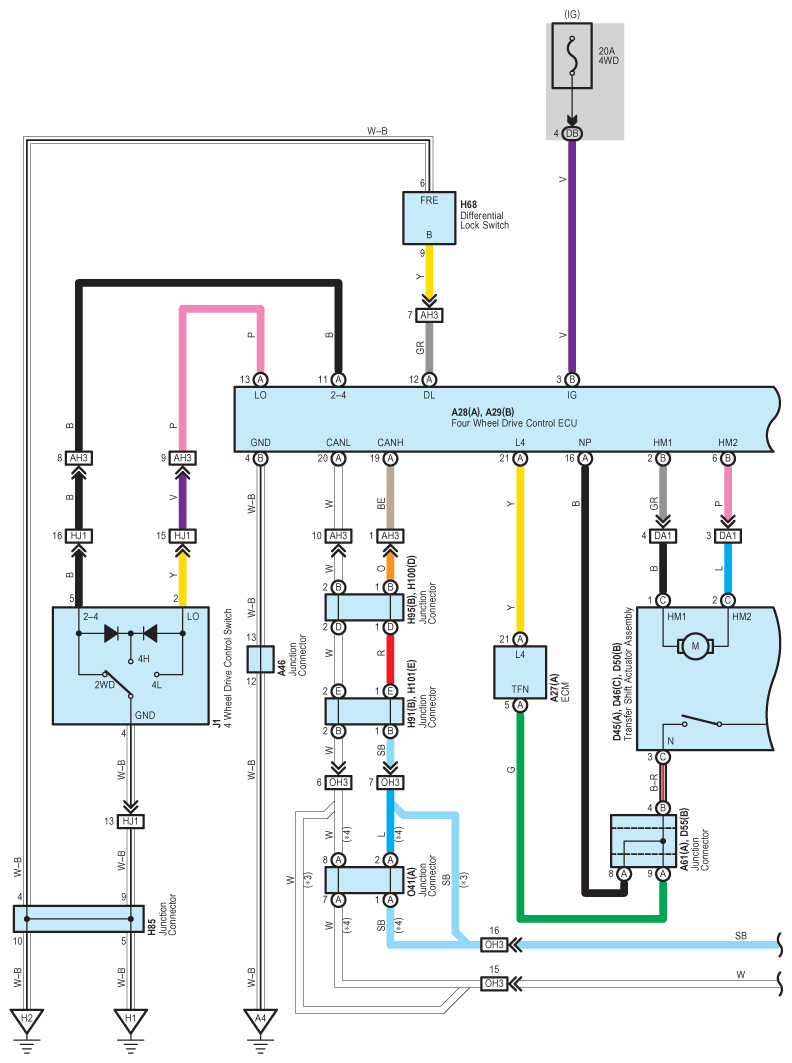

Fig 1: Multi Mode 4Wd - Circuit Diagram (1 Of 3)
G07609011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

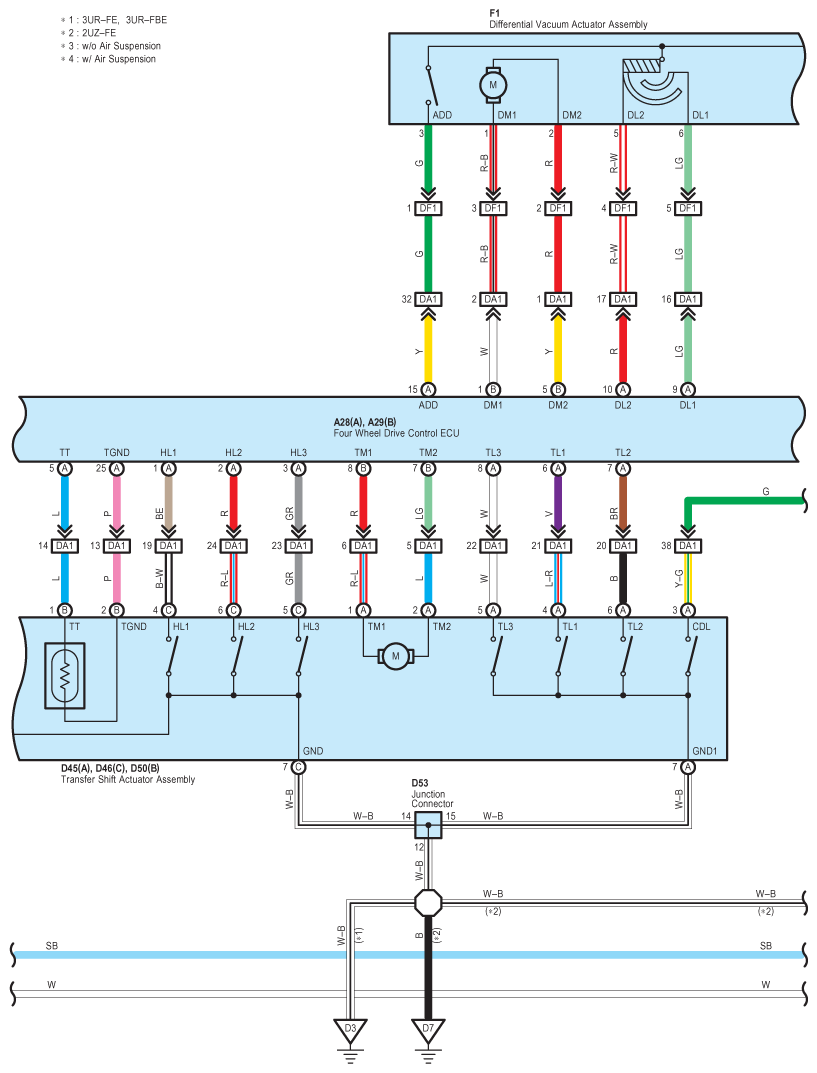

Fig 2: Multi Mode 4Wd - Circuit Diagram (2 Of 3)
G07609012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

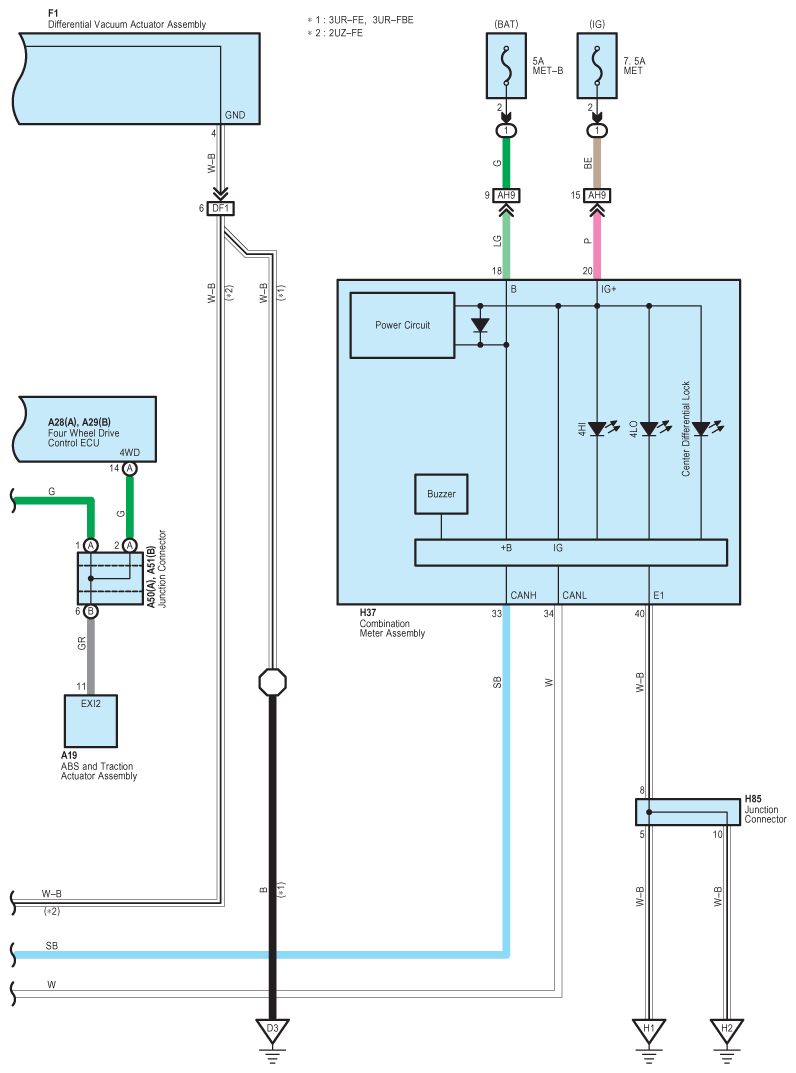

Fig 3: Multi Mode 4Wd - Circuit Diagram (3 Of 3)
G07609013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
