Power Back Door: Notes — 2009 Toyota Sequoia Limited, 5.7 W Service Manual ~ FixVault

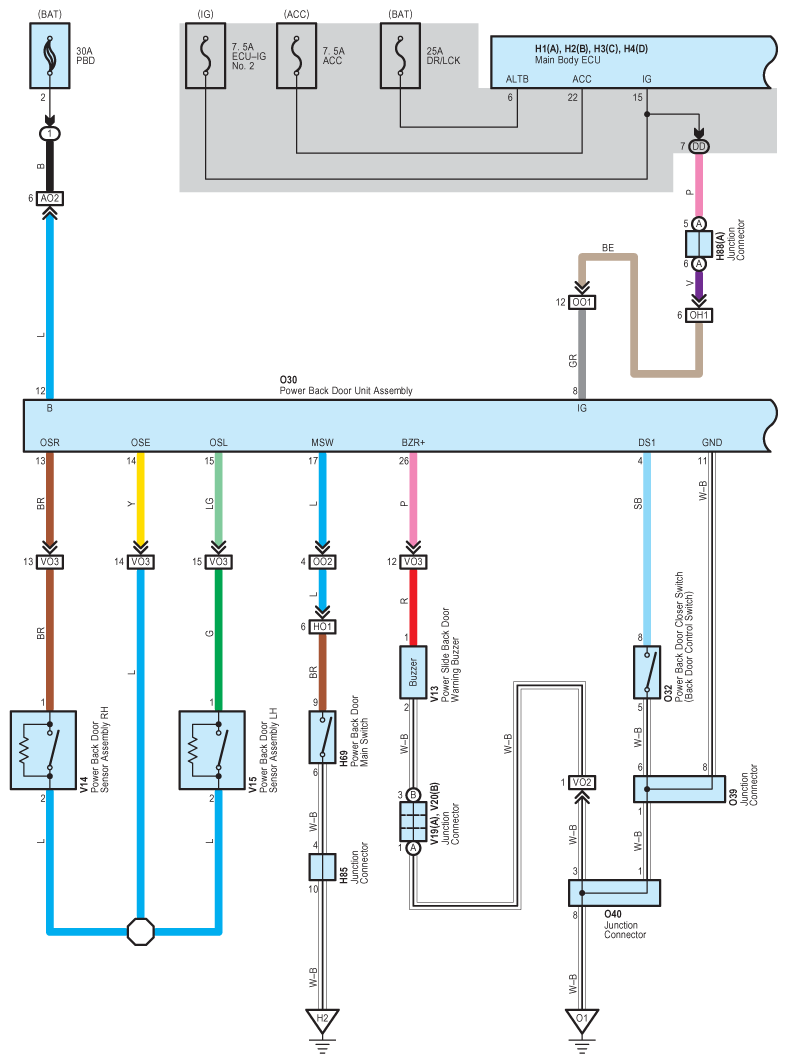

Fig 1: Power Back Door - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

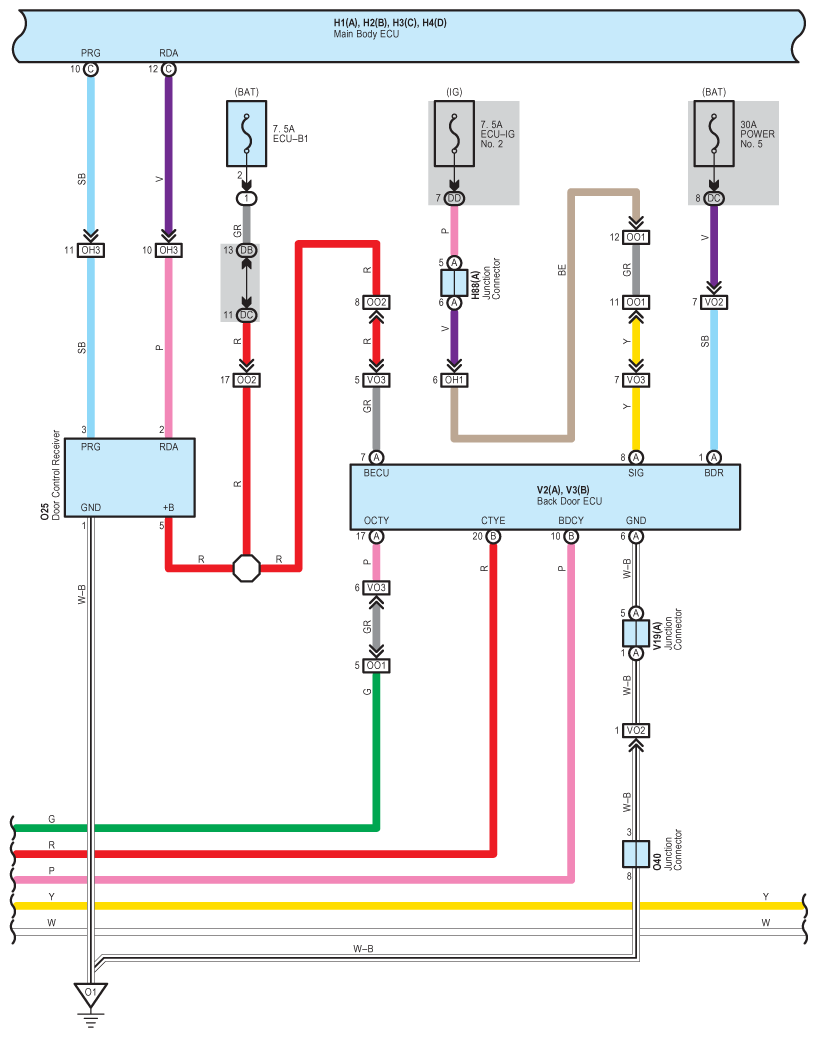

Fig 2: Power Back Door - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

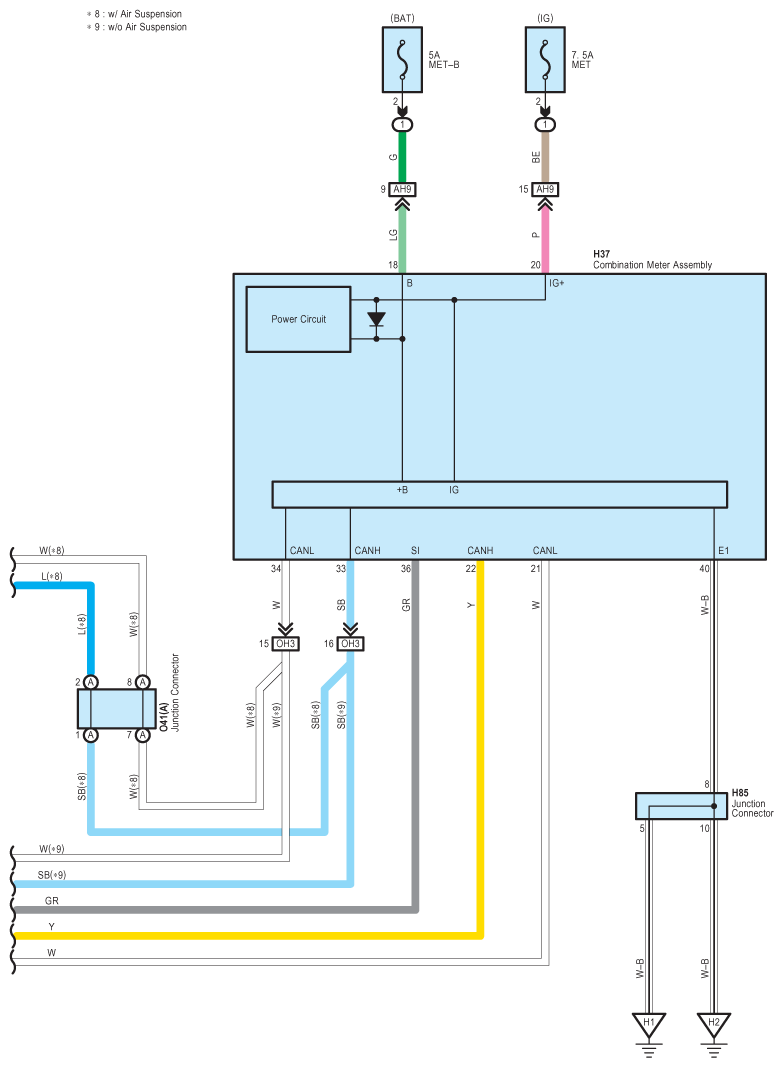

Fig 3: Power Back Door - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

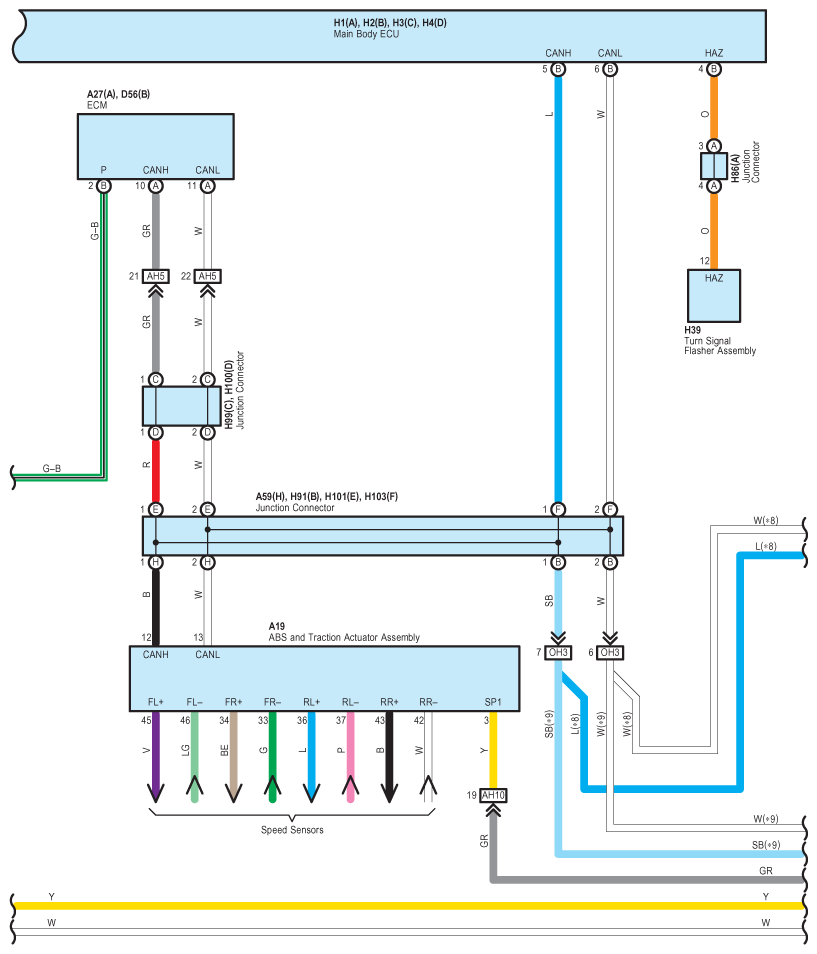

Fig 4: Power Back Door - Circuit Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

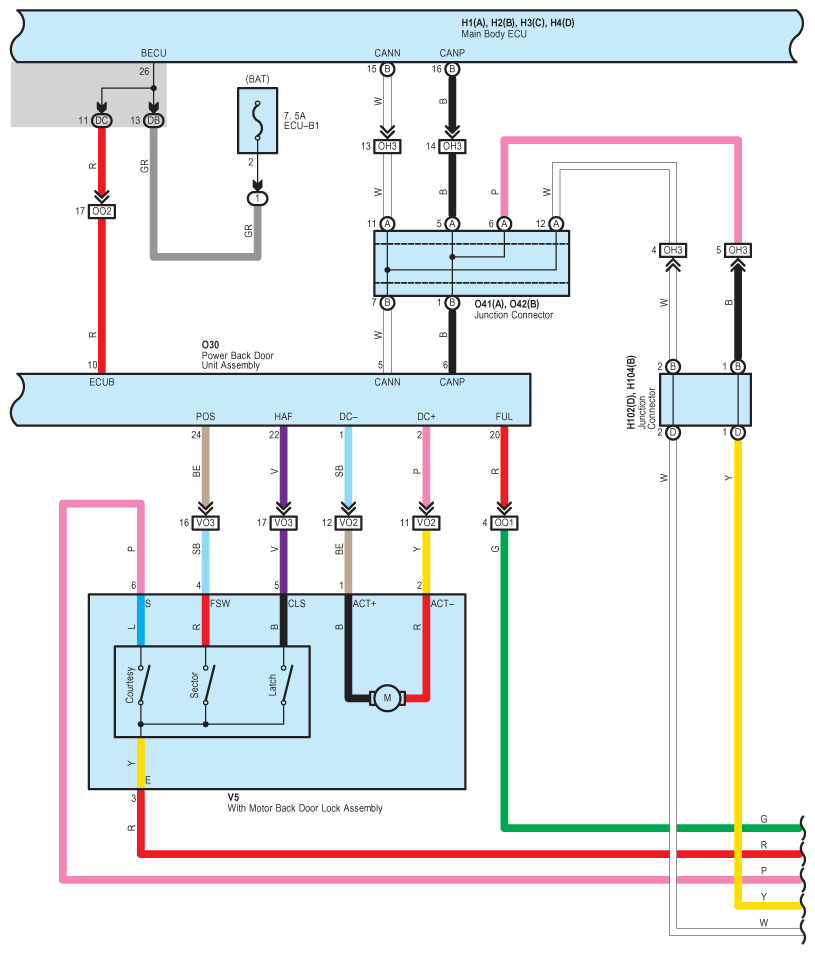

Fig 5: Power Back Door - Circuit Diagram (5 Of 6)

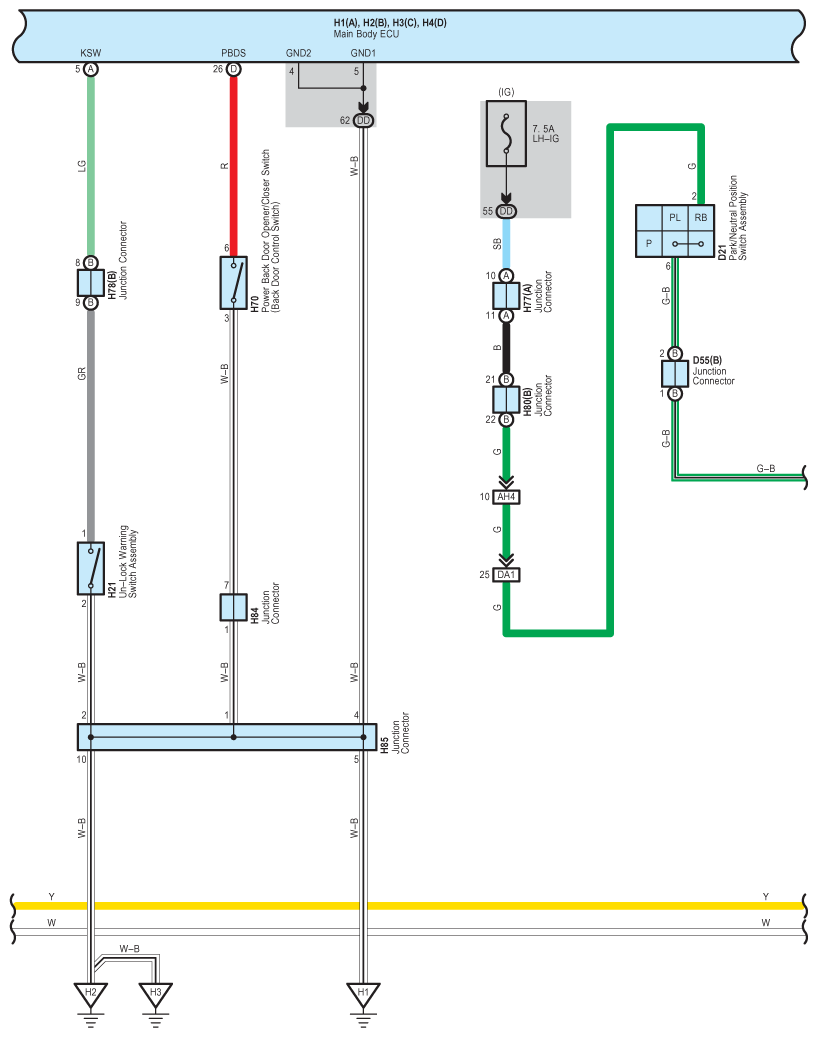

Fig 6: Power Back Door - Circuit Diagram (6 Of 6)
