Home › Toyota › 2009 › Sequoia Limited, 5.7 W › Repair and Diagnosis › Transmission › Transfer Case › 4WD Control Switch › Components

4WD Control Switch: Components

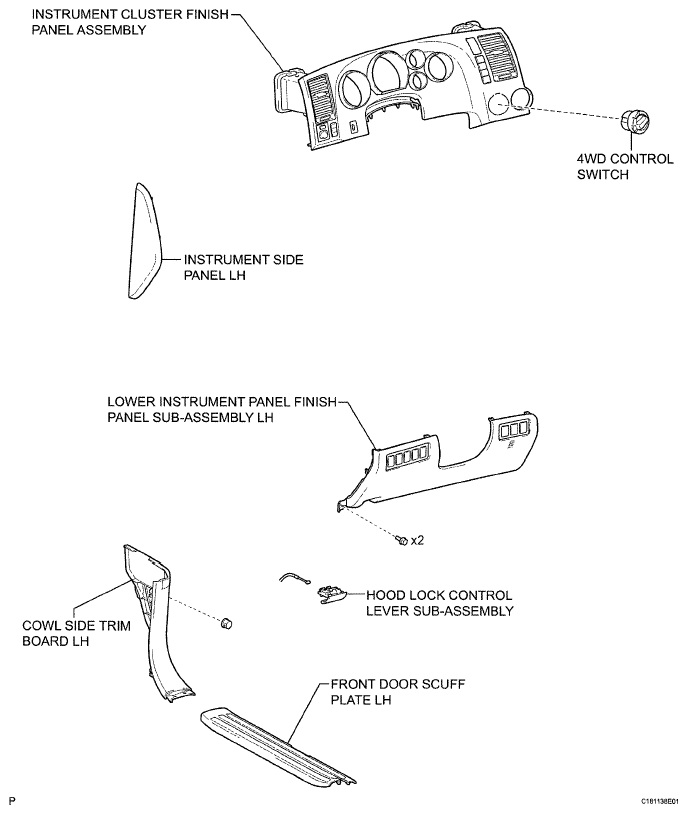

Fig 1: Identifying 4WD Control Switch Components

G05648733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
