Transfer Assembly: Components

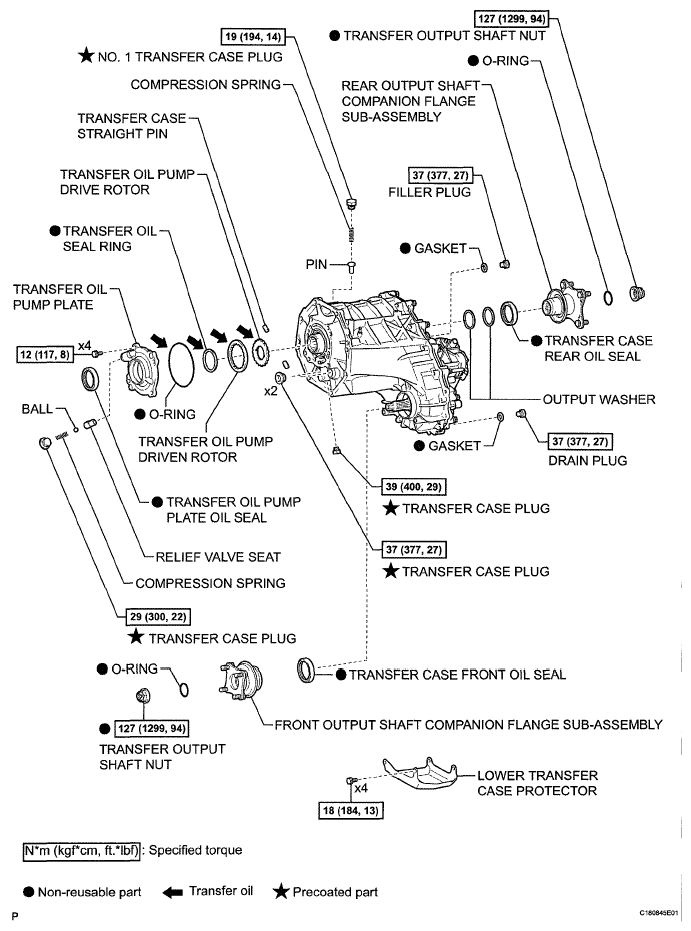

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

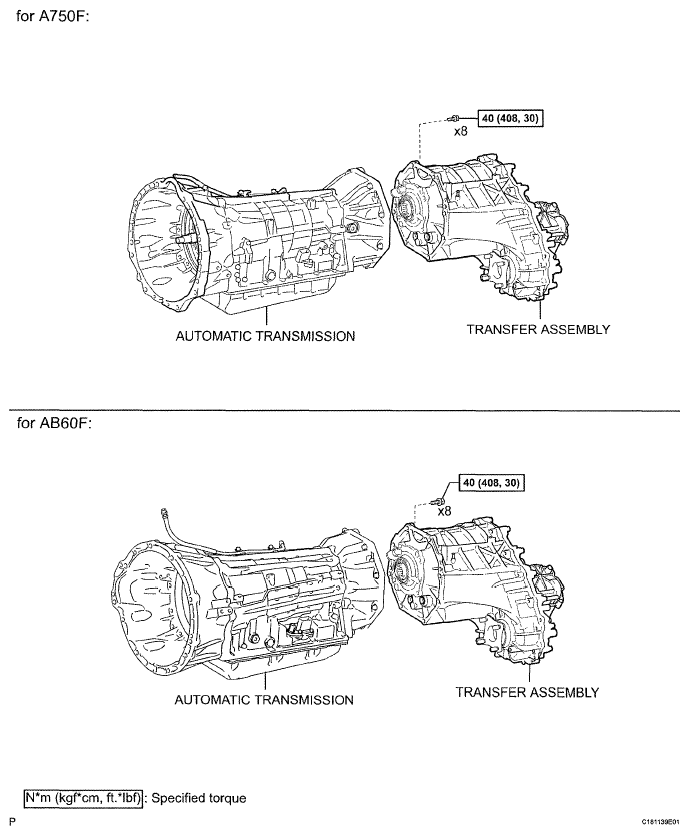

Fig 2: Identifying Transfer Assembly Replacement Components With Torque Specification (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

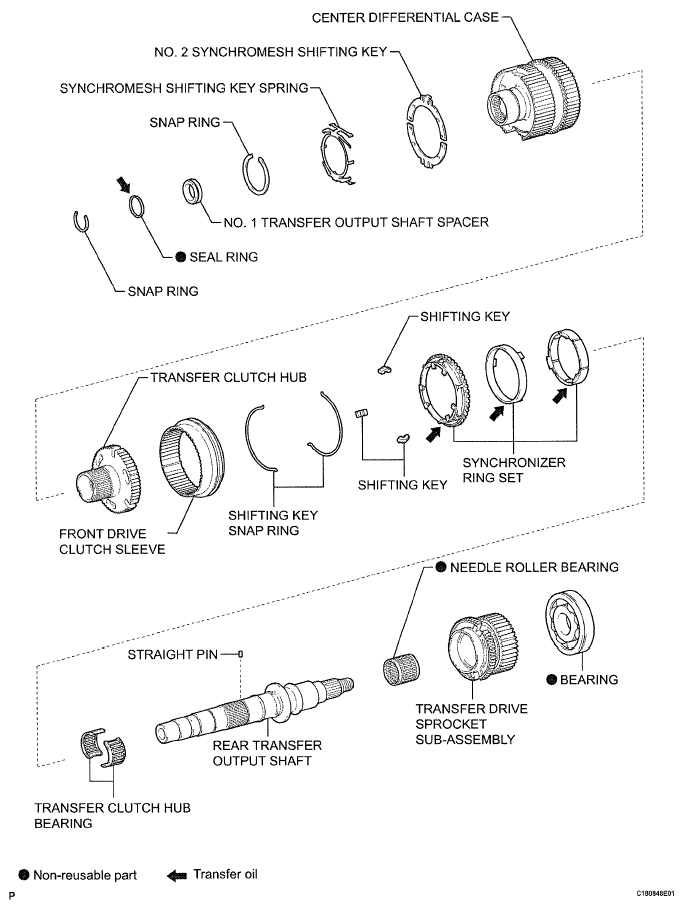

Fig 3: Identifying Transfer Assembly Replacement Components With Torque Specification (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

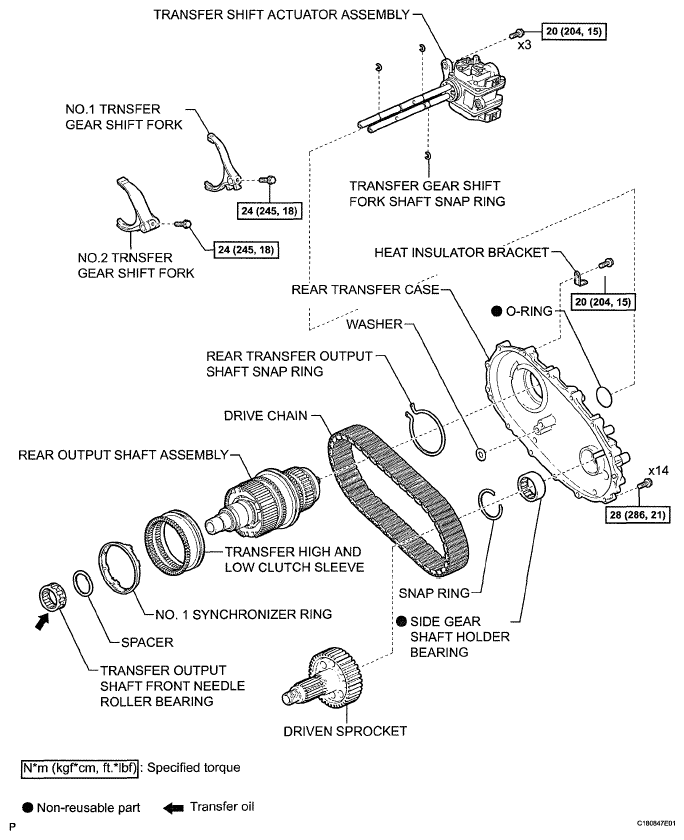

Fig 4: Identifying Transfer Assembly Replacement Components With Torque Specification (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

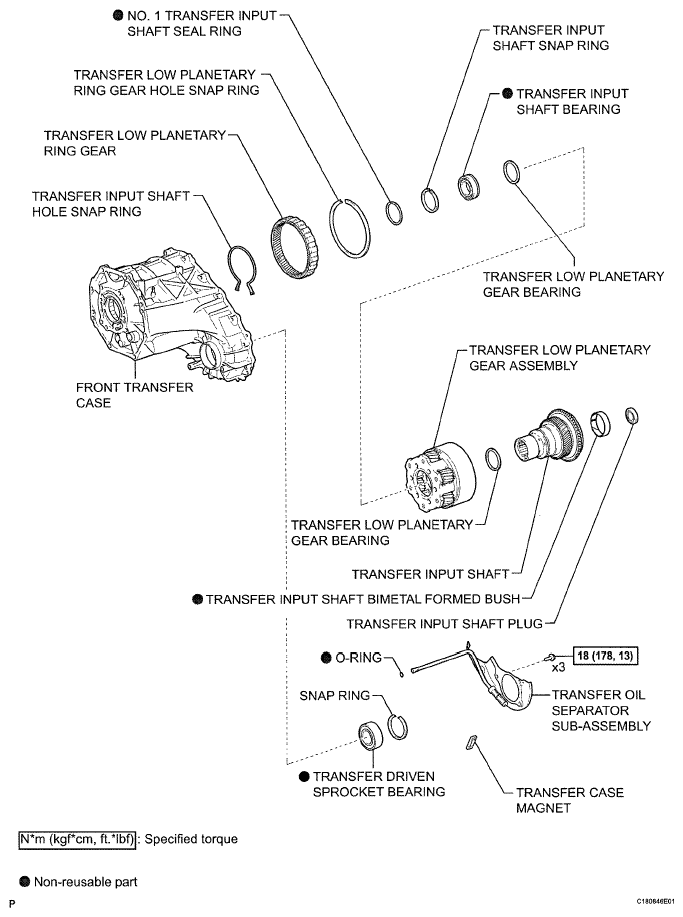

Fig 5: Identifying Transfer Assembly Replacement Components With Torque Specification (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
