Sequoia Platinum, 5.7 W
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control/Dynamic Control System
›
Vehicle Stability Control System
›
DTC C1340/47 Center Differential Lock Circuit
›
Wiring Diagram
DTC C1340/47 Center Differential Lock Circuit: Wiring Diagram

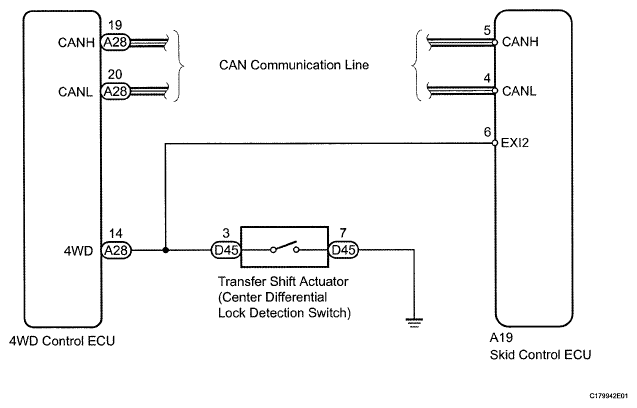

Fig 1: Skid Control ECU And 4WD Control ECU - Wiring Diagram
