Slip Indicator Light Remains ON: Wiring Diagram

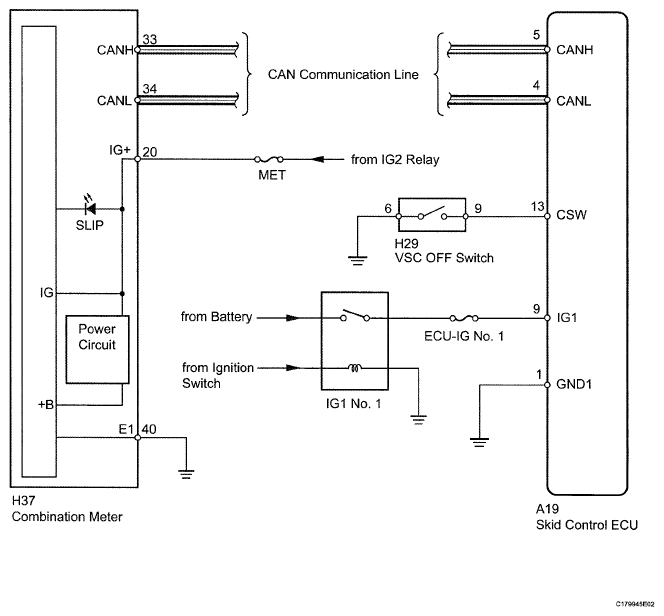

Fig 1: Skid Control ECU And Combination Meter - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
