System Diagram

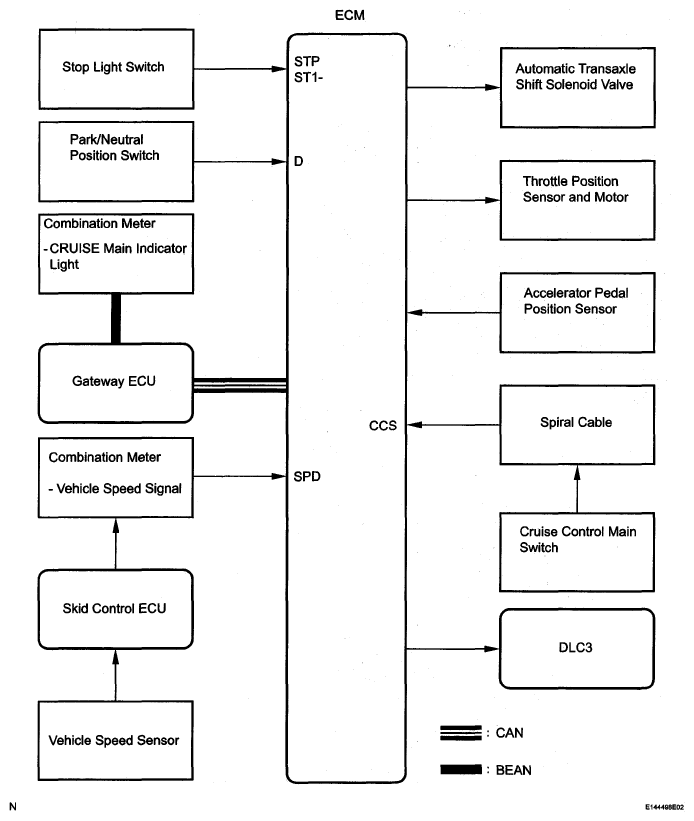

Fig 1: Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION CHART

Sender	Receiver	Signal	Line
ECM	Gateway ECU	CRUISE main indicator operation signal	CAN
Gateway ECU	Combination meter	CRUISE main indicator operation signal	BEAN
