Inspection Procedure

  1. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the radio receiver connectors.

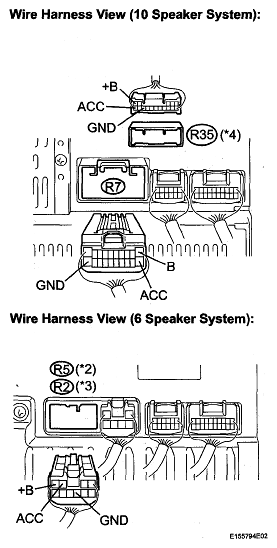

      2. Fig 1: Identifying Radio Receiver Connector Terminals
      G05676489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      GND - Body ground Always Below 1 Ω
    3. Measure the voltage according to the values in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      +B - GND ((2)) ((3)) ((4)) Always 10 to 14 V
      B - GND ((1)) Always 10 to 14 V
      ACC - GND Ignition switch ACC 10 to 14 V
      (1) 10 Speaker System
      (2) 6 Speaker with Rear Seat Entertainment System
      (3) 6 Speaker without Rear Seat Entertainment System
      (4) for "Bluetooth" handsfree Function

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
