Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

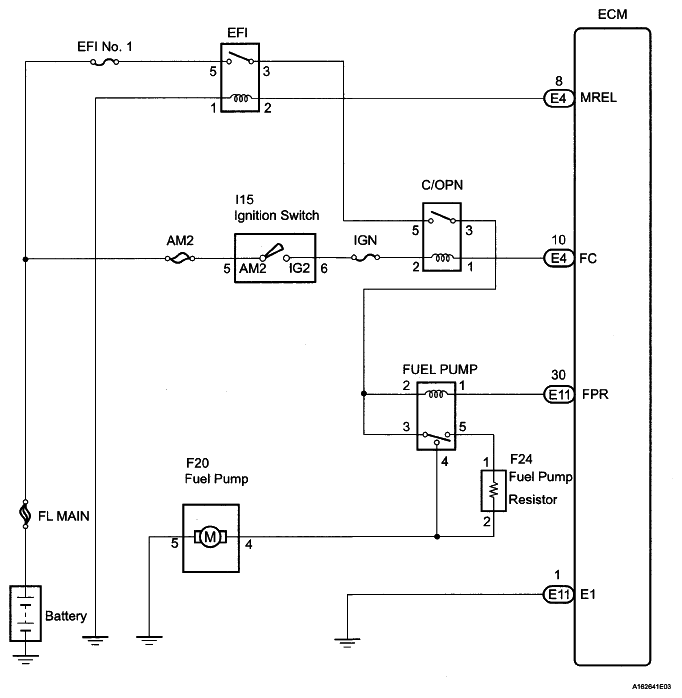

Fig 1: Ignition Switch And Fuel Pump - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
