Engine Control System - System & Component Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
VVT Sensor
›
Components
VVT Sensor: Components

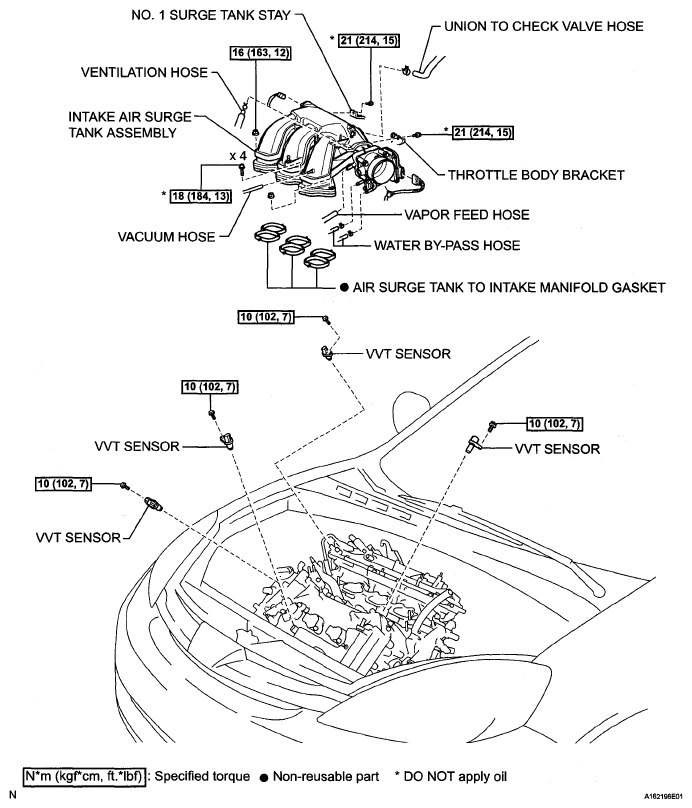

Fig 1: Knock Sensor Replacement Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: VVT Sensor Replacement Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: VVT Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
