System Diagram

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

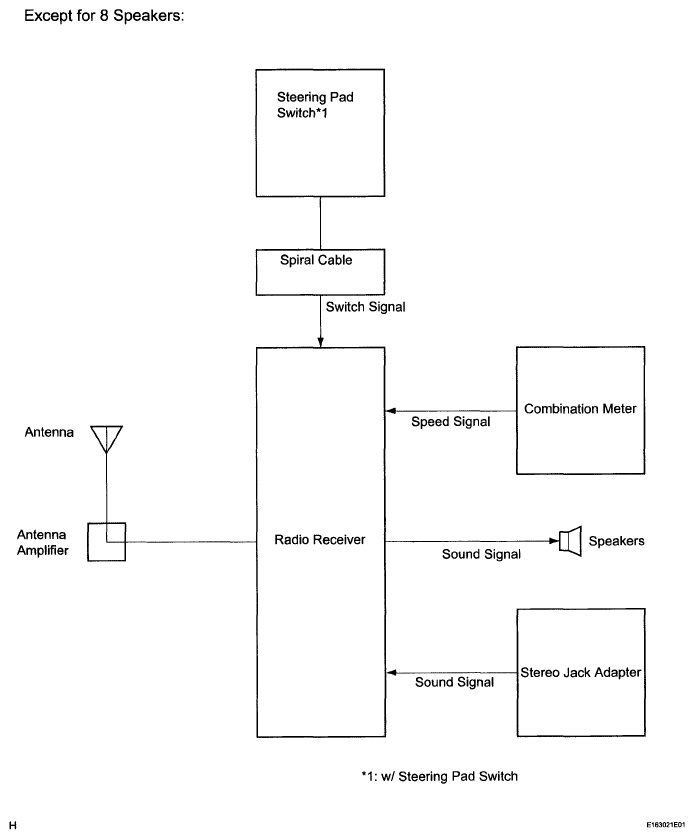

Fig 1: Audio And Visual System Diagram (Except For 8 Speakers)
G06010444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

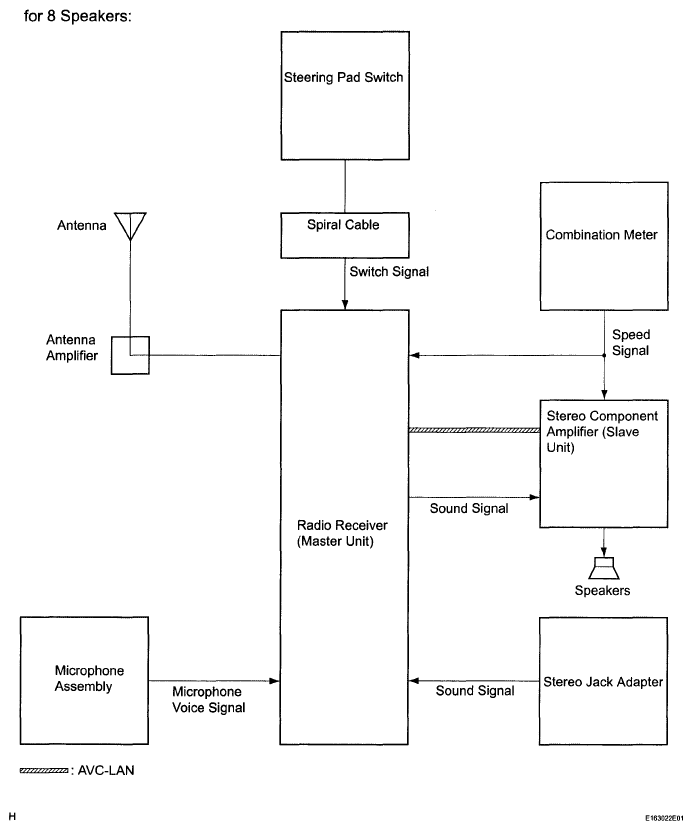

Fig 2: Audio And Visual System Diagram (For 8 Speakers)
G06010445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
