ABS (w/o VSC): Notes

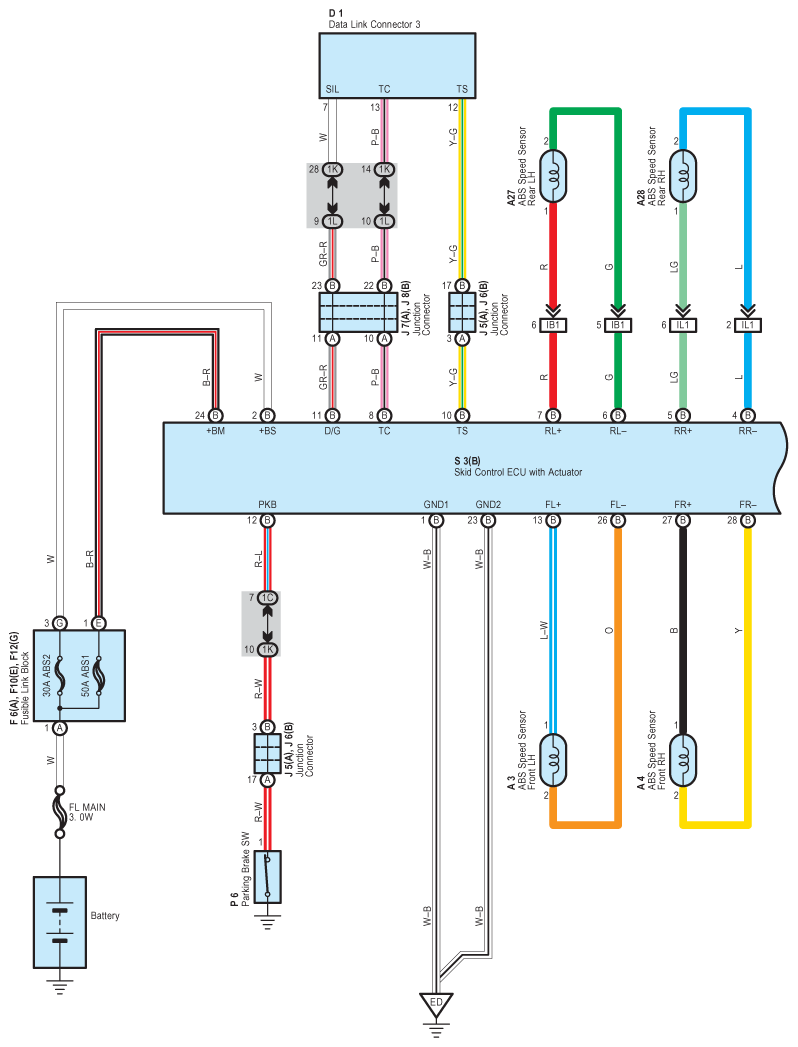

Fig 1: ABS (W/O VSC) - Circuit Diagram (1 Of 3)
G07609487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

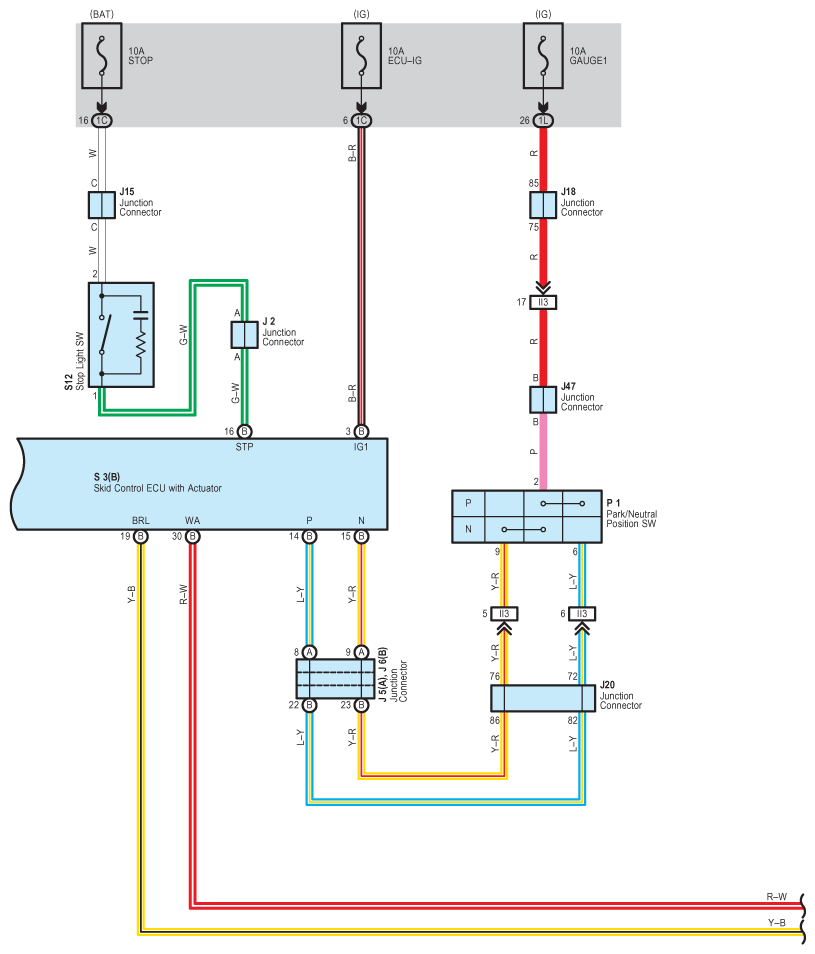

Fig 2: ABS (W/O VSC) - Circuit Diagram (2 Of 3)
G07609488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

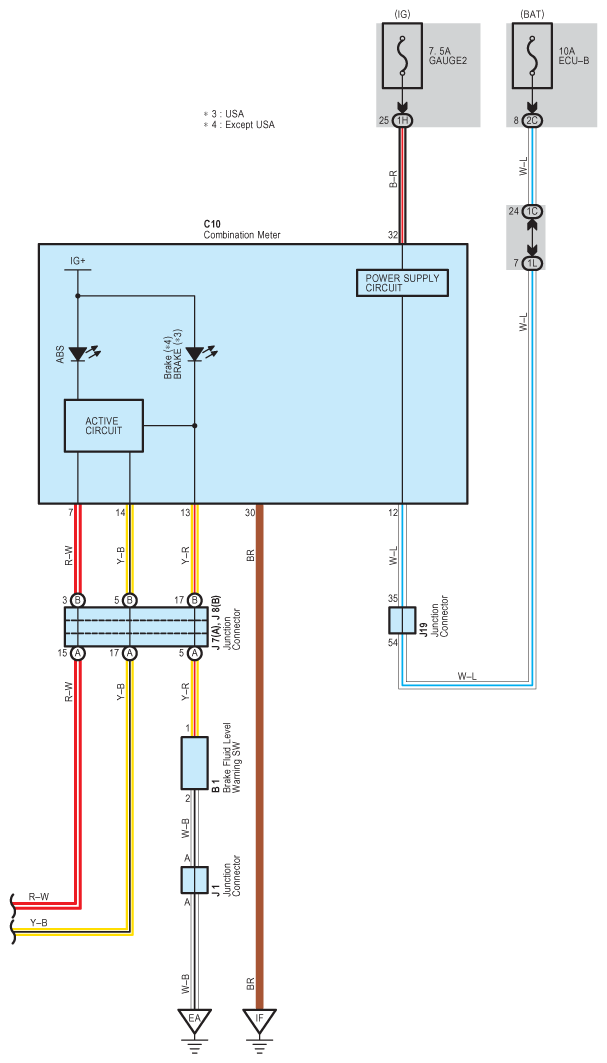

Fig 3: ABS (W/O VSC) - Circuit Diagram (3 Of 3)
G07609489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
