Audio System (10 Speaker w/o Navigation System): Notes

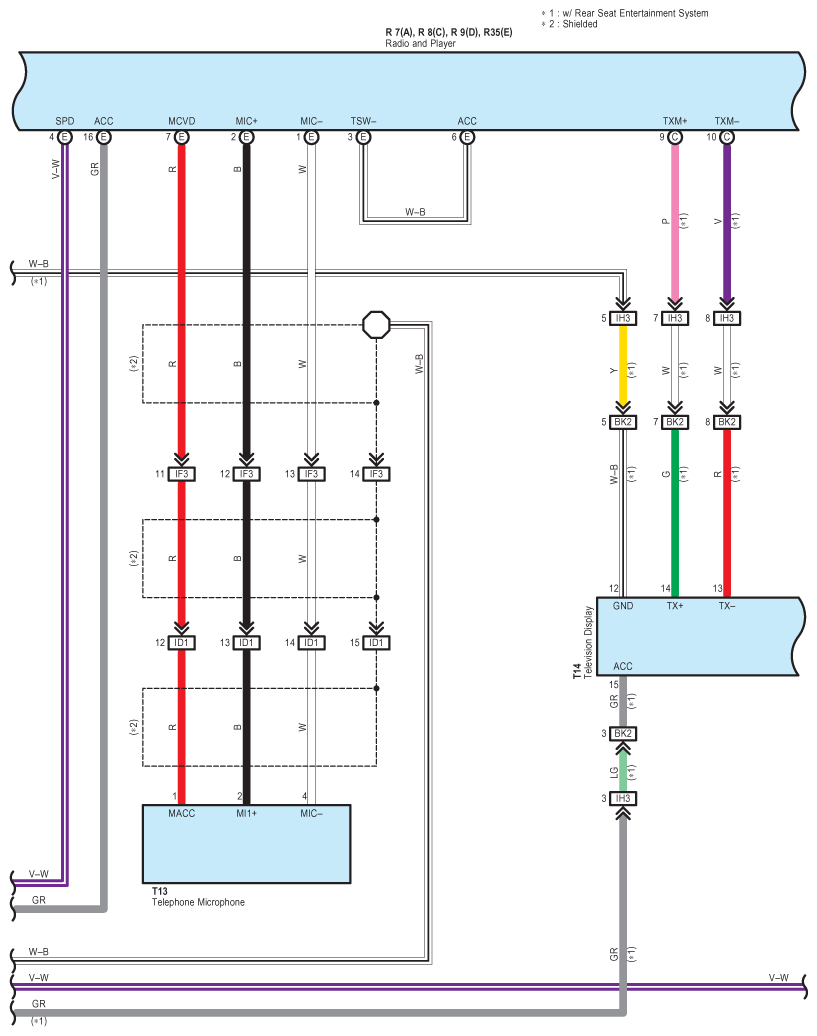

Fig 1: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

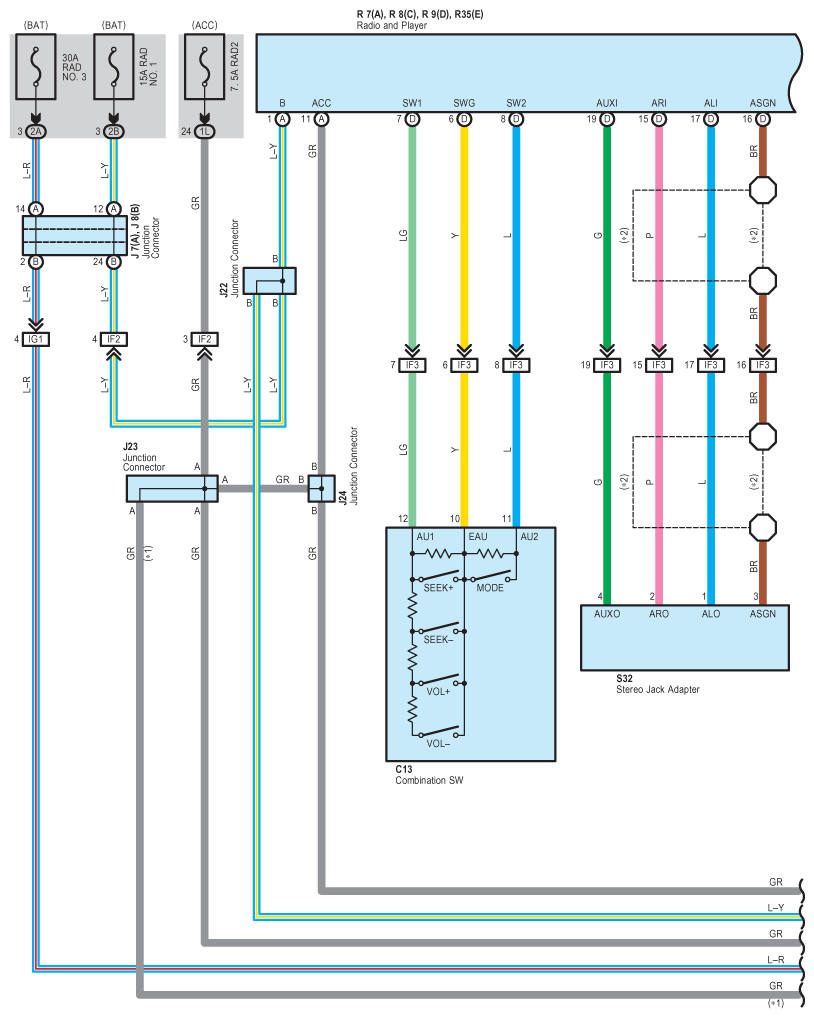

Fig 2: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

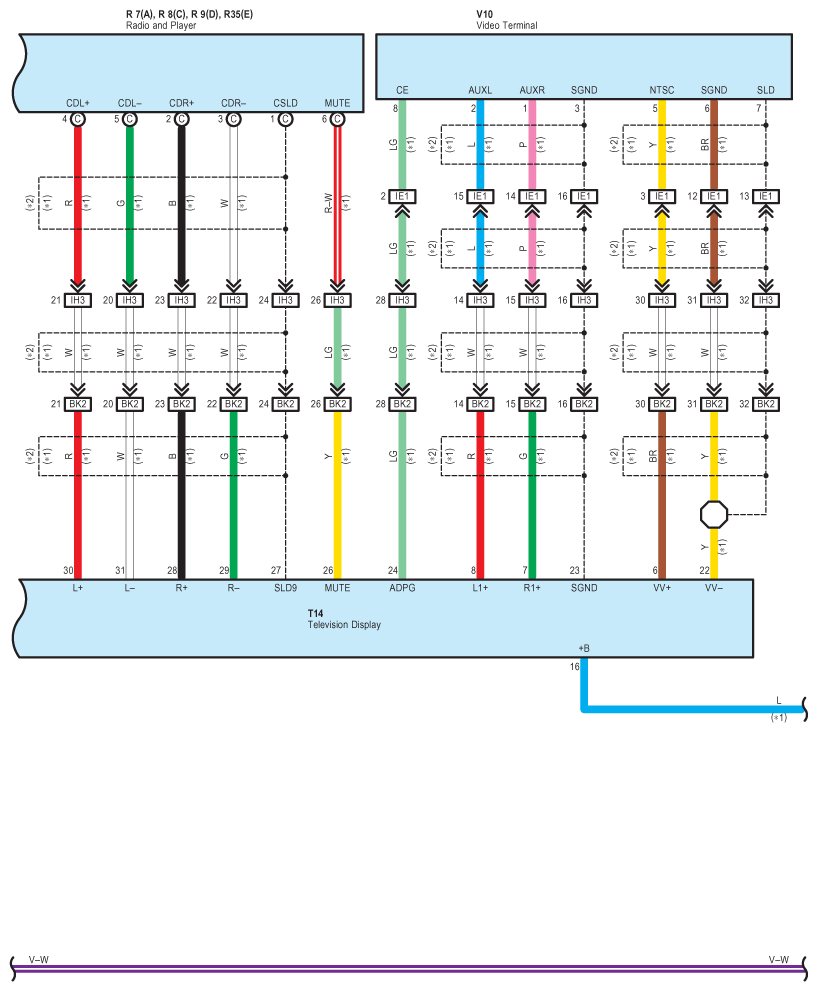

Fig 3: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

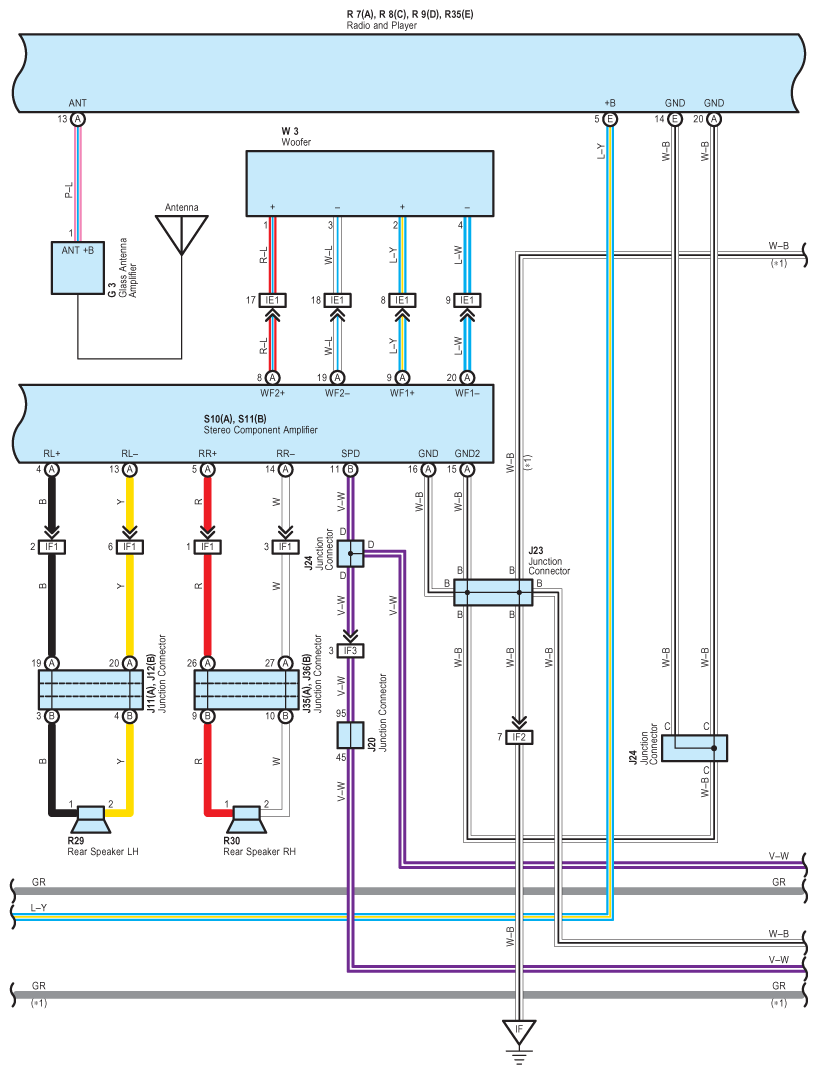

Fig 4: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (4 Of 6)

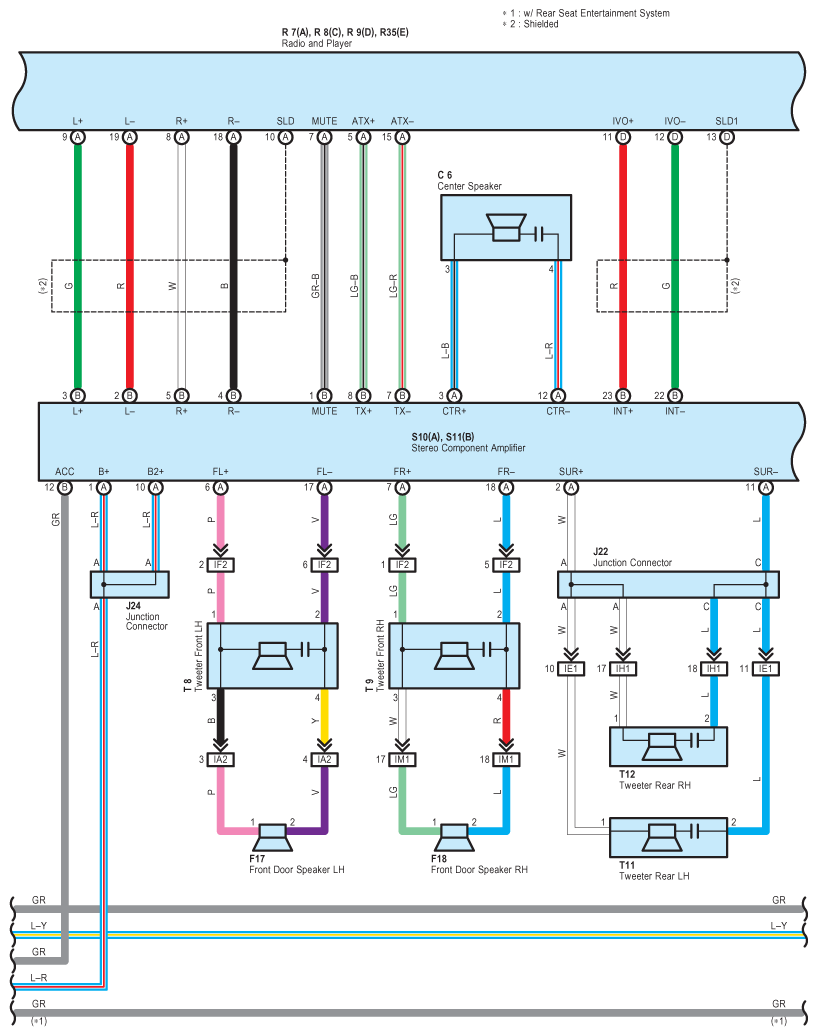

Fig 5: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (5 Of 6)

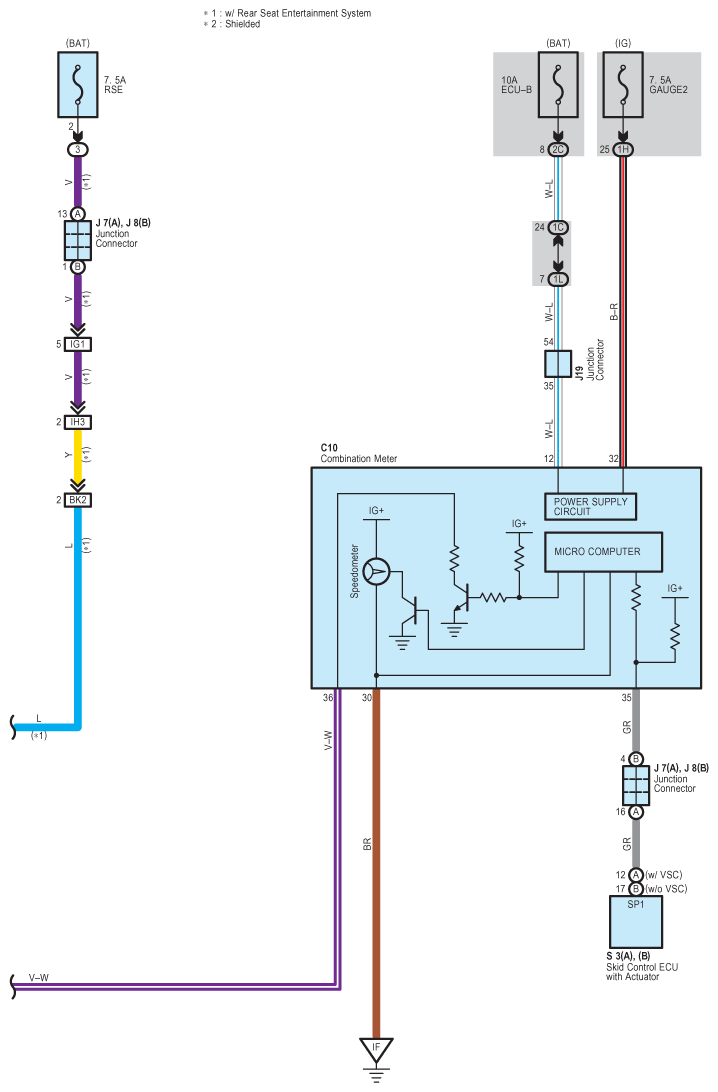

Fig 6: Audio System (10 Speaker W/O Navigation System) - Circuit Diagram (6 Of 6)
