Cooling Fan: Notes

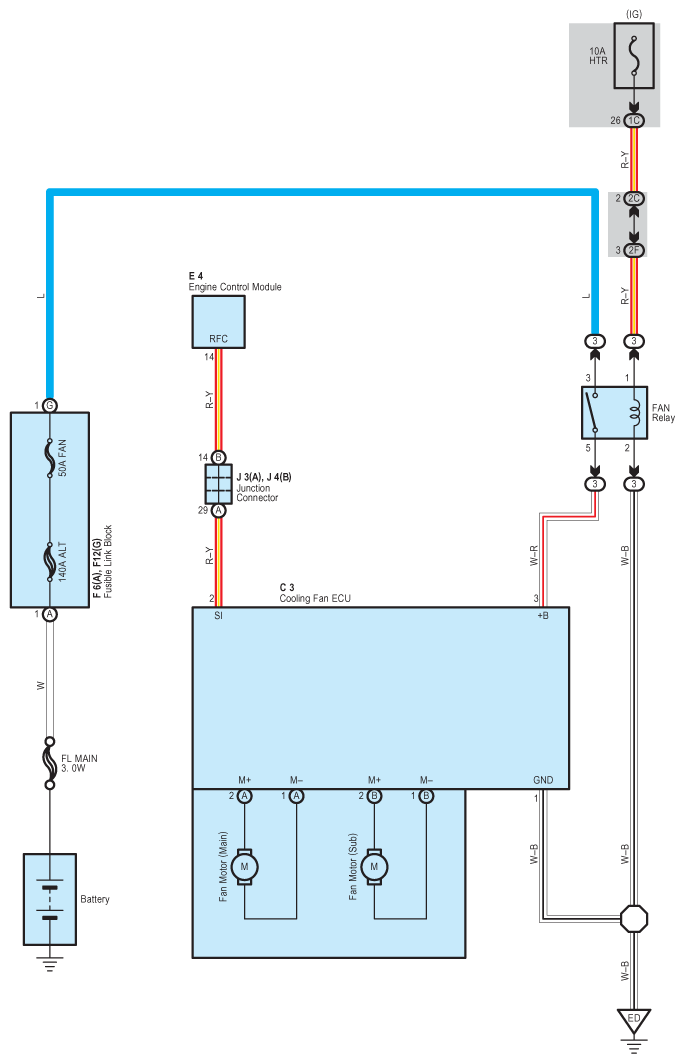

Fig 1: Cooling Fan - Circuit Diagram

G07609554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
