Front Window Deicer and Rear Window Defogger
›
Notes
Front Window Deicer and Rear Window Defogger: Notes

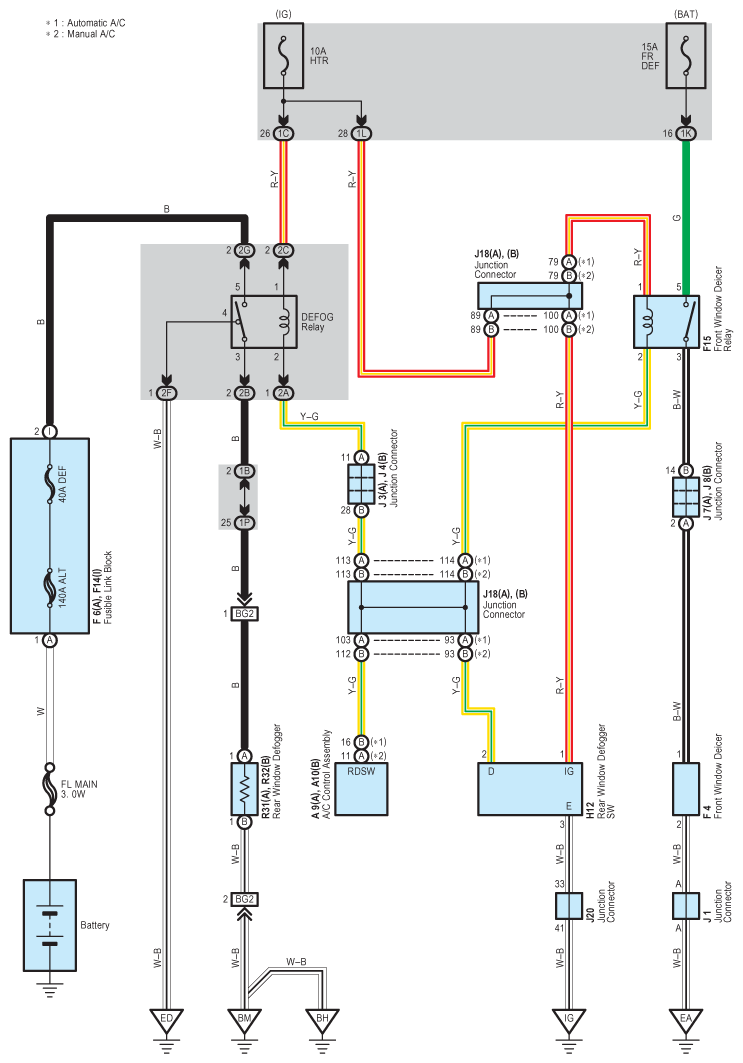

Fig 1: Front Window Deicer And Rear Window Defogger - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
